Automatic Systems BL40 User Manual

p 34/58
Technical Manual NAM-BL4x-MT-EN-C
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.

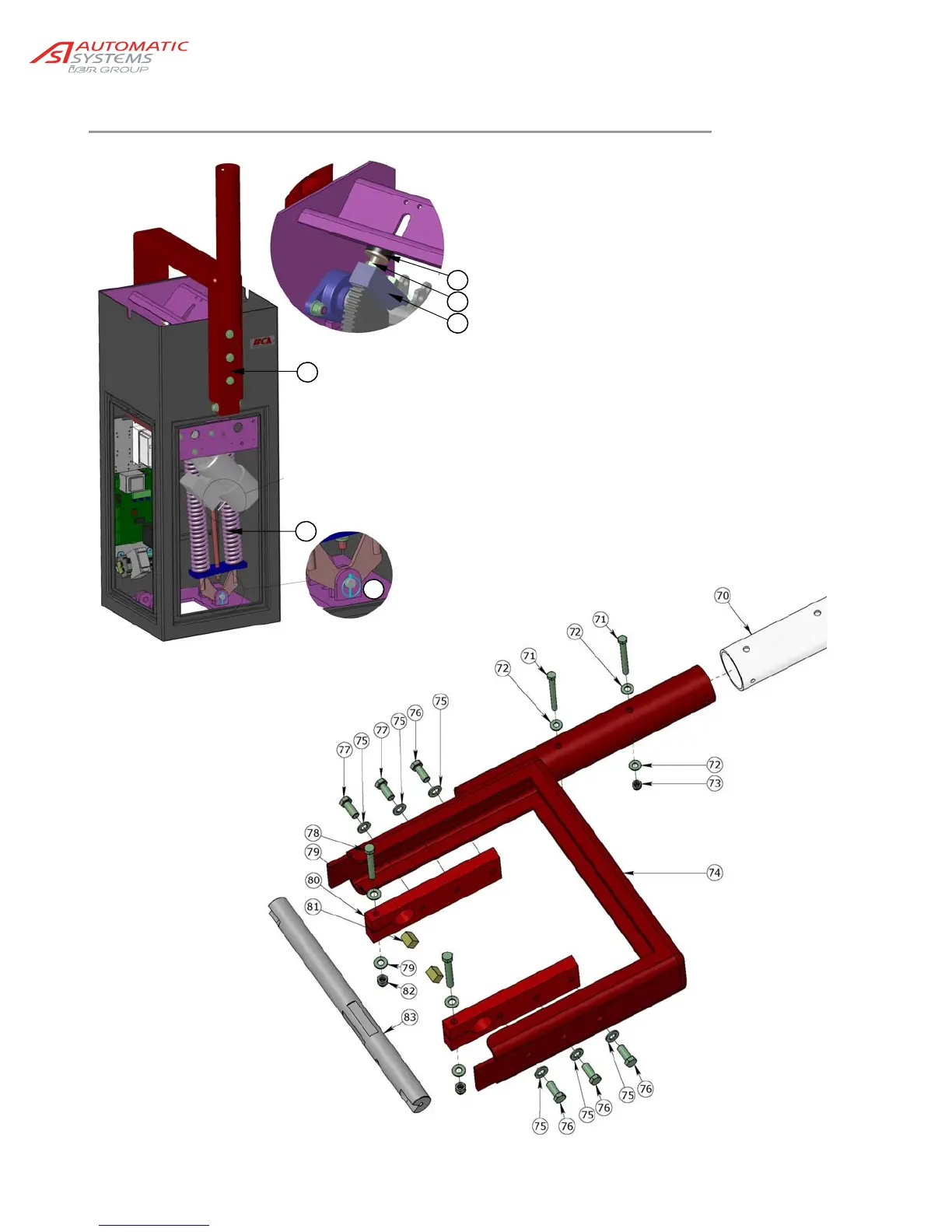

4.6. Assembly of the arm with folding fence for BL46
10 Upper bumper
13 Hub
30 Balancing spring
54 Nut
57 Pin
70 Round aluminium arm, Ø100
71 H M C12x120 stainless steel screw (tighten to
80 Nm)
72 M 12 stainless steel flat washer
73 Nylstop M12 stainless steel nut
74 DAKOTA arm stirrup
75 M 16 stainless steel flat washer
76 H M16x40 stainless steel screw (tighten to 190
Nm)
77 H M16x40 stainless steel screw (standard);
H M16x50 screw if bracing (tightened to 190
Nm).
78 H M14x100 stainless steel screw (tighten to 130
Nm)
79 M 14 stainless steel flat washer
80 Stirrup fixing jaw
81 Clavette
82 Nylstop M14 stainless steel nut
83 Main shaft
74
10
54
57
13
30
