Note: All screws must be lubricated before assembly.
Note
: Minimum tightening torques are provided in the illustration’s legend.
Warning
: In the event of removal of the arm assembly, the spring assemblies’ lower fastening axle must be
removed beforehand by removing the pin (57), in order to release the tension in the springs.
1. Turn off the power to the barrier by turning off the circuit breaker (20, Ch. 2.1. ).
2. Unlock the nut (54) and screw the upper bumper (10) as far as possible into the hub (13), in order to
remove the compression constraint on the springs (30), then lift the stirrup (72).
3. Remove the spring assembly’s lower hinge pin (57).
4. Slowly lower the arm stirrup. If the barrier is equipped with the mechanical locking unlock the system
first by pulling on the electromagnet shank.
5. Place the first arm coupler (70) on the stirrup (72).
Tighten the screws (74), washers (73) and fixing brackets (71).

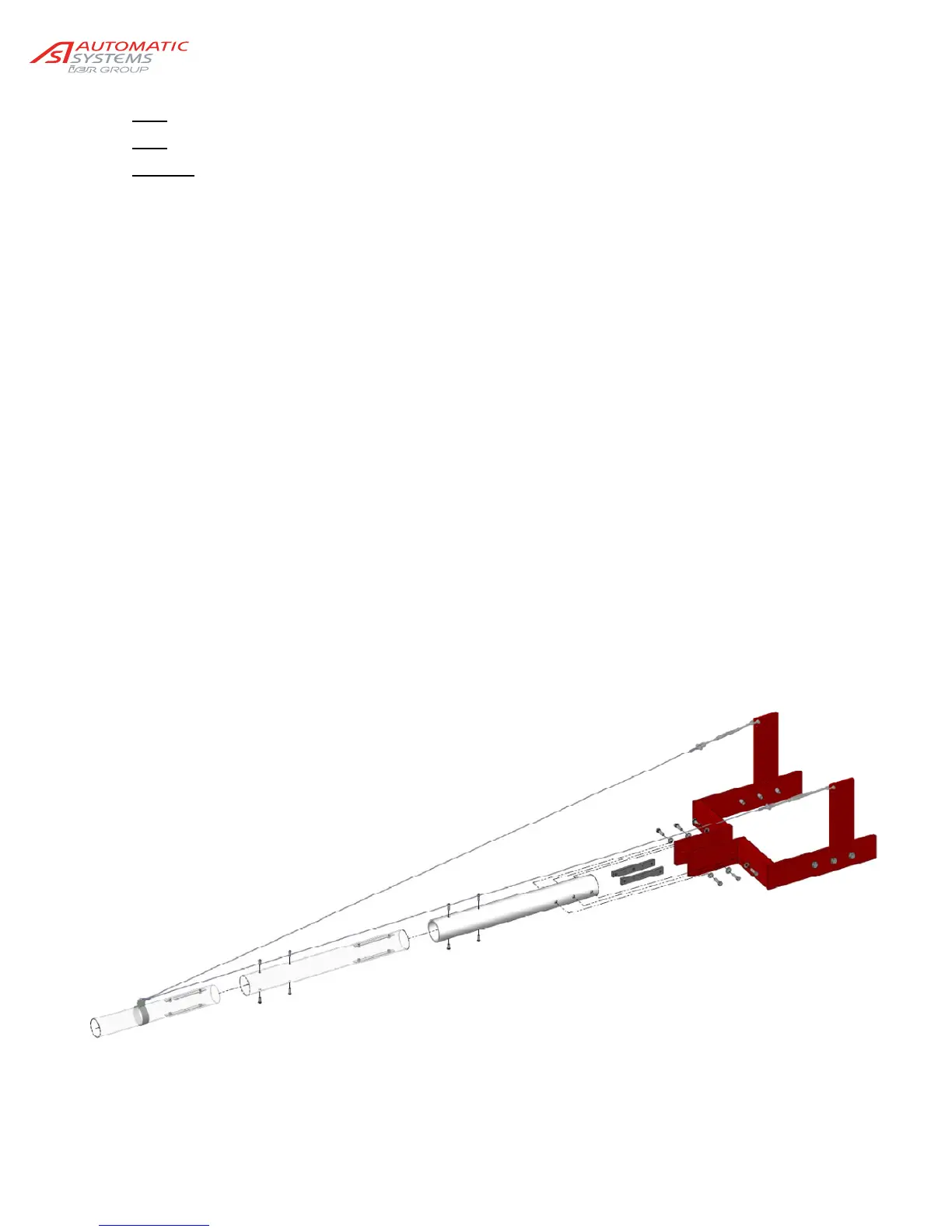

Place the second arm coupler, if any, into the first (see Arm assembly for BL40).
6. Lift the arm, if needed, unlock the system.
7. Replace the spring assembly’s lower fastening axle and lock it using its pin (57).
8. Adjust the verticality of the arm by tightening or loosening the upper bumper (10), then tighten the
lock nut (54).
9. Fasten and, where necessary, tighten the bracing wire (see illustration on the folding fence, below).
