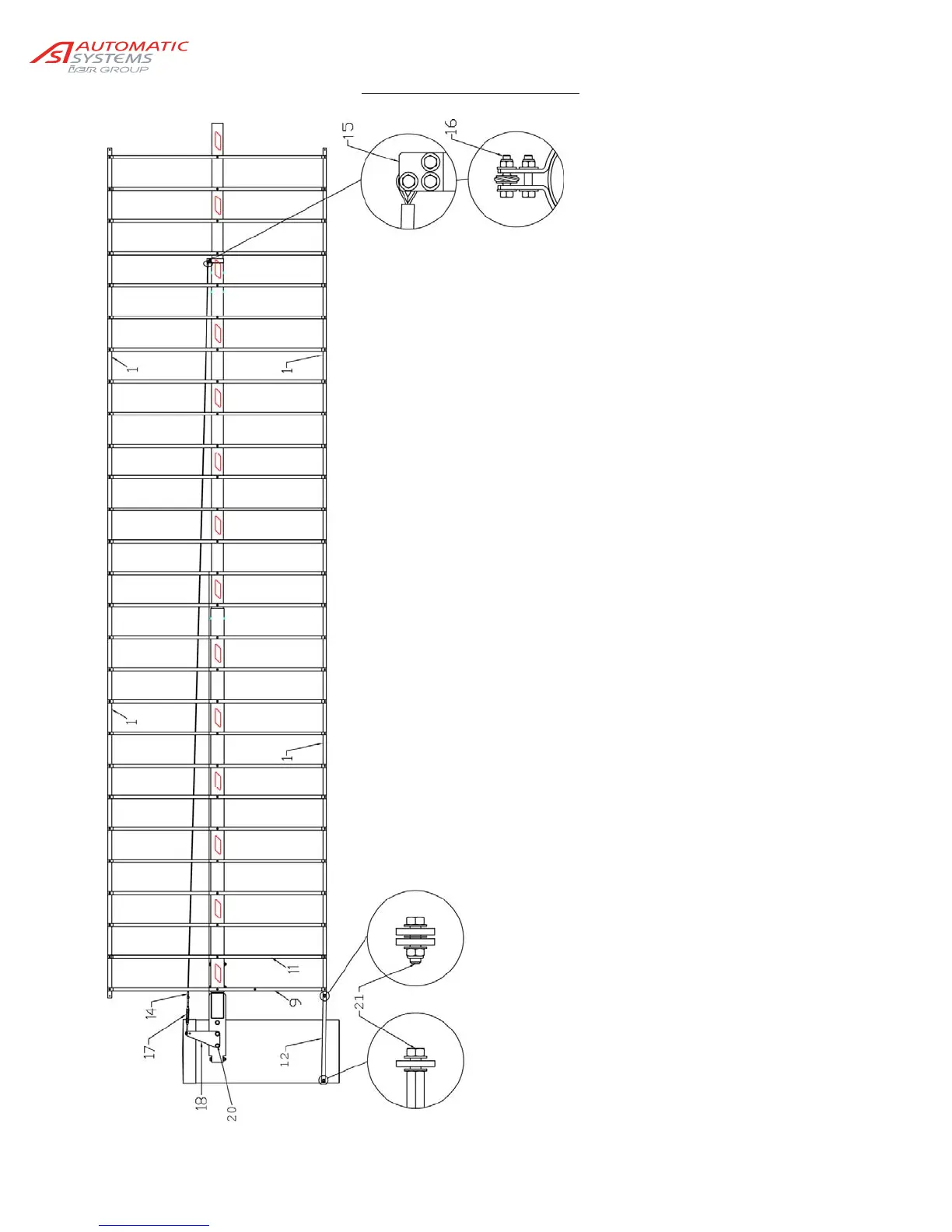

FOLDING FENCE ASSEMBLY
1. Flat connection bar
9. First bar kit
11. Curved bar
12. Articulation bar
14. Bracing wire
15. Bracing collar
16. HM6 x 35 stainless steel screw
17. Cable adjuster
18. Bracing mast
20. HM16 x 50 stainless steel screw
21. HM8 x 30 stainless steel screw
