p 39/58
Technical Manual NAM-BL4x-MT-EN-C
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.

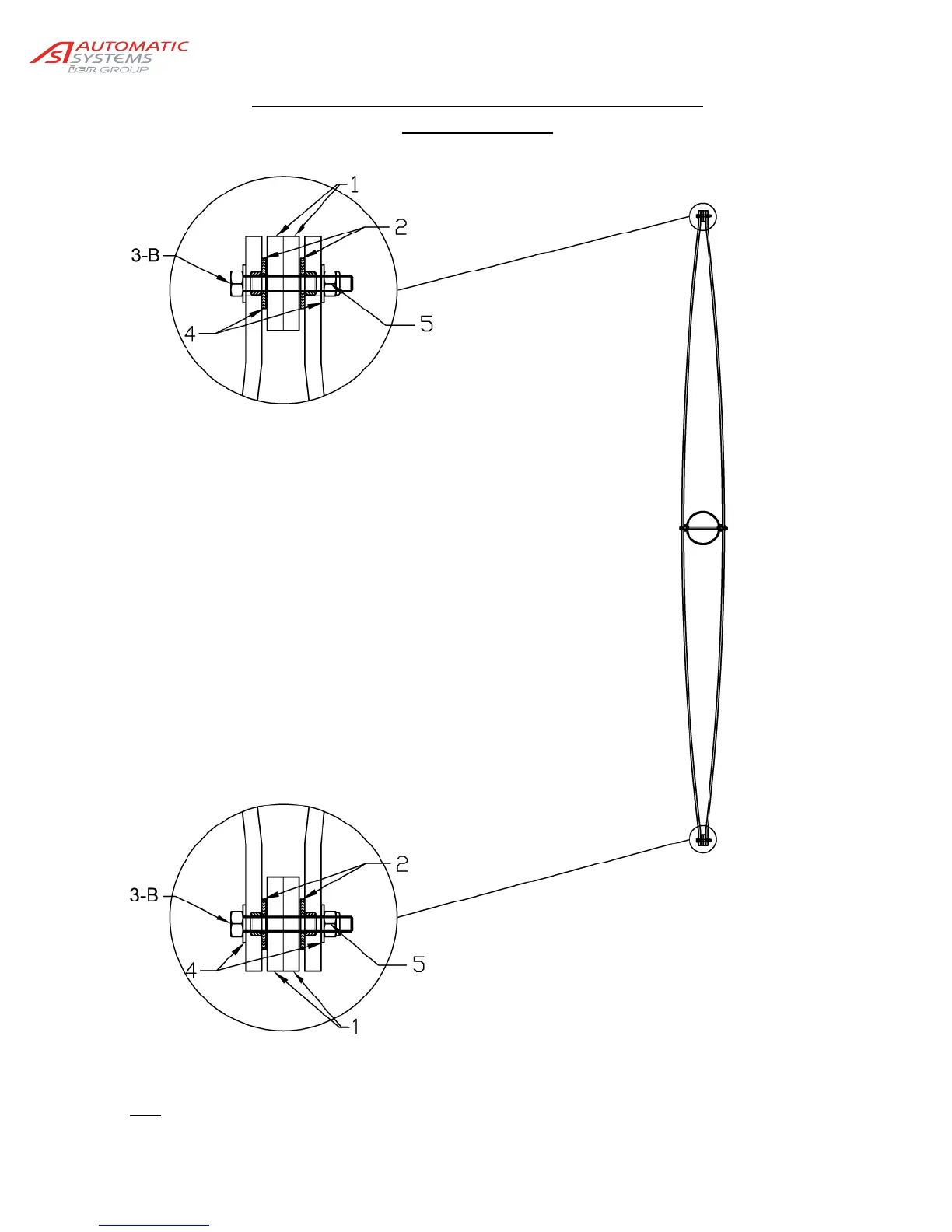

ASSEMBLY OF THE TOP AND BOTTOM CONNECTION BARS
(where they overlap)
1. Flat connection bars
2. Shoulder washer
3-
B. HM5 x 35 stainless steel screw
4. MU5 stainless steel washer
5. HFR5 brake nut
Note: Do not over-tighten screws 3-A and 7 in order
to allow the folding fence to fold without constraints.
