p 57/58
Technical Manual NAM-BL4x-MT-EN-C
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.
Connecting the presence sensors
The board accepts up to four Presence Sensors (cells and/or loops, the generic term used in the rest of the
manual and on the plans, diagrams and display is PS).
The cells are directly connected to connectors A, B and C (positions 13 to 16).
The loops are connected to the X13 connectors (loop x on connector DPx) (cable sections 2.5 mm²)
and the associated detector (Y) is connected to the corresponding pin (Z).
Note 1
: a double detector allows the handling of 2 loops simultaneously, but only following 2
combinations: either DP1 & DP2, either DP3 & DP4.
Note 2
: circuits DP1, DP2, DP3, DP4 of connector X13 are respectively linked to circuits DP1, DP2, DP3,
DP4 of connectors A, B and C. A loop and a cell may not be put on the same circuit (in other words, if a cell is
connected to DI1 (connector 16), a loop may not be at DP1 but may be at DP2, 3 or 4).
Note 3
: it is also necessary to configure the Exploitation parameter in the QUICK START menu.
Warning
: when the presence sensors are put in place, the obstacle may move. Hence, the presence sensors
should not be placed before power to the equipment has been cut (circuit breaker off).

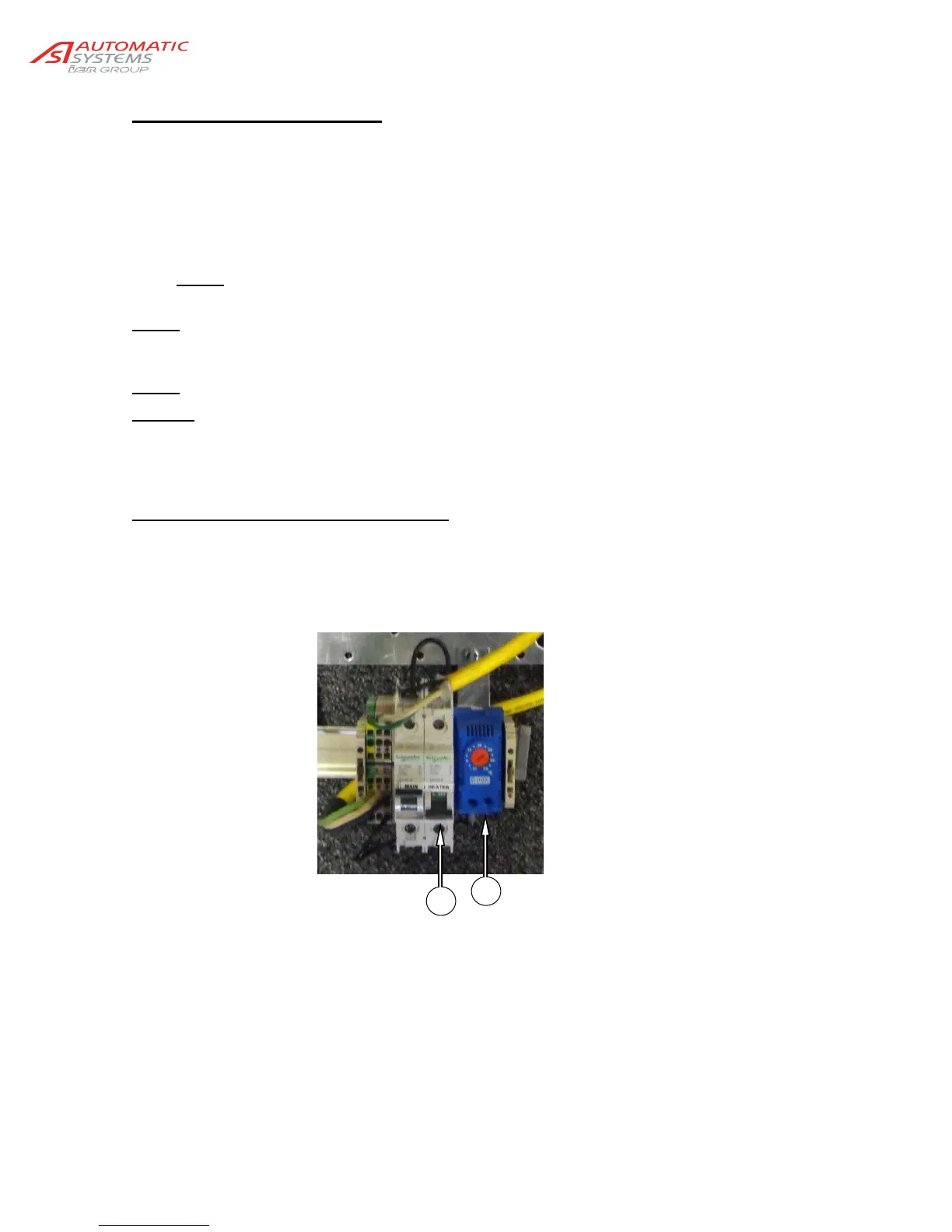

Connecting the heating resistance (option)
The optional heating resistance is feed by the circuit breaker 24,
It is directly controlled by thermostat E.
24
E
