Dominator Instruction Manual AM800, AM808 & AM888
19
© Copyright 2017
7.3. Door Status Indicators
Door Status Indicators OPEN LED (green) CLOSE LED (red) Beeper
Open On
Close On
Opening Flashing
Closing Flashing
Door travel stopped Flashing Flashing
Door obstructed when opening Flashing Beeps while door is moving
Door obstructed when closing Flashing Beeps while door is moving
Opener overloaded Alternating flashes Alternating flashes
Mains power interrupted Rapid flashes

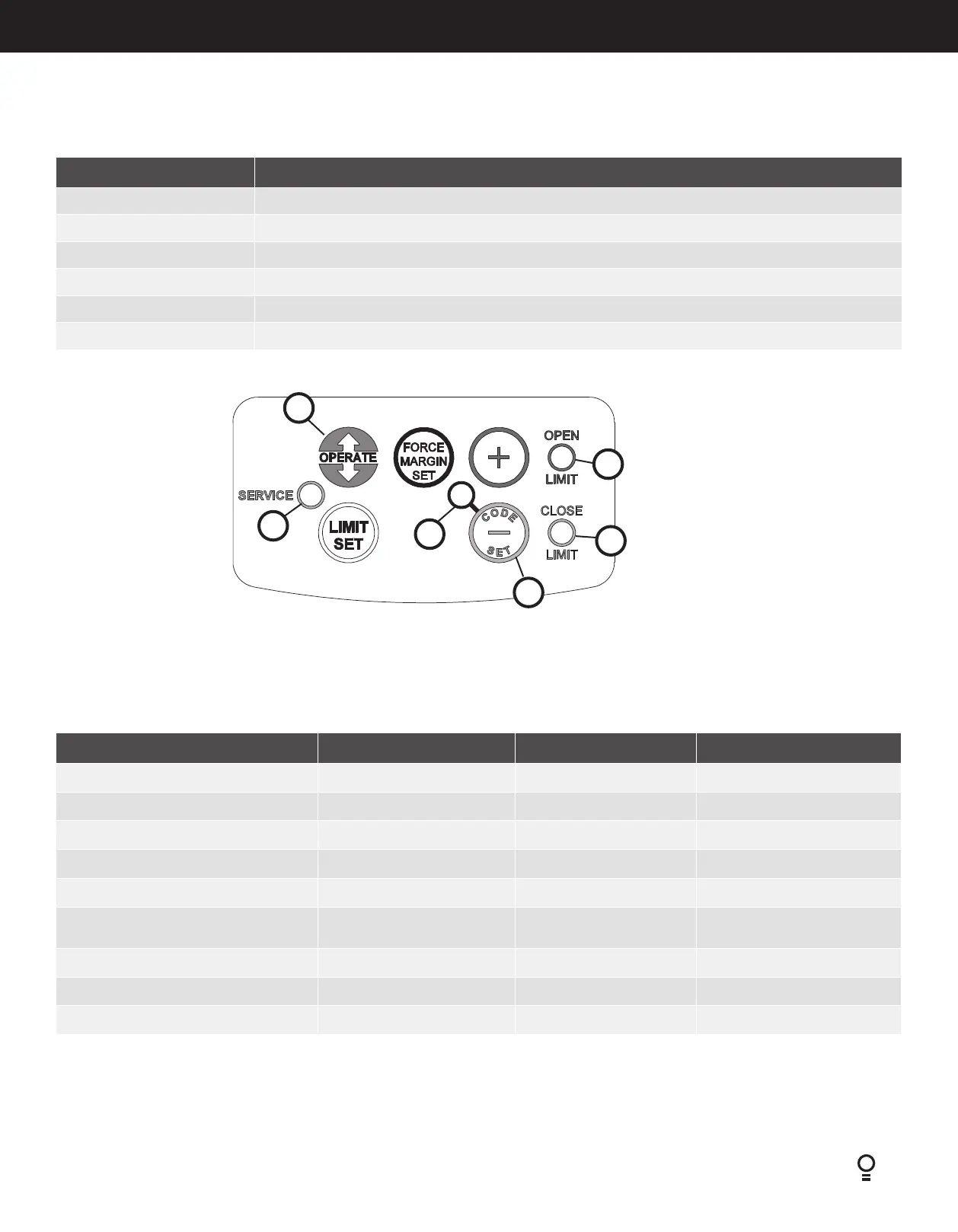

Button Function
1. OPERATE Opens/stops/closes the door.
2. CODE SET LED (Red) Flashes when a code is being stored or when the transmitter button is pressed
3. CLOSE LIMIT LED (Red) Illuminates and flashes as the door closes, and remains on when the close limit position has been reached.
4. OPEN LIMIT LED (Green) Illuminates and flashes as the door opens and remains on when the open limit position has been reached.
5. SERVICE LED (Yellow) Indicates when the opener requires service or repairs.
6. CODE SET and MINUS (-) Is used for storing or erasing transmitter buttons for door operation
02
03
04
01
06
05
7.2 User Operating Controls
