3. Connections to Other Loop Units
3.1 Introduction
The following subsections show the connection of various Loop Units.
For more detailed information on the Loop Units described in this
chapter, please refer to data sheets and other relevant user
documentation from Autronica Fire and Security AS.

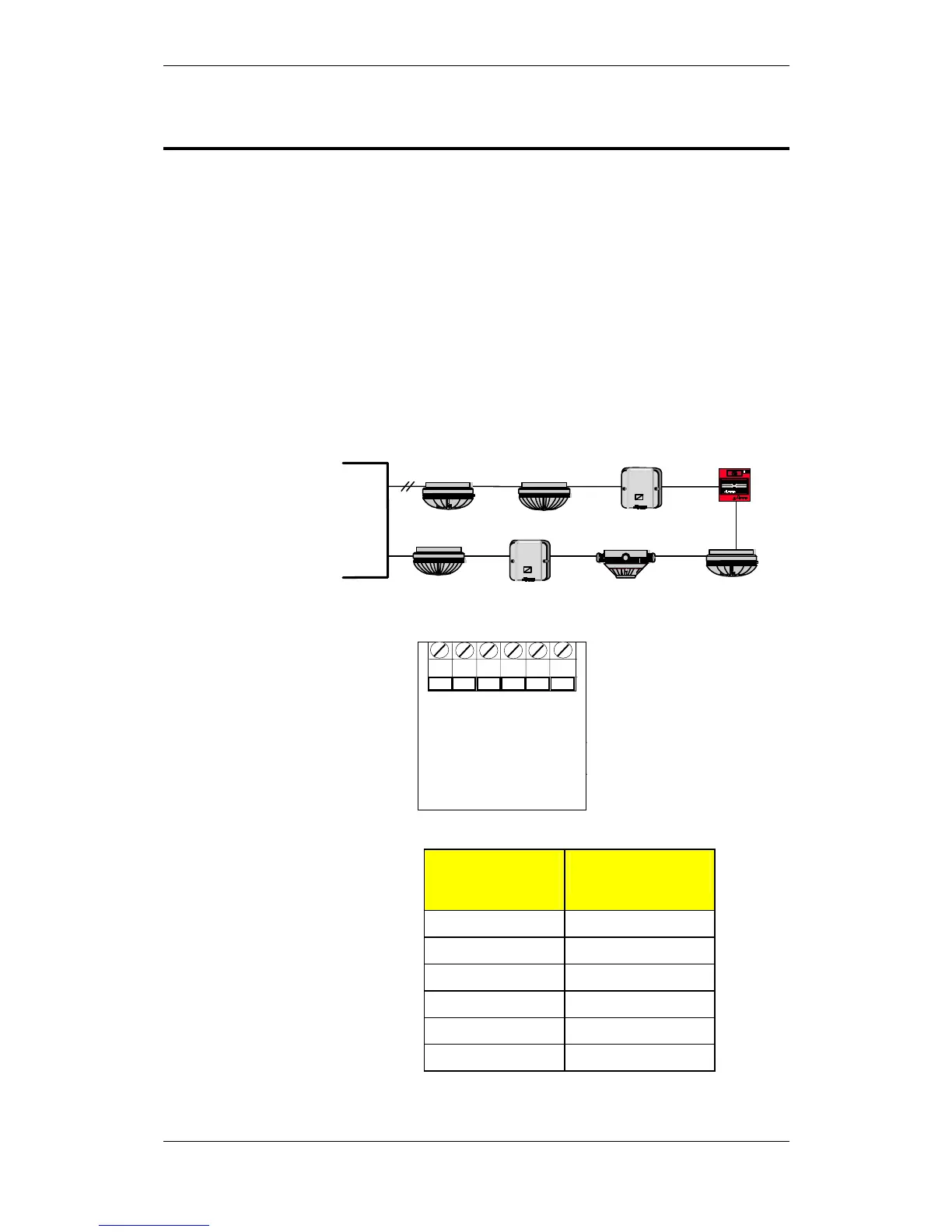

3.2 Manual Call Points
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
Detector
I/O Unit
Manual Call Point
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface uni t
Nr.
No.
Connector on
Manual Call
Point
Wires on
Detection Loop
1 Pos (+) in
2 Pos (+) out
3 Neg (-) in
4 Neg (-) out
5 Internal connection
6 Internal connection
1 2 3 4 5 6
Manual Call Point
