Autronica Autroprime - Monitoring and Control Unit (BN-320;4)

Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 23

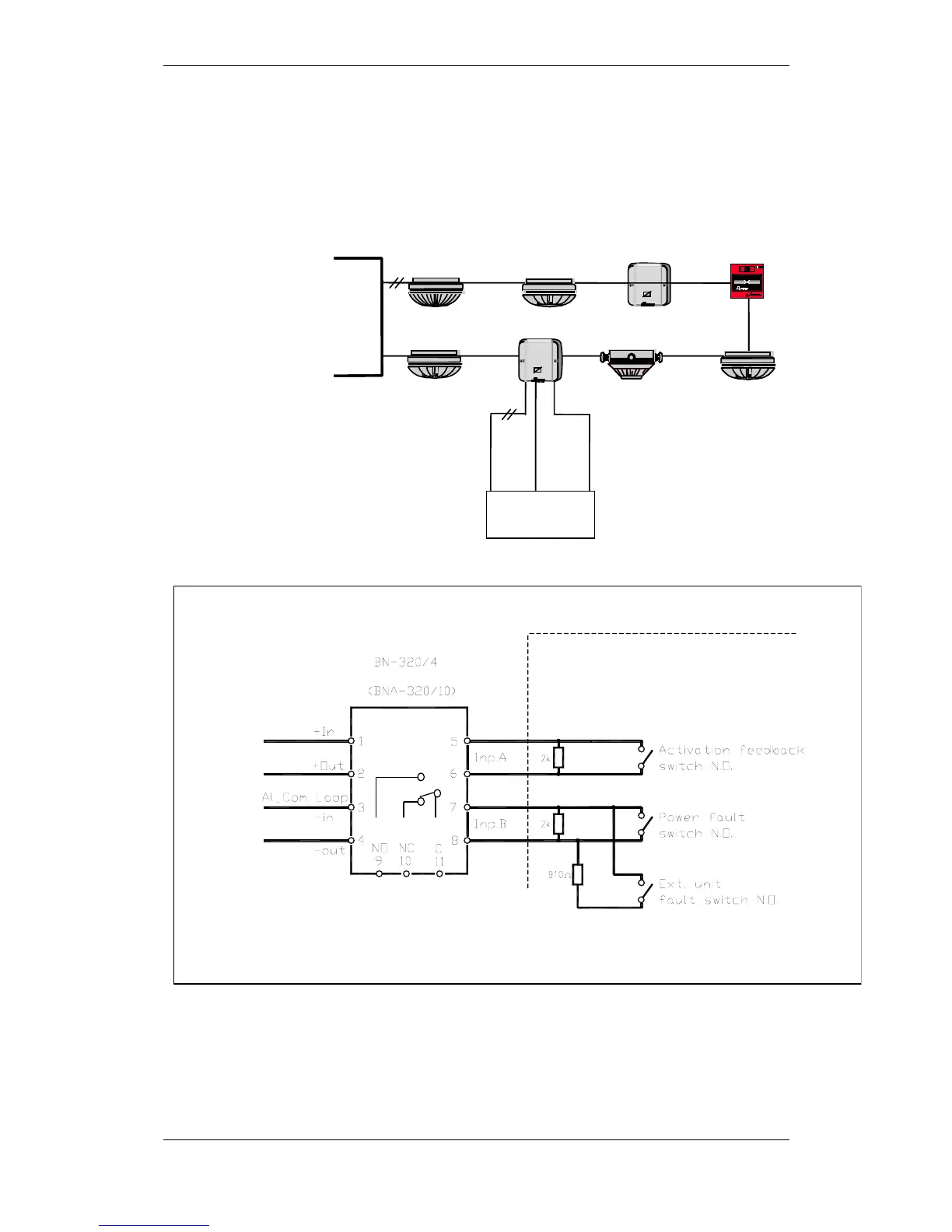

3.15 Monitoring and Control Unit (BN-320/4)
The Monitoring and Control Unit monitors and/or controls various
external equipment such as control of fire dampers, ventilation valves,
fans, lifts, plus fire and smoke hatches. The unit is connected to and
powered from the detection loop. External equipment must have
separate power supply.
PRESS HERE TRYKK HER
KNUS GLASSET
BREAK G LASS
BN
-
320/4
BN- 320
BRANNALAR
M
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
Loop
Driver
Module
Output
Input A
Input B
PRESS HERE TRYKK HER
KNUS GLASSET
BREAK G LASS
-
BN- 320
BRANNALAR
M
Tilpasningsenhet
FIRE ALAR M
Interface unit
Nr.
No.
External
Equipment
External
