2. Connections to Detectors

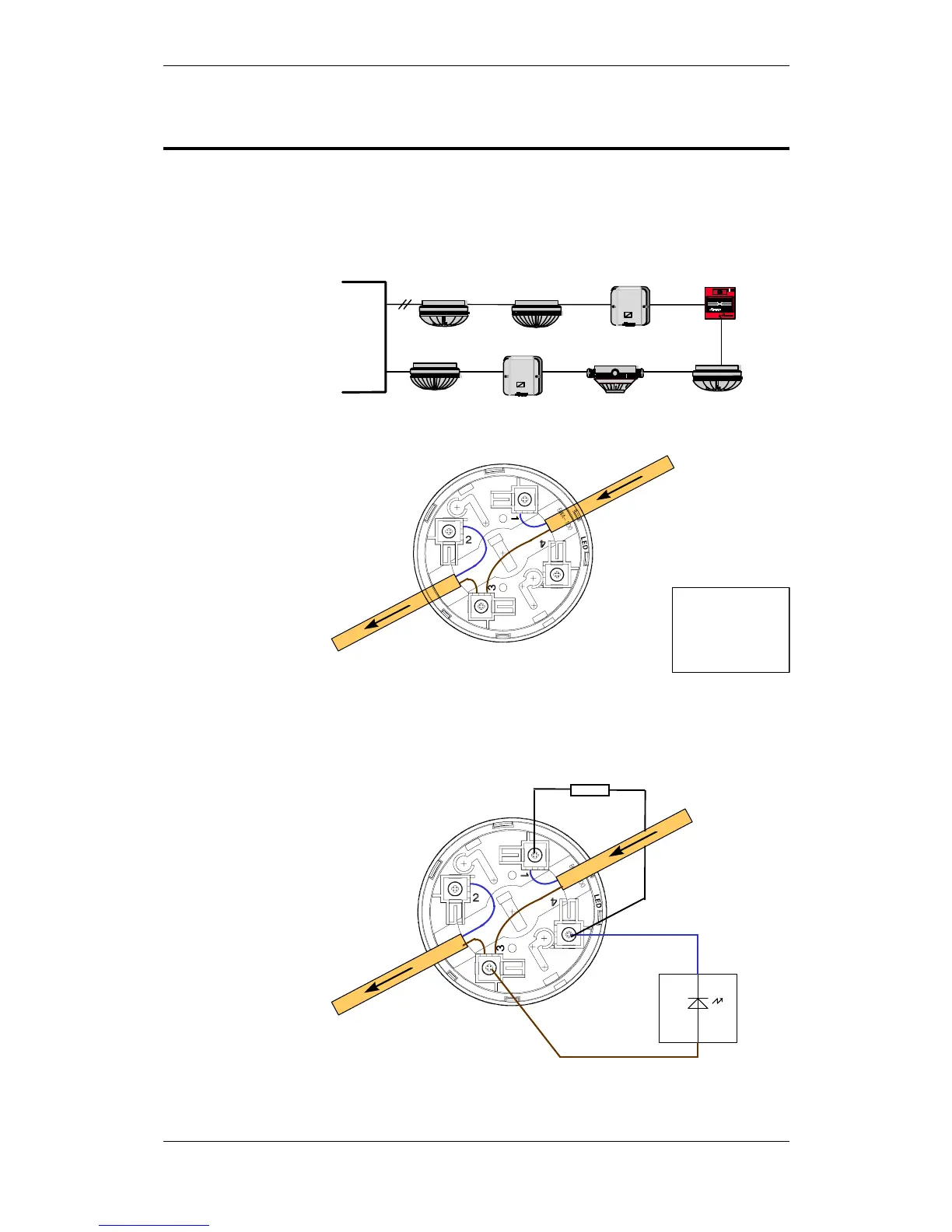

2.1 Connecting Detectors
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
Detector
I/O Unit
Manual Call Point
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interfac e unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Input
Output
2.2 LED Connection on Detector
+
-
BU-46
Input
Output
1 - IN
2 - OUT
3 + COMMON
4 - LED
LED
Varistor SIOV-S07K25
