Autronica Autroprime - 3.4 Alarm Levels; 3.5 Access Levels

Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 16

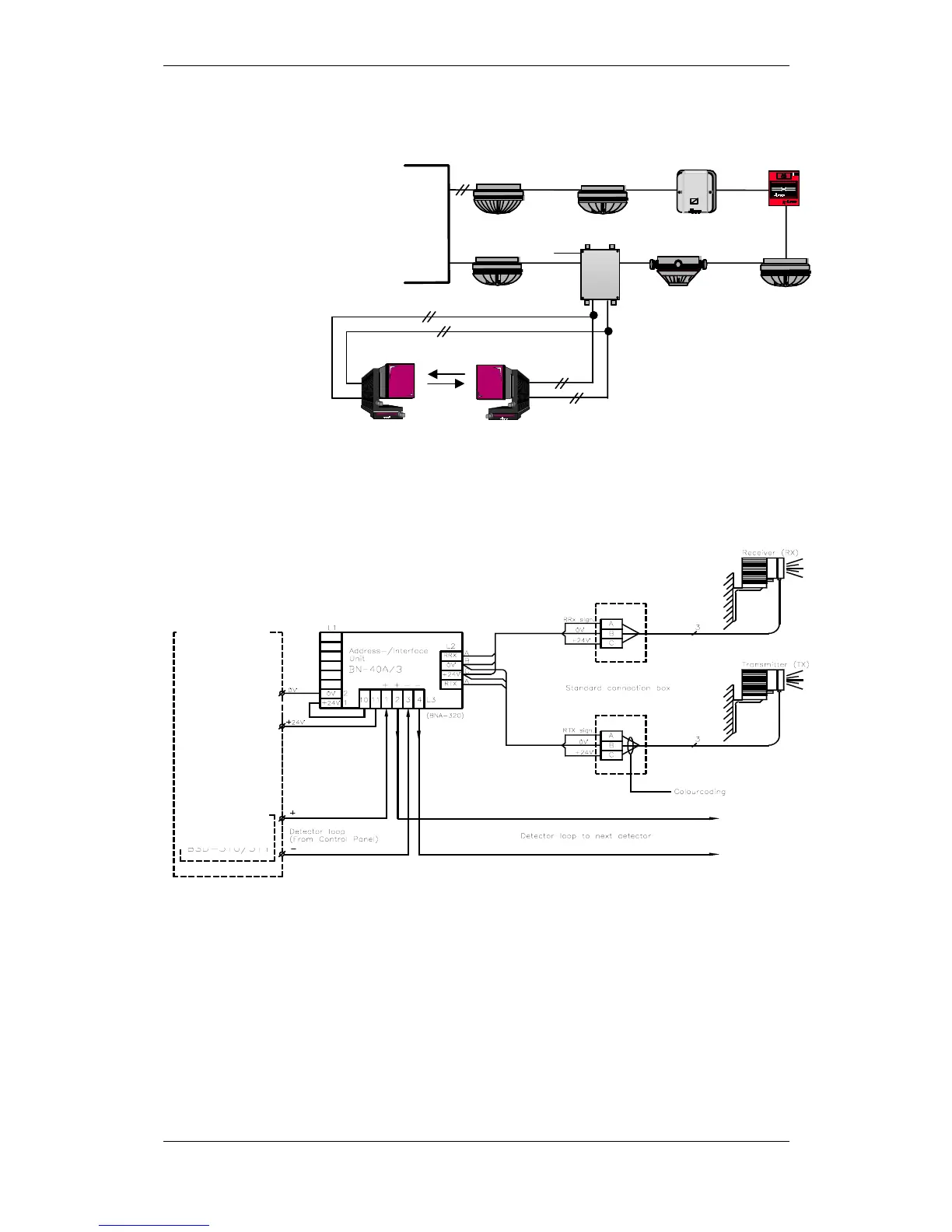

3.8 AutroBeam 100 Infrared Beamdetector System
24 VDC
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
BN-40A/3
Alarm
signal
AutroBeam 100
Receiver
AutroBeam 100
BN- 320
BRANNALARM
Tilpasningsenhet
FIR E ALAR M
Interf ace unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIR E ALAR M
Interf ace unit
Nr.
No.
Loop
Driver
Module
AutroBeam 100
Transmitter
AutroBeam 100AutroBeam 100
(Drawing No. bs-1160)
Power
Fire Alarm
Control
Panel
