Autronica Autroprime Connecting

Connections to Other Loop Units
Connecting Loop Units, Interactive Fire Detection Systems, 116-P-CONNECTLOOPUNIT/DGB 2007-10-10,
Autronica Fire and Security AS
Page 19
3.11 Addressable Socket Sounder (BBR-110)
The Socket Sounder (BBR-110) is a combined detector base and
addressable sounder. The unit is powered from the detection loop. No
external power supply is required.
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.

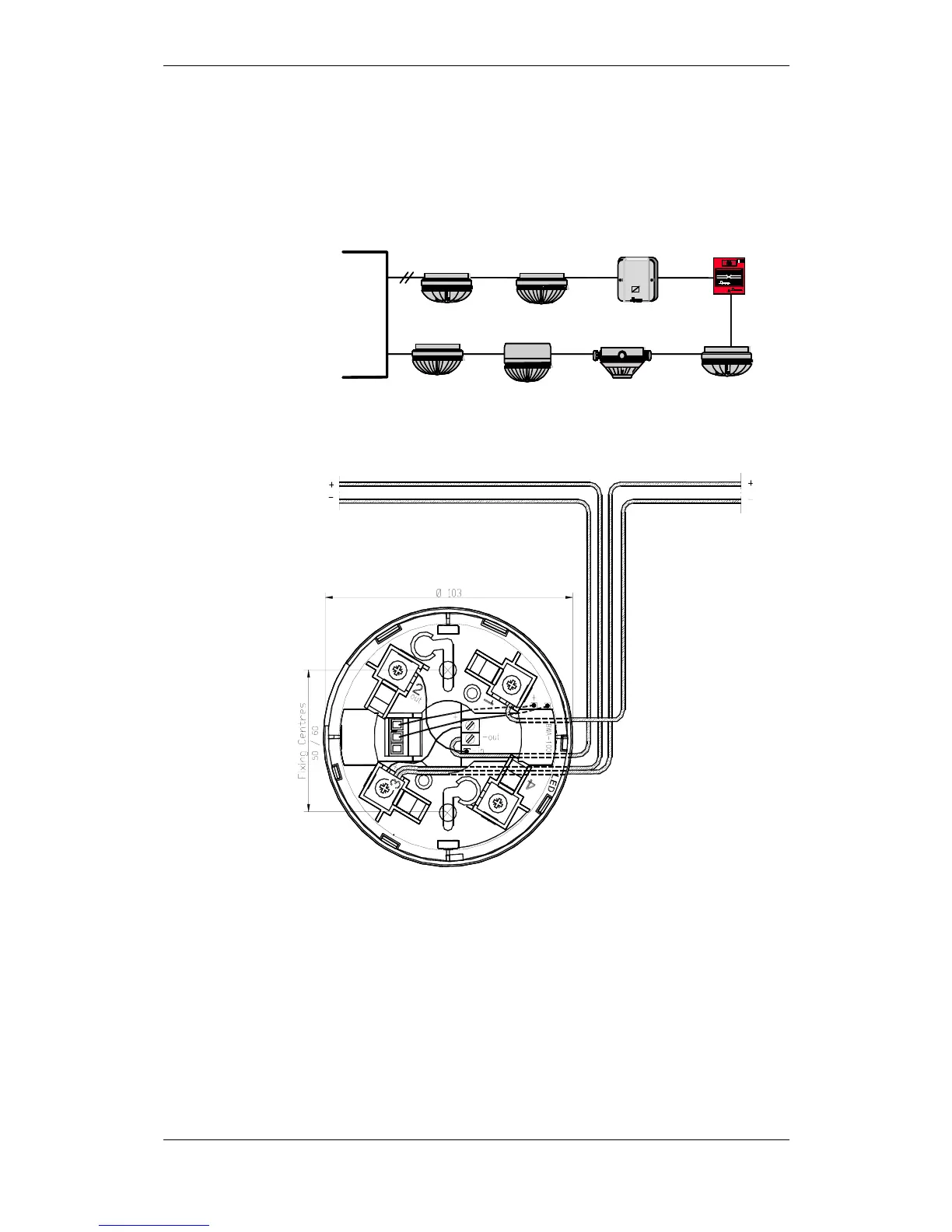

Socket Sounder
BBR-110
PRESS HERETRYKK HER
KNUS GLASSET
BREAK GLASS
Loop
Driver
Module
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
BN- 320
BRANNALARM
Tilpasningsenhet
FIRE ALARM
Interface unit
Nr.
No.
Socket Sounder
BBR-110
Detector loop in
Detector loop out
- In: Terminal connection 1
- Out: Terminal connection - out on circuit board
Common (+ In and + Out): Terminal connection 3
External LED: Terminal connection 4
Detection loop in Detection loop out
