EMX-SKLUP User’s Manual
22 EMX-SKLUP User’s Manual

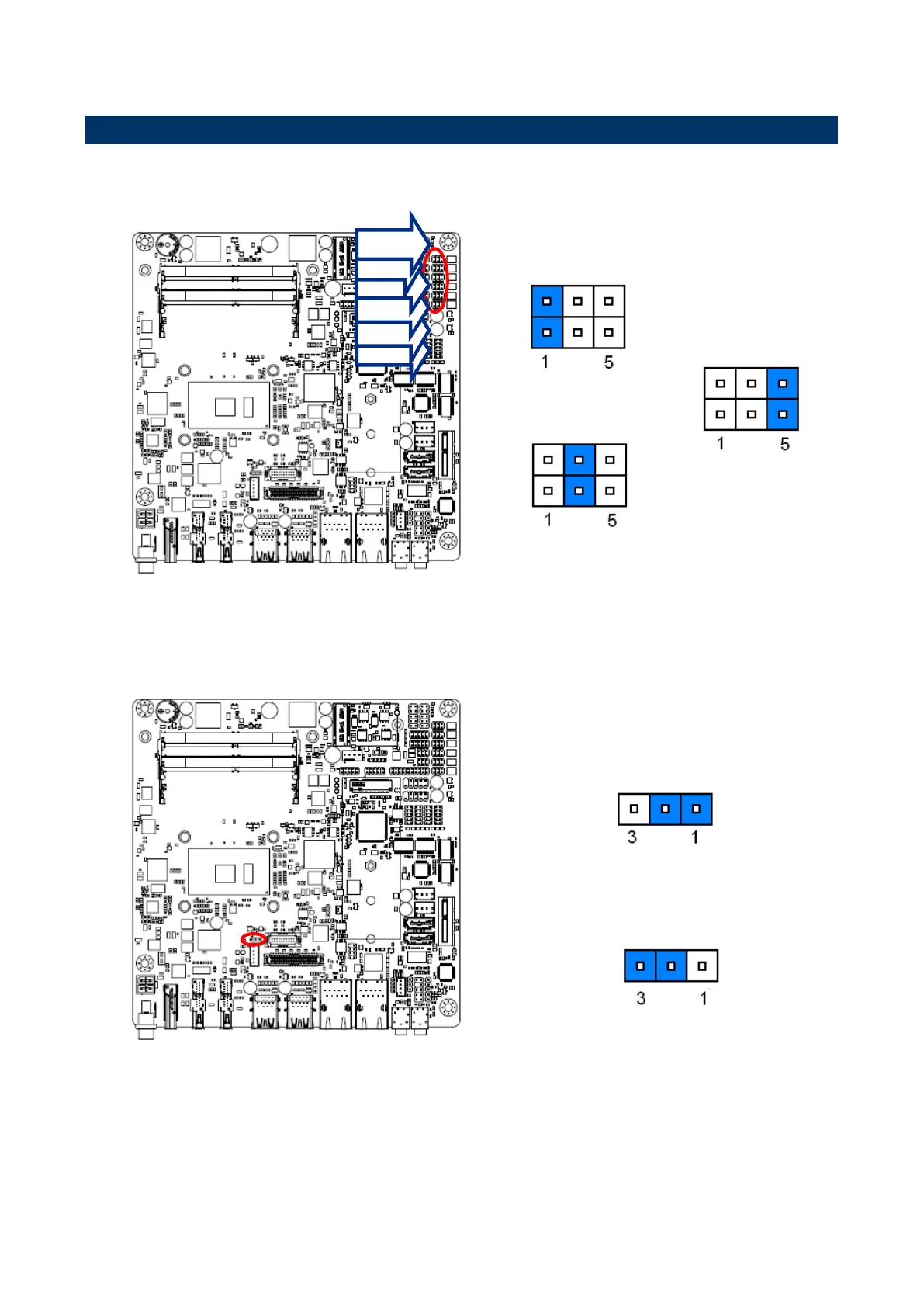

2.3 Setting Jumpers & Connectors
2.3.1 Serial port 1/2/3/4/5/6 pin9 signal select (JRI1/JRI2/JRI3/JRI4/JRI5/JRI6)
* Default
Ring*
+5V
+12V
2.3.2 LVDS Back Light power selection (JSBKL1)
* Default
PWM Mode*
DC Mode
JRI6
JRI5
JRI4
JRI3
JRI2
JRI1
