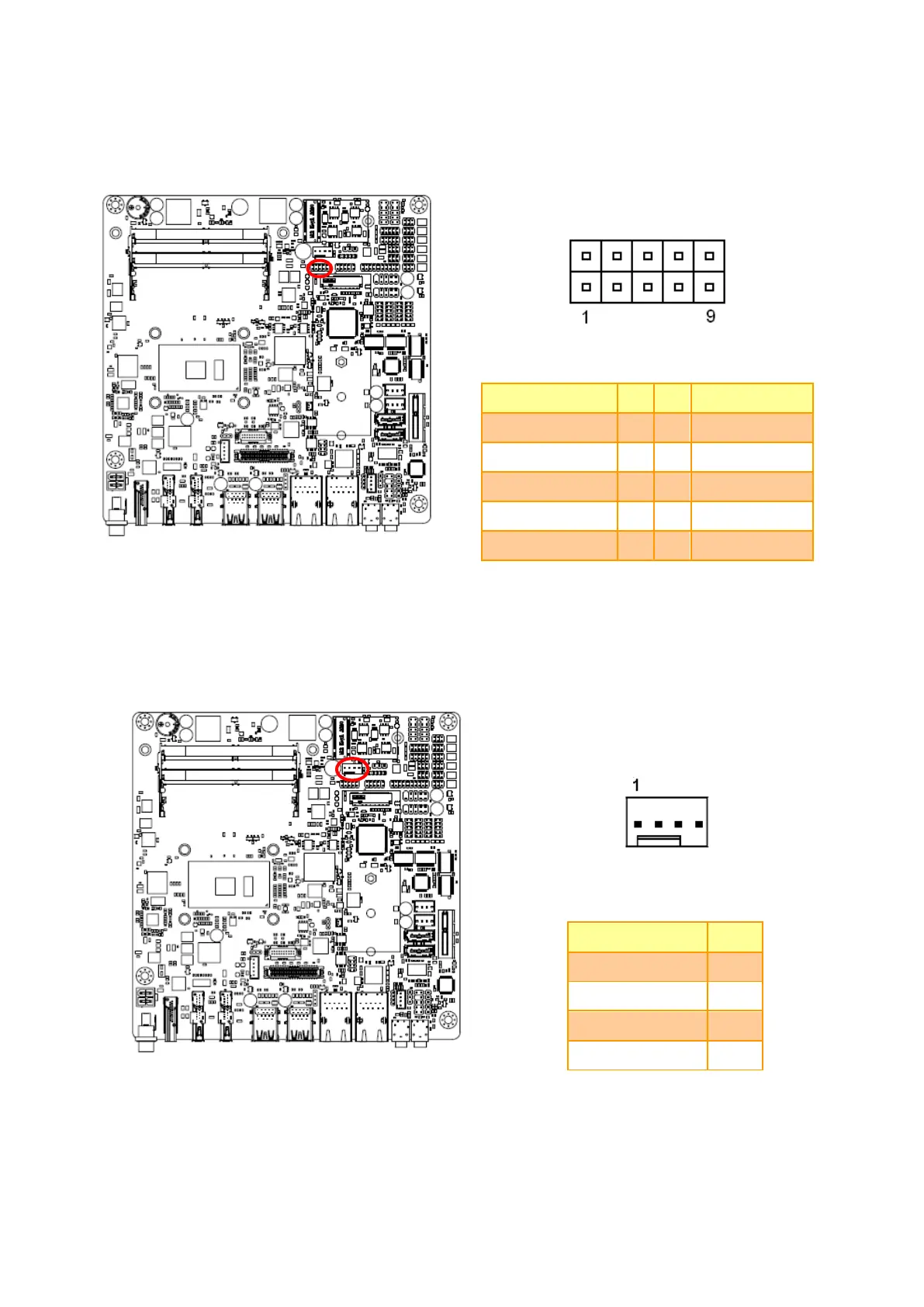

2.3.28 LPC connector (JLPC)
Signal
PIN
PIN
Signal
LPC_AD0
1
2
+3.3V
LPC_AD1
3
4
PCH_PLTRST#
LPC_AD2
5
6
LPC_FRAME#
LPC_AD3
7
8
LPC_CLK
LPC_SERIRQ
9
10
GND
2.3.29 CPU fan connector (FAN1)
Signal
PIN
GND
1
+12V
2
CPU_FANIN
3
FAN_PWM0
4
