EMX-SKLUP User’s Manual
32 EMX-SKLUP User’s Manual

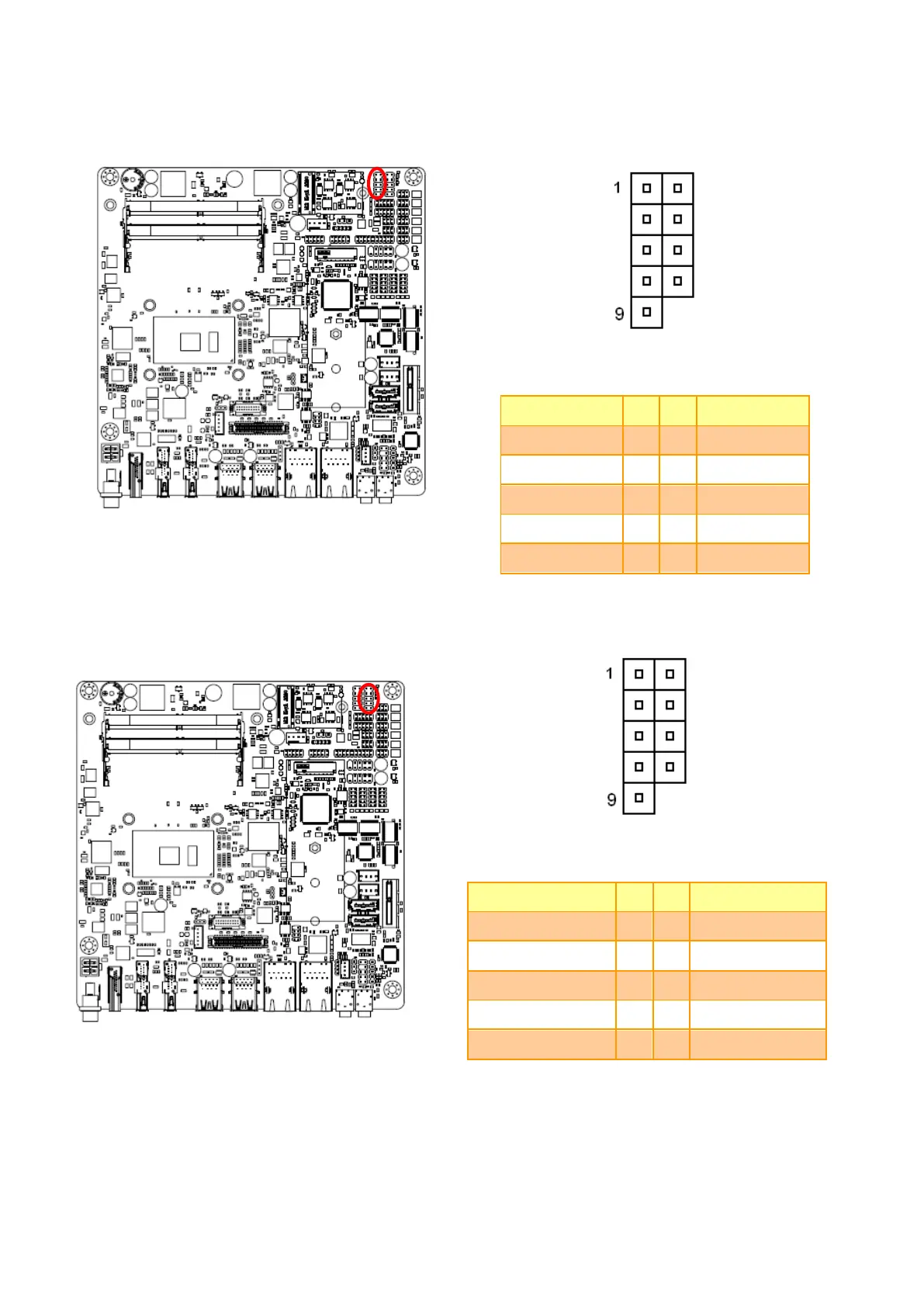

2.3.20 Miscellaneous setting connector 1 (FPT1)
Signal
PIN
PIN
Signal
HD_LED+
1
2
PWR_LED+
HD_LED-
3
4
PWE_LED-
Reset+
5
6
PWR_BNT+
Reset-
7
8
PWR_BNT-
NC
9
2.3.21 Miscellaneous setting connector 2 (FPT2)
Signal
PIN
PIN
Signal
Speaker+
1
2
BLK_VR(10K)
NC
3
4
BLK_UP
NC
5
6
BLK_DN
Speaker-
7
8
GND
NC
9
10
Note:
1. Pin2 with GND: Control LVDS Backlight by use Variable Resistor.
2. BLK_UP with GND/BLK_DN with GND: Step control LVDS Backlight by use button and BIOS must to be
set “BR Button”. (Please refer to page.61)
