User’s Manual
EMX-SKLUP User’s Manual
31

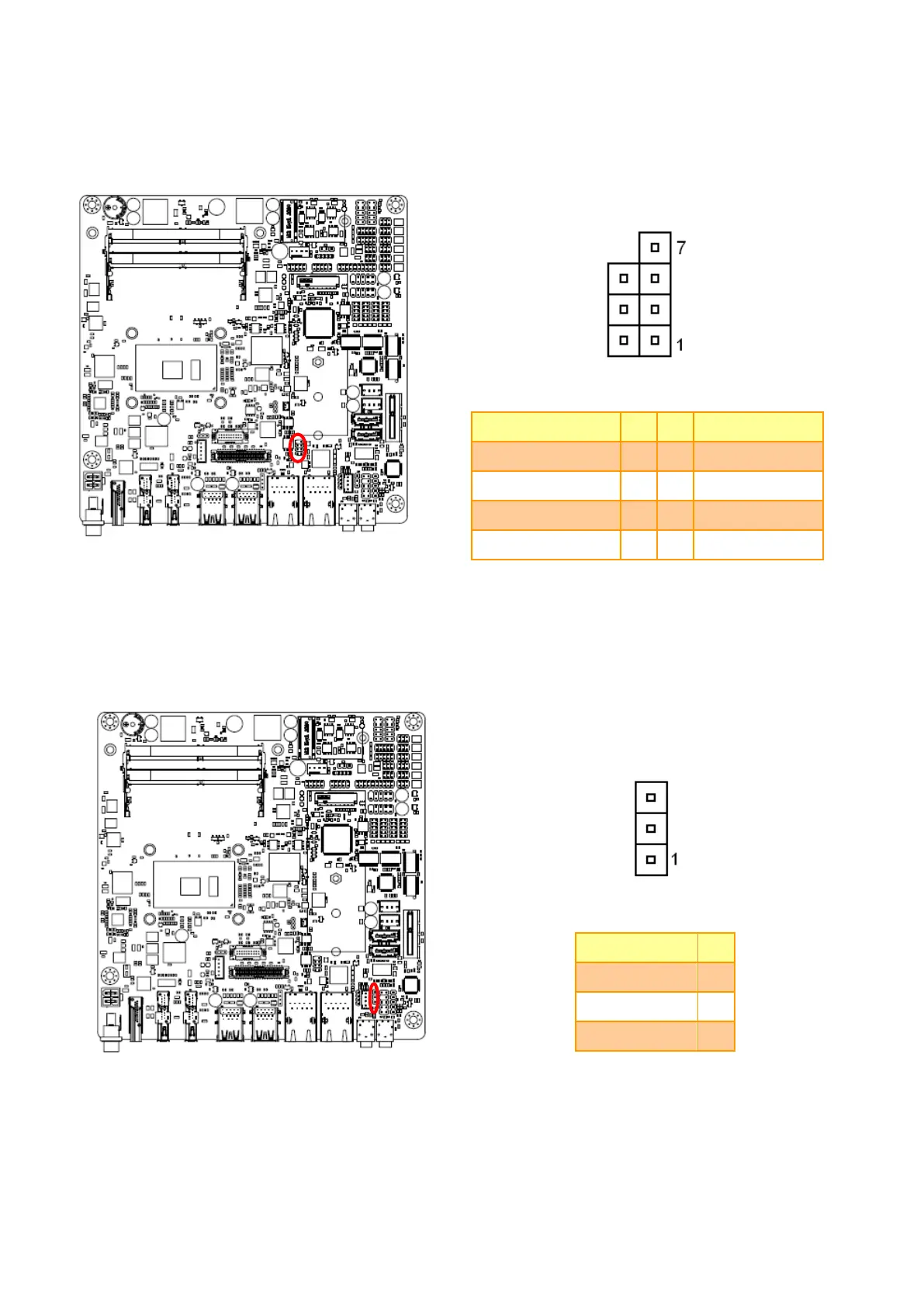

2.3.18 SPI connector (JSPI1)
Signal
PIN
PIN
Signal
7
HOLD#
SPI_SI
6
5
SPI_SO
SPI_CLK
4
3
SPI0_CS0#
GND
2
1
+3.3A_SPI
2.3.19 Sony/Philips Digital Interface (SPDIF1)
Signal
PIN
GND
3
SPDIF_OUT
2
+5V
1
