EMX-SKLUP User’s Manual
30 EMX-SKLUP User’s Manual

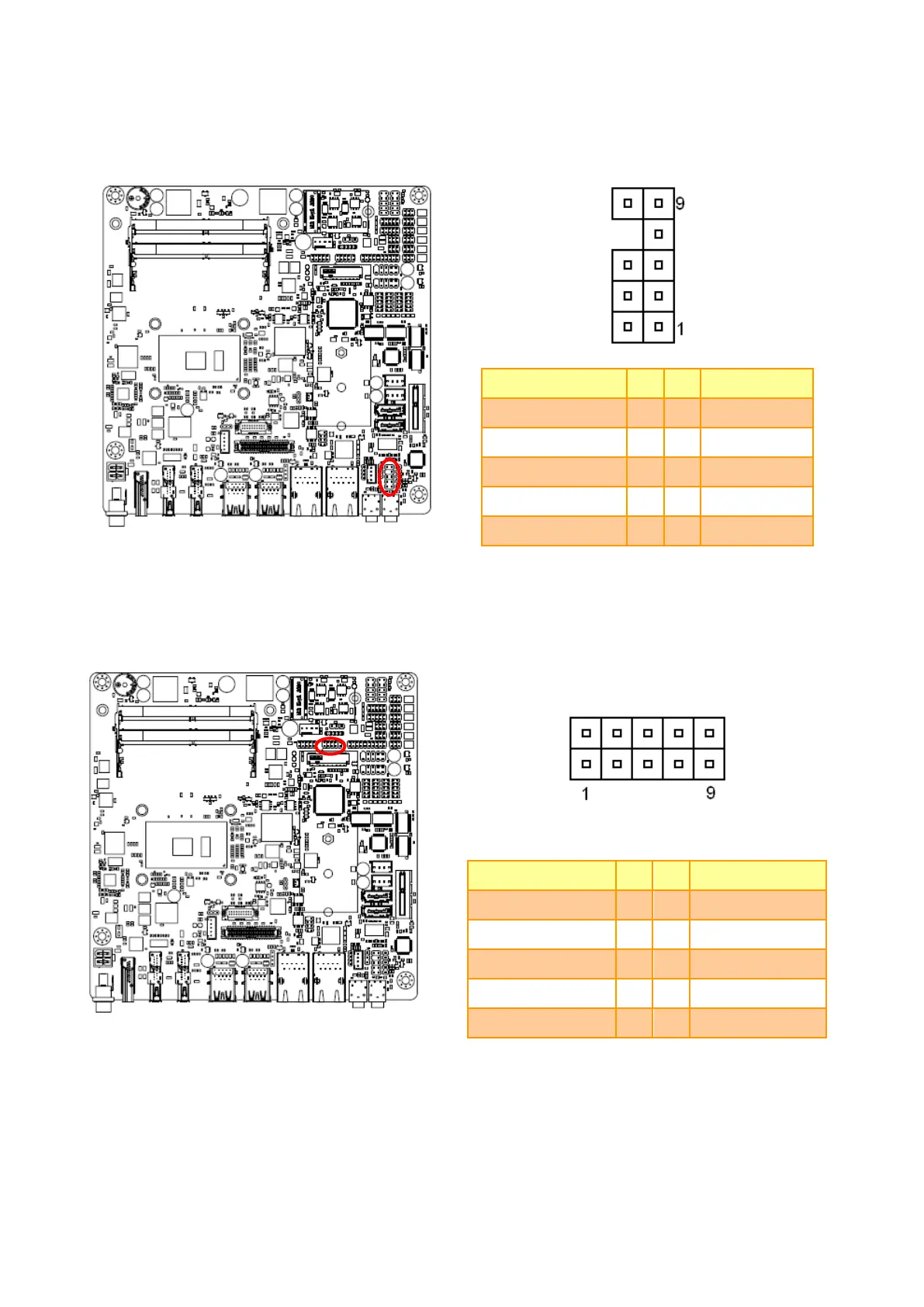

2.3.16 Audio connector (FAUD1)
Signal
PIN
PIN
Signal
LINE2_JD
10
9
LINE2_LIN
7
SENSE_B
MIC2_JD
6
5
LINE2_RIN
AUD_FRONT_DET
4
3
MIC2_RIN
GND
2
1
MIC2_LIN
2.3.17 EC Debug (JEC_SPI)
Signal
PIN
PIN
Signal
+3VSPI_EC
1
2
GND
EC_FSCE#
3
4
EC_FSCK
EC_FMISO
5
6
EC_FMOSI
EC_HOLD#
7
8
NC
EC_SMCLK
9
10
EC_SMDAT
