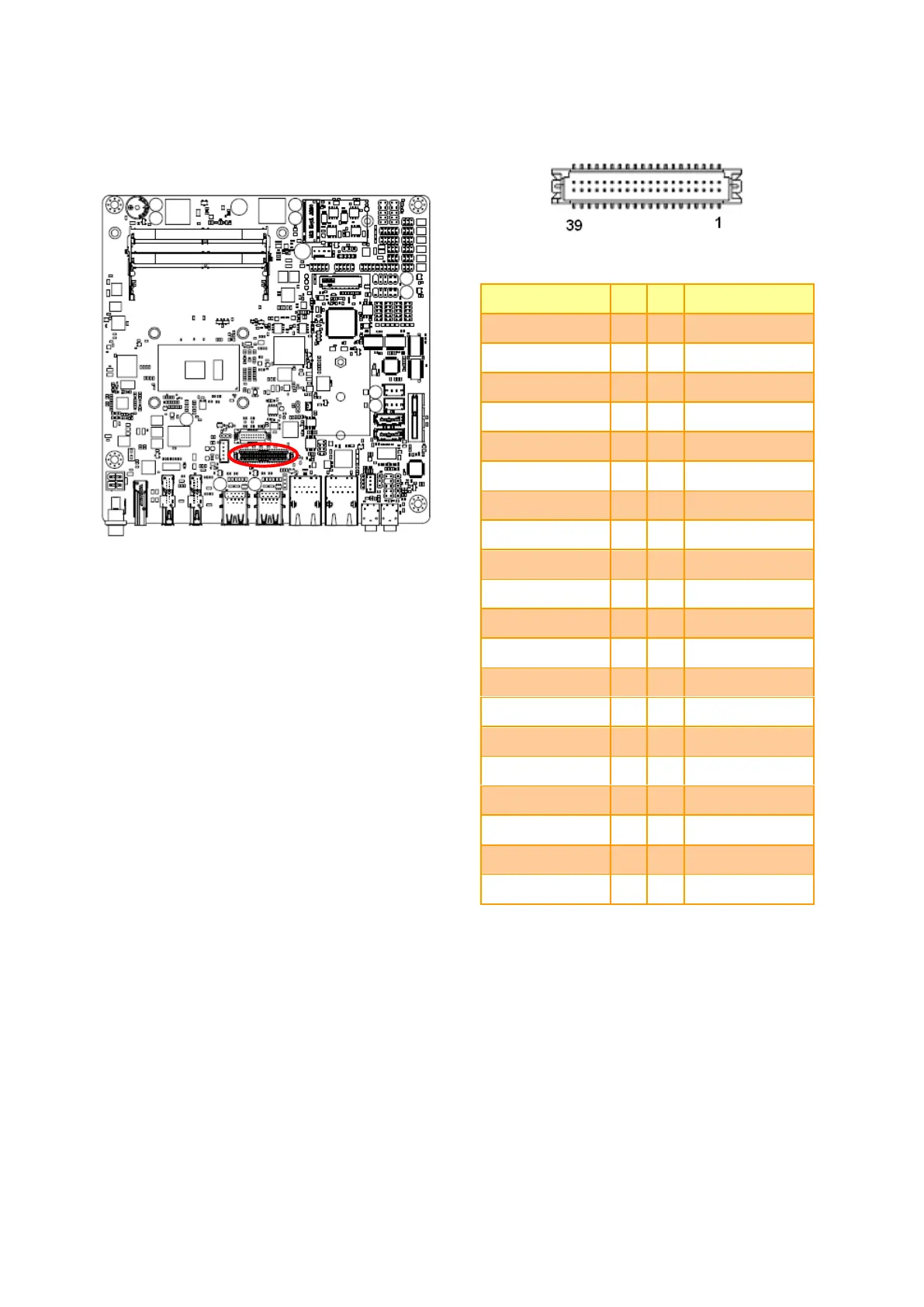

2.3.15 LVDS connector (LVDS1)
Signal
PIN
PIN
Signal
+5V
2
1
+3.3V
+5V
4
3
+3.3V
NC
6
5
NC
GND
8
7
GND
LVDS_DATA0_P
10
9
LVDS_DATA1_P
LVDS_DATA0_N
12
11
LVDS_DATA1_N
GND
14
13
GND
LVDS_DATA2_P
16
15
LVDS_DATA3_P
LVDS_DATA2_N
18
17
LVDS_DATA3_N
GND
20
19
GND
LVDS_DATA4_P
22
21
LVDS_DATA5_P
LVDS_DATA4_N
24
23
LVDS_DATA5_N
GND
26
25
GND
LVDS_DATA6_P
28
27
LVDS_DATA7_P
LVDS_DATA6_N
30
29
LVDS_DATA7_N
GND
32
31
GND
LVDS_CLK1_P
34
33
LVDS_CLK2_P
LVDS_ CLK1_N
36
35
LVDS_ CLK2_N
GND
38
37
GND
+12V
40
39
+12V
