54 EMX-SKLUP User’s Manual
Item
Options
Description
Console Redirection
Disabled[Default],
Enabled
Console Redirection Enable or Disable.

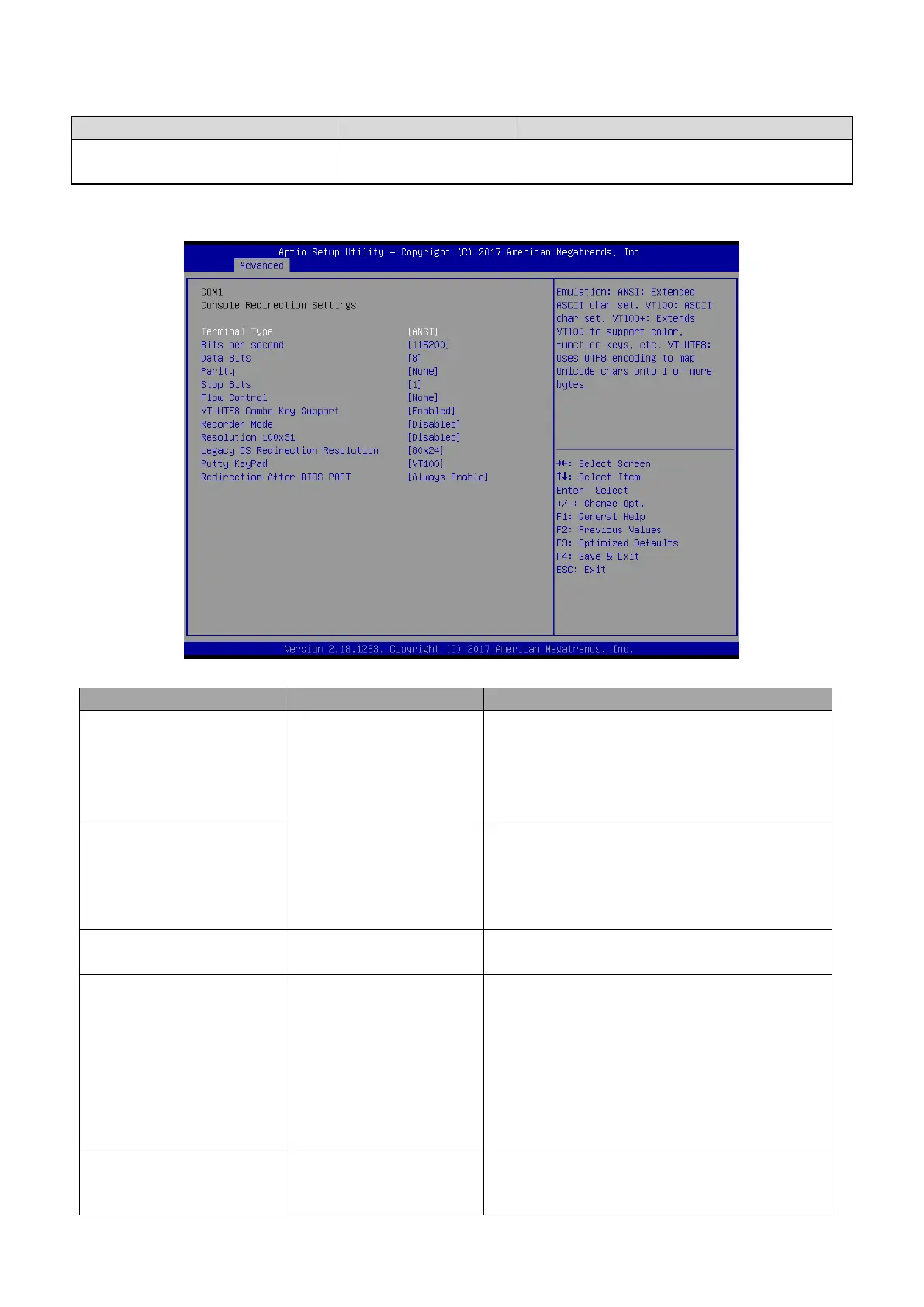

3.6.2.8.1 COM1
Item
Option
Description
Terminal Type
VT100
VT100+
VT-UTF8
ANSI[Default]
Emulation: ANSI: Extended ASCII char set.
VT100: ASCII char set. VT100+: Extends VT100
to support color, function keys, etc. VT-UTF8:
Uses UTF8 encoding to map Unicode chars
onto 1 or more bytes.
Bits per second
9600
19200
38400
57600
115200[Default]
Select serial port transmission speed. The
speed must be matched on the other side. Long
or noisy lines may require lower speeds.
Data Bits
7
8[Default]
Data Bits.
Parity
None[Default]
Even
Odd
Mark
Space
A parity bit can be sent with the data bits to
detect some transmission errors. Even: parity bit
is 0 if the num of 1’s in the data bits is even.
Odd:parity bit is 0 if num of 1’s in the data bits is
odd. Mark: parity bit is always 1. Space: Parity
bit is always 0. Mark and Space Parity do not
allow for error detection. They can be used as
and additional data bit.
Stop Bits
1[Default]
2
Stop bits indicate the end of a serial data packet.
(A start bit indicates the beginning). The
standard setting is 1 stop bit. Communication
