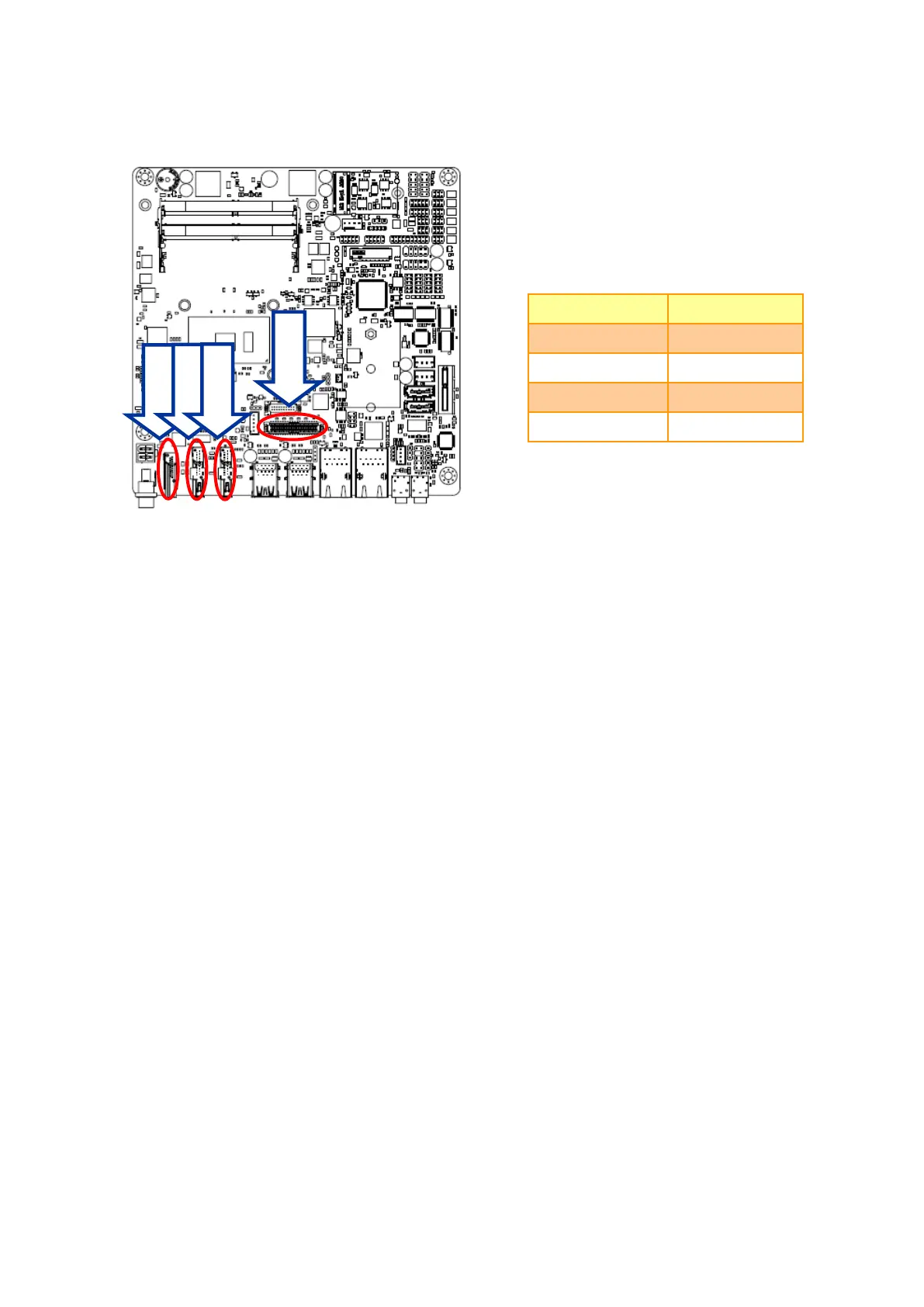

2.3.30 HDMI1/DP1/DP2/LVDS1
Display
Location
HDMI
HDMI1
DP
DP1
DP++
DP2
LVDS
LVDS1
Display: 1 x DP++(DP2 connector), 1 x HDMI(HDMI1 connector), 1 x DP (DP1 connector),
LVDS(LVDS1 connector)
Note: HDMI1 and DP1 share one circuit for display output depending on which monitor
input is engaged. (Only one display port can be output, HDMI1 or DP1)
Triple display:
HDMI & DP++ & LVDS
DP & DP++ & LVDS
HDMI
DP1
DP2
LVDS1
