Avalue Technology EMX-SKLUP - USB Connector 4 (USB4); Battery Connector (BT1)

EMX-SKLUP User’s Manual
28 EMX-SKLUP User’s Manual

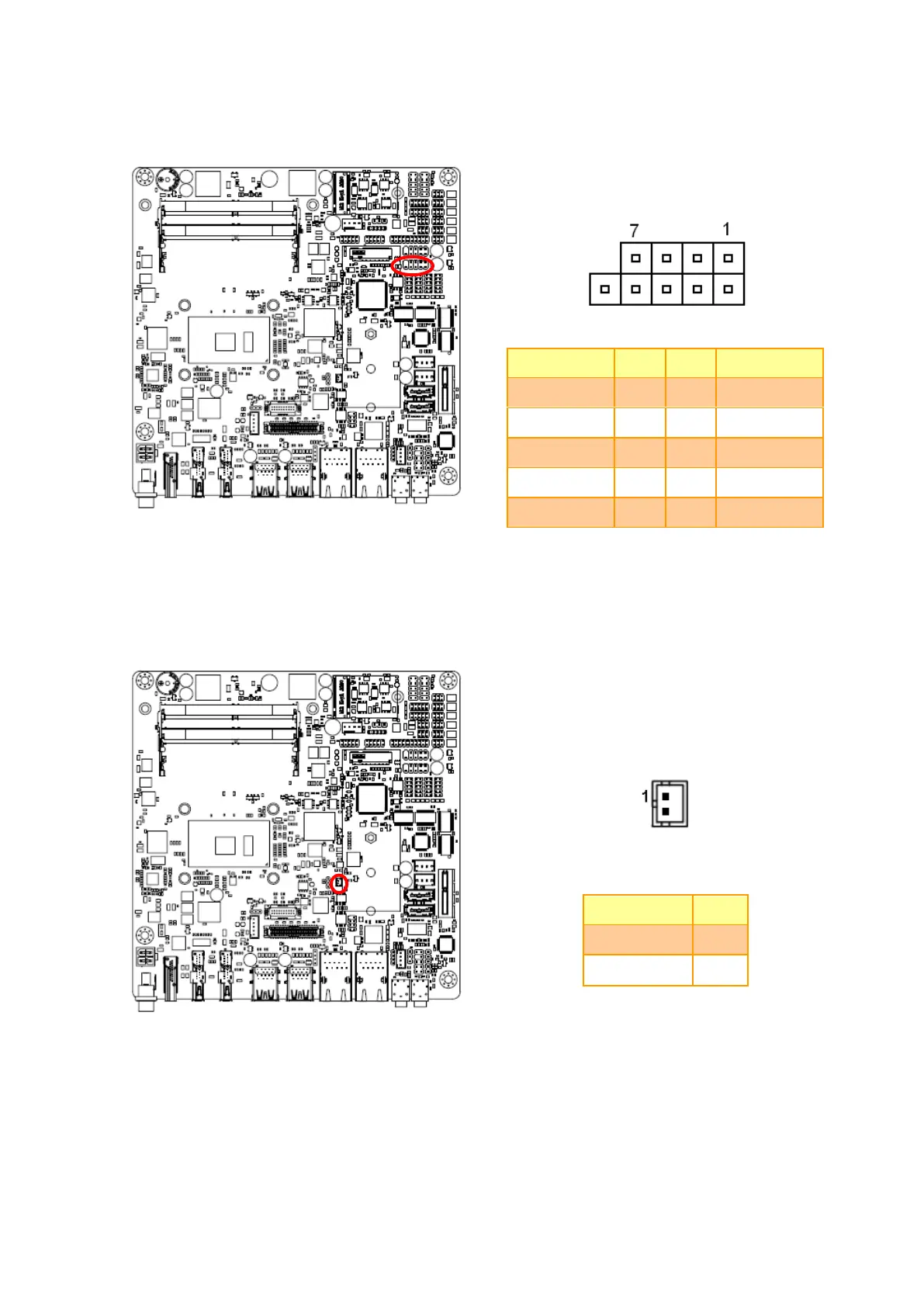

2.3.13 USB connector 4 (USB4)
Signal
PIN
PIN
Signal
+V5A_USB78
1
2
+V5A_USB78
USB_DN9
3
4
USB_DN10
USB_DP9
5
6
USB_DP10
GND
7
8
GND
10
NC
2.3.14 Battery connector (BT1)
Signal
PIN
+3V
1
GND
2
