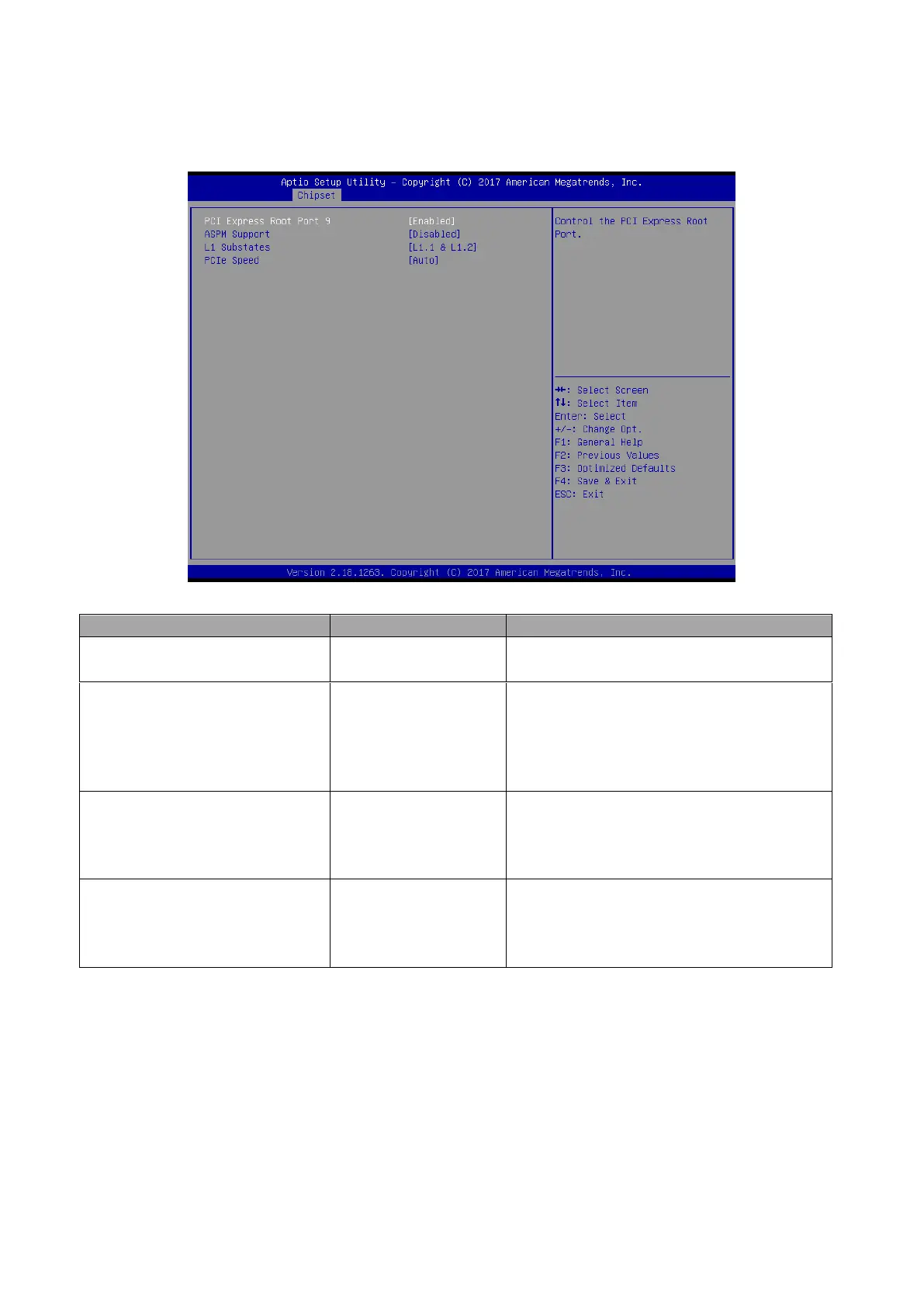

3.6.3.2.1.5 PCI Express Root Port 9 (M.2 KeyA)
Item
Option
Description
PCI Express Root Port 9
Enabled[Default],
Disabled
Control the PCI Express Root Port.
ASPM Support
Disabled[Default]
L0s
L1
L0sL1
Auto,
Set the ASPM Level: Force L0s – Force all
links to L0s State AUTO – BIOS auto
configure DISABLE – Disables ASPM.
L1 Substates
Disabled
L1.1
L1.2
L1.1 & L1.2[Default]
PCI Express L1 Substates settings.
PCIe Speed
Auto[Default]
Gen1
Gen2
Gen3
Select PCI Express port speed.
