10. Using the screws from the rack mount kit, secure the Engine to the front of the rack through top and bottom

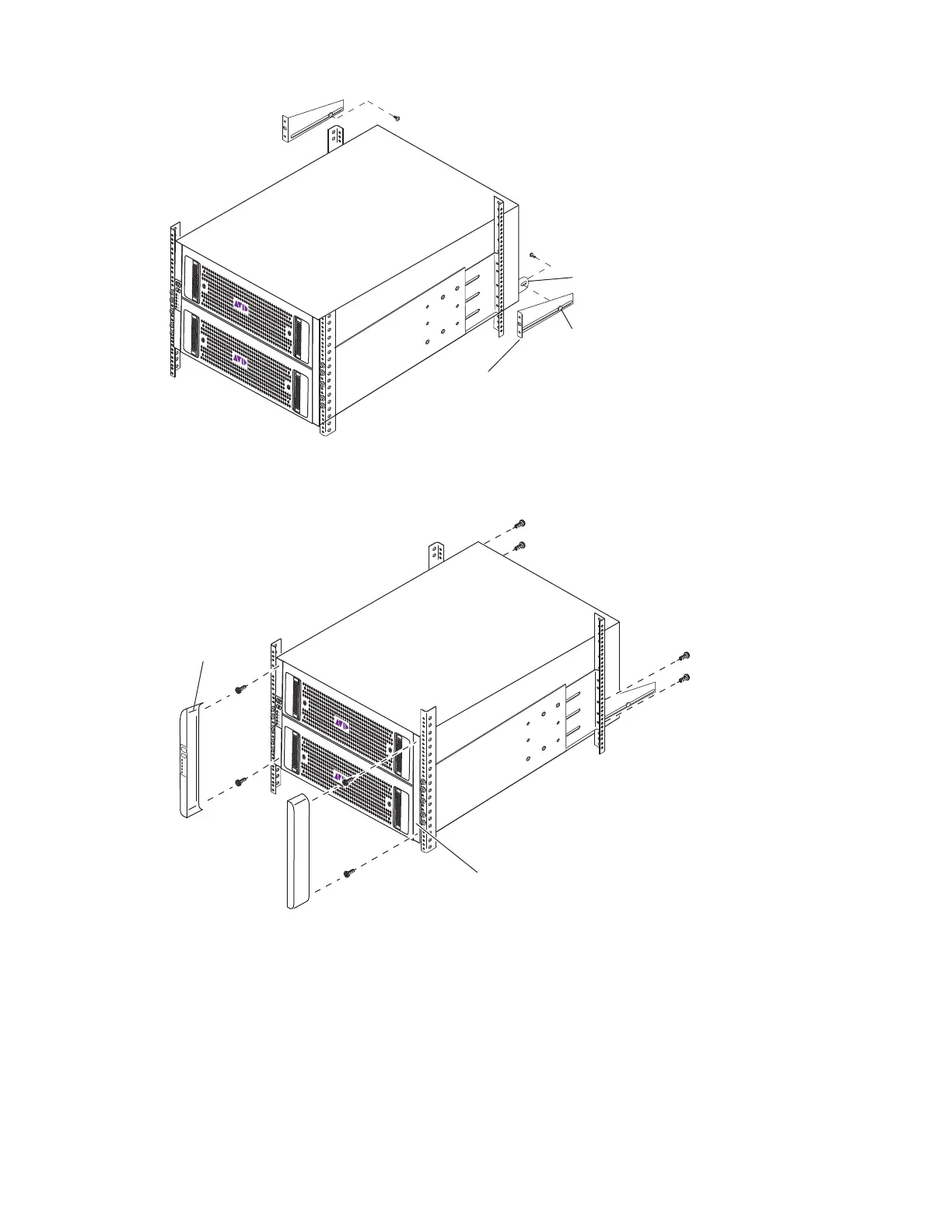

holes of the plastic end caps as shown in the following figure.
11. Using the screws from the rack mount kit or screws you supply, secure the rear stabilizer brackets to the rear
rack mount rails through top and bottom holes in the extender bracket as shown in the preceding figure.
12. Snap the left and right plastic covers over the plastic end caps on the front Engine as shown in the preceding
figure.
Bracket extender
Rack mounting tab
Sliding nut
Plastic covers
Plastic end caps
