Avigilon 2.0C-H6SL-D1 User Manual

1.
1-1/2” NPS thread mount
Female NPS thread mount for pendant camera installations.
2.
Pendant wall mount screws
Screws for securing the pendant wall mount to the mounting bracket.
3.
NPT pipe entry hole
A 3/4” NPT threaded hole for NPT pipe conduits.

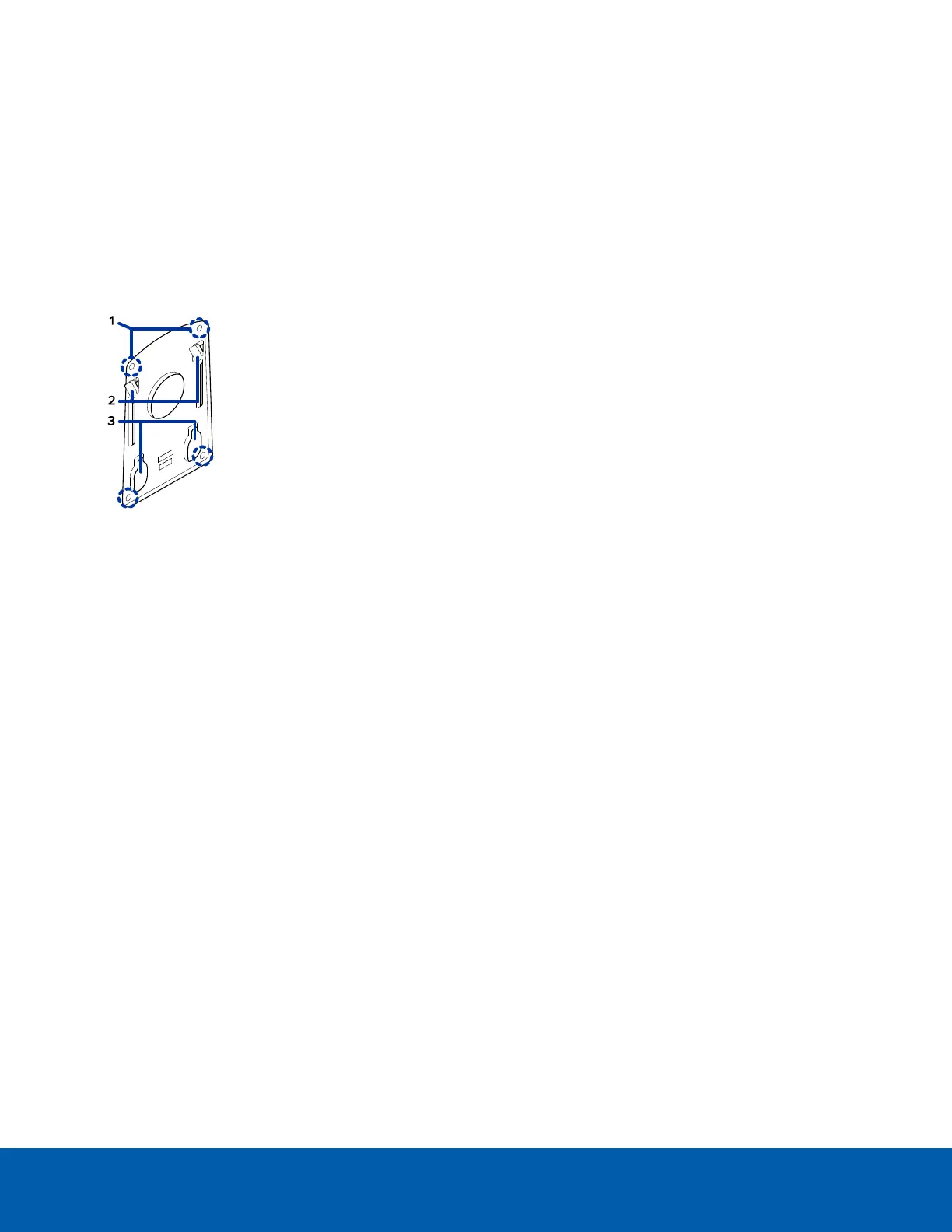

Pendant Wall Mount Bracket View
1.
Bracket mounting holes
Points for mounting the pendant wall mount bracket to a mounting surface.
2.
Mounting tabs
Tabs for placing the pendant wall mount onto the bracket.
3.
Mounting points
Points for securing the pendant wall mount to the mounting bracket.
Pendant Wall Mount Bracket View 14
