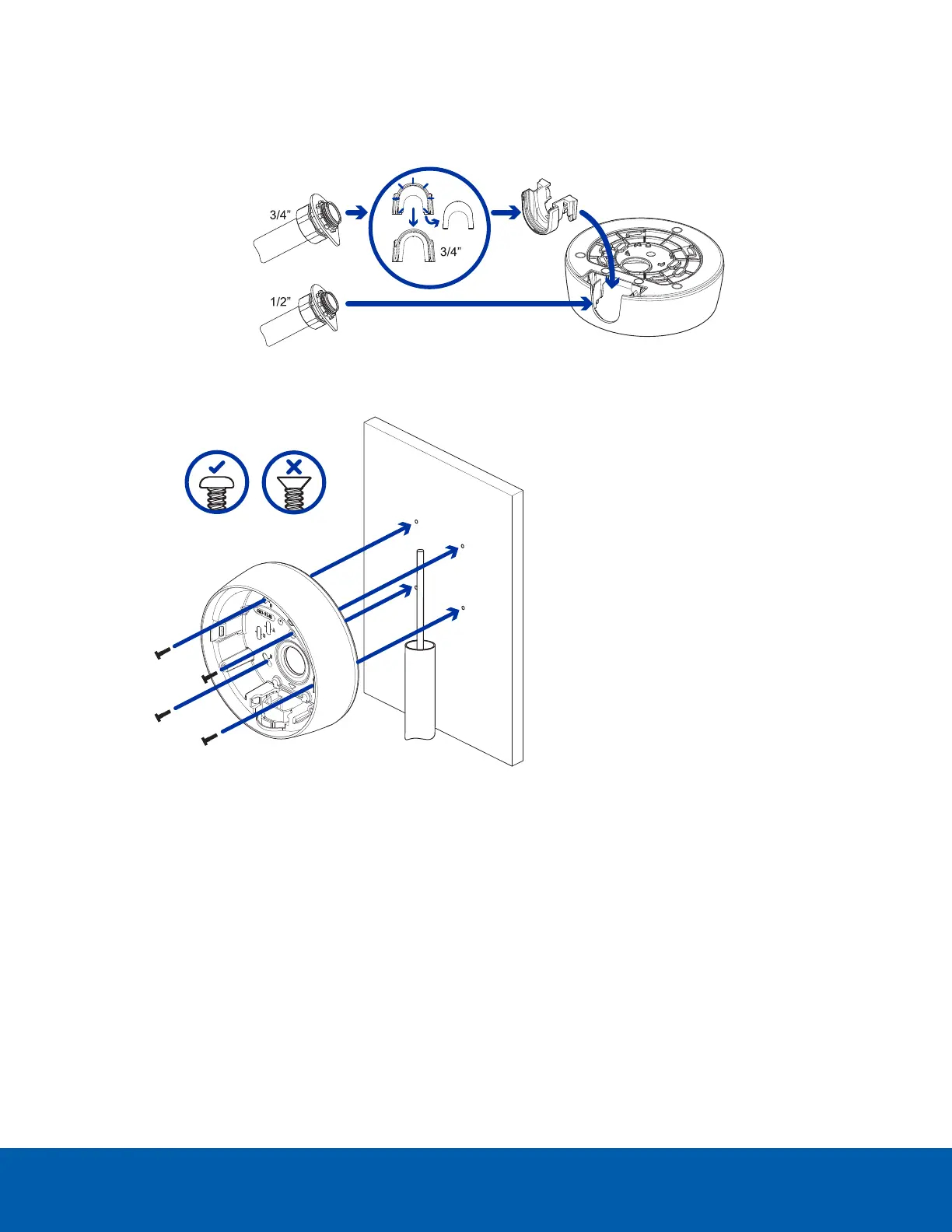

For a 3/4" conduit, remove the center knockout piece on the side conduit cover. Next,
install the side conduit cover on to the mounting adapter.
A 1/2" conduit will fit into the mounting adapter without a side conduit.
5. Drive 4 screws to fasten the mounting adapter to the ceiling or wall.
Mounting the Dome Camera to an Electrical Box
Perform the following steps if the required electrical components and cables will be contained in an electrical
gang box inside the mounting surface.
1. Pull the required cables through the cable entry hole.
2. Use pan head screws to install the mounting adapter to the electrical box.
Select the hole configuration that matches the electrical box shape:
A — UK standard single gang box
B — Octagon gang box
D — US standard single gang box
Mounting the Dome Camera to an Electrical Box 22
