(Optional) Mounting the Dome Camera to the Pendant Wall Mount

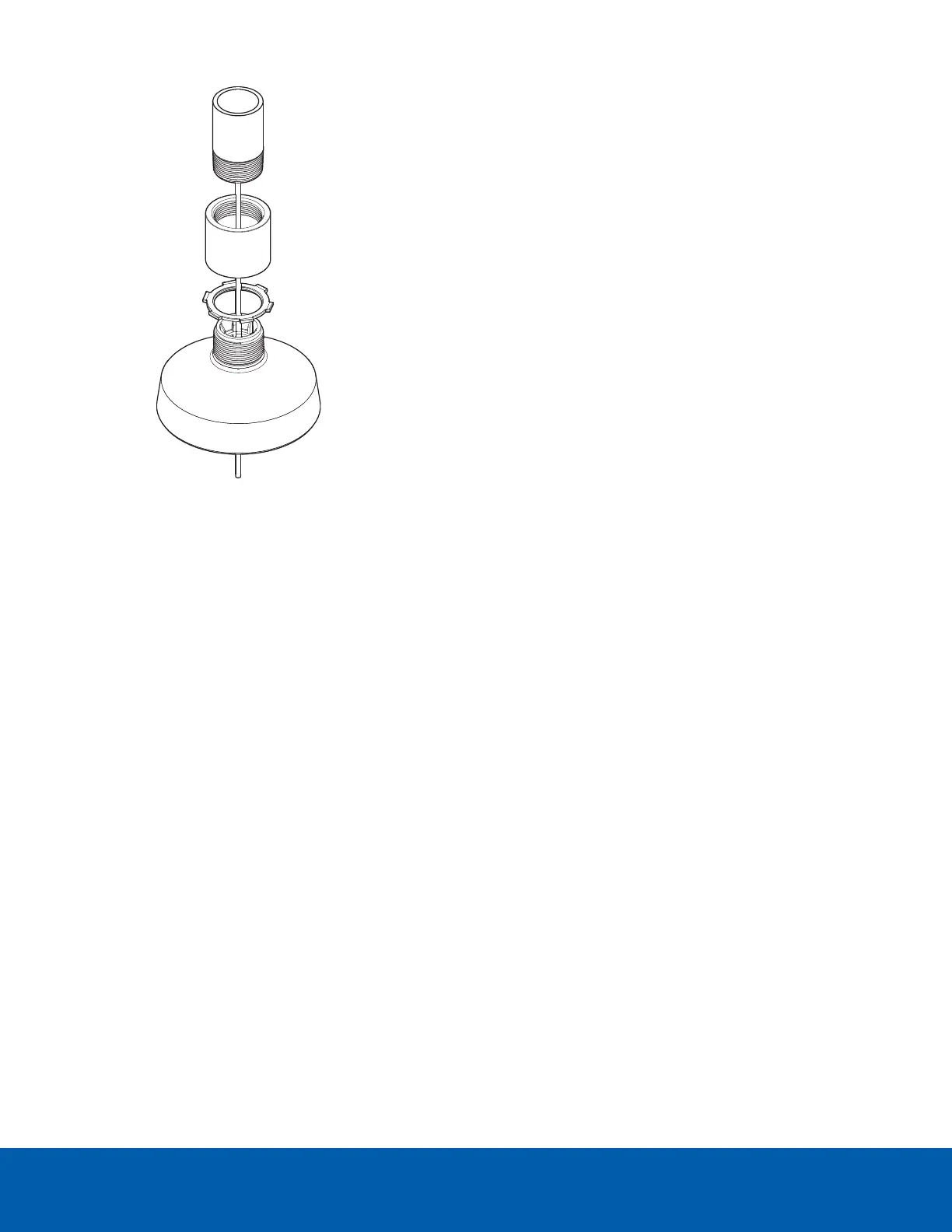

If the dome camera will be using the pendant wall mount, you will need to install the NPT adapter as well.
1. Determine where the cables will enter the pendant wall mount.
l
If the cables will be pulled from inside the mounting surface, use the cable entry hole at the rear
of the pendant wall mount.
l
If the cables will be coming out of an external conduit pipe, use the 3/4” NPT pipe entry hole on
the bottom of the pendant wall mount.
2. Use the provided mounting template to drill four mounting holes into the mounting surface.
l
If you are using the rear cable entry hole, also drill the cable entry hole into the mounting
surface.
(Optional) Mounting the Dome Camera to the Pendant Wall Mount 33
