shown in the image.

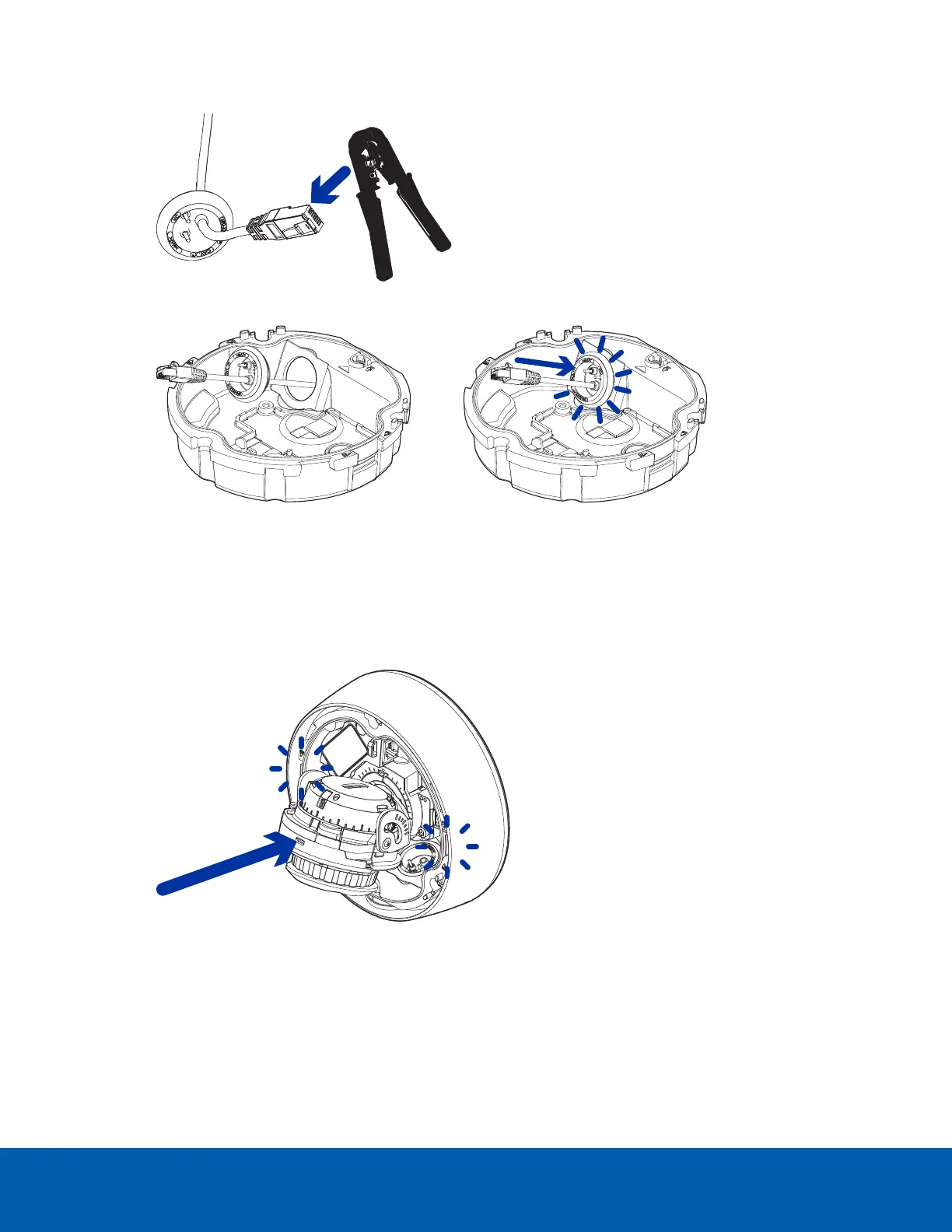

5. Install the grommet into the cable entry hole on the camera base.
Make sure the grommet is securely seated on the inside and outside of the cable entry hole. Apply
silicone sealant to seal any gaps in the grommet.
6. Connect the network cable to the camera's Ethernet port.
The Link LED will turn on once a network link has been established.
7. Align the arrow on the camera base to the side cable entry hole on the mounting adapter then press
the camera base into the mounting adapter. The camera base clicks into place and is held securely.
Installing the Camera Base to the Mounting Adapter 24
