SP-OUT Mod.:
for pole installation
(item 1135106)
ST-OUT Mod.:
for wall fixing of
an electric tube
(item code 1135108)

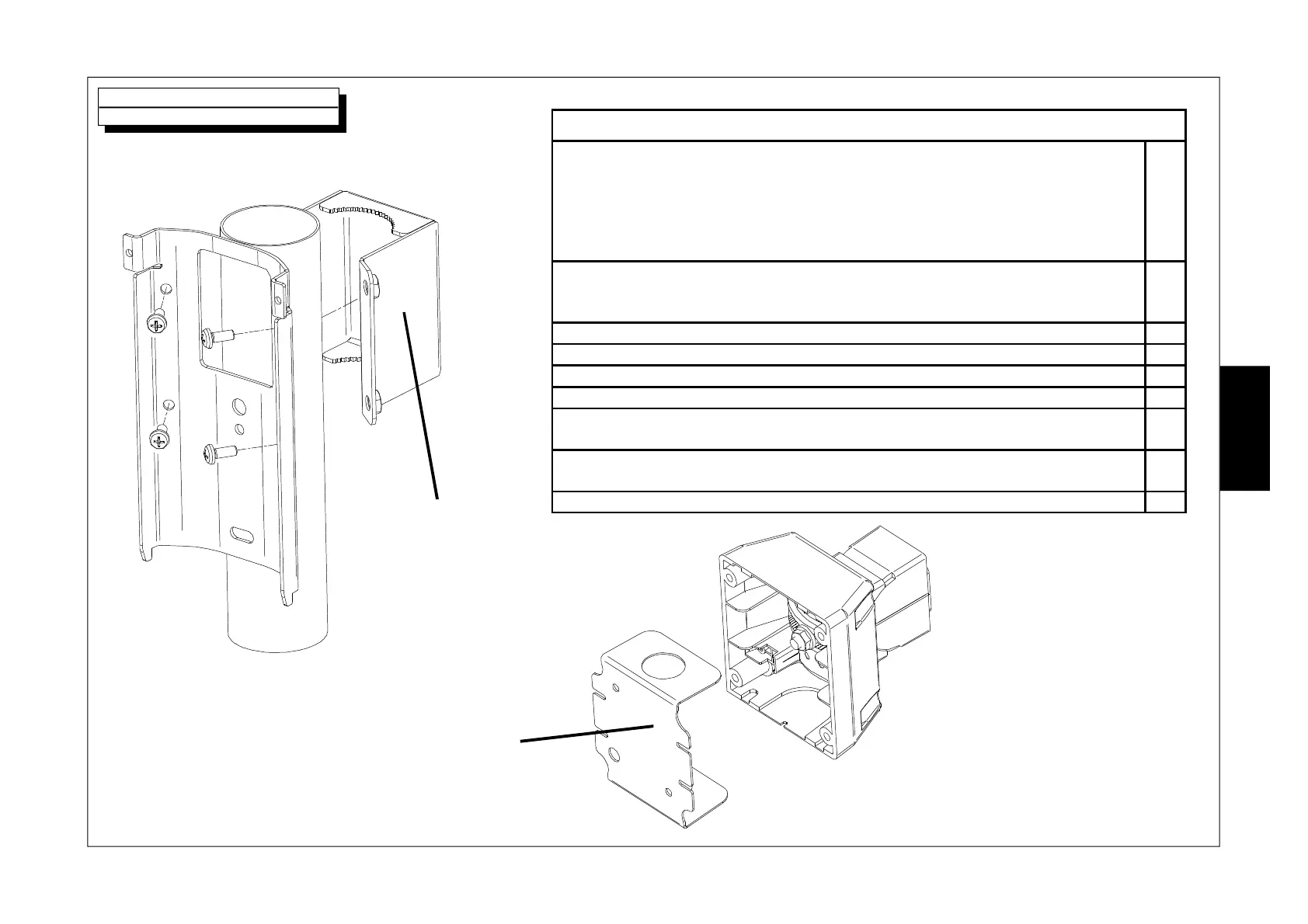

SUPPLIED ACCESSORIES
JOINT made up of:
A. Wall bracket
B. Intermediate joint
C. Sensor-side joint
D. Stainless steel TC-C M6 screw
E. Stainless steel M6 nut
F. Toothed washer
1
1
1
1
1
1
TAMPER made up of:
A. Tamper guide
B. button with spring
C. Self-threading screw TCC 2.9 x 9.5
1
1
1
5° opening lens, 15 meter capacity
BARRIER LENS 1
5° opening lens, 23 meter capacity
LONG RANGE lens 1
90° opening lens, 15 meter capacity
ANIMAL ALLEY lens 1
To fix sensor to the plate
Stainless steel M4 x 10 screw 2
To fix cover
To fix joint to sensor
Stainless TC-C X Plastic 4X16 screw
Stainless TC-C X Plastic 4X16 screw
1
2
To fix sensor/joint to the wall
TCC 3.5 X 30 screw
S5 plug
6
6
For power cable passage
Cable gland 1
E
N
G
