Backyard Discovery 1801080 - Page 4

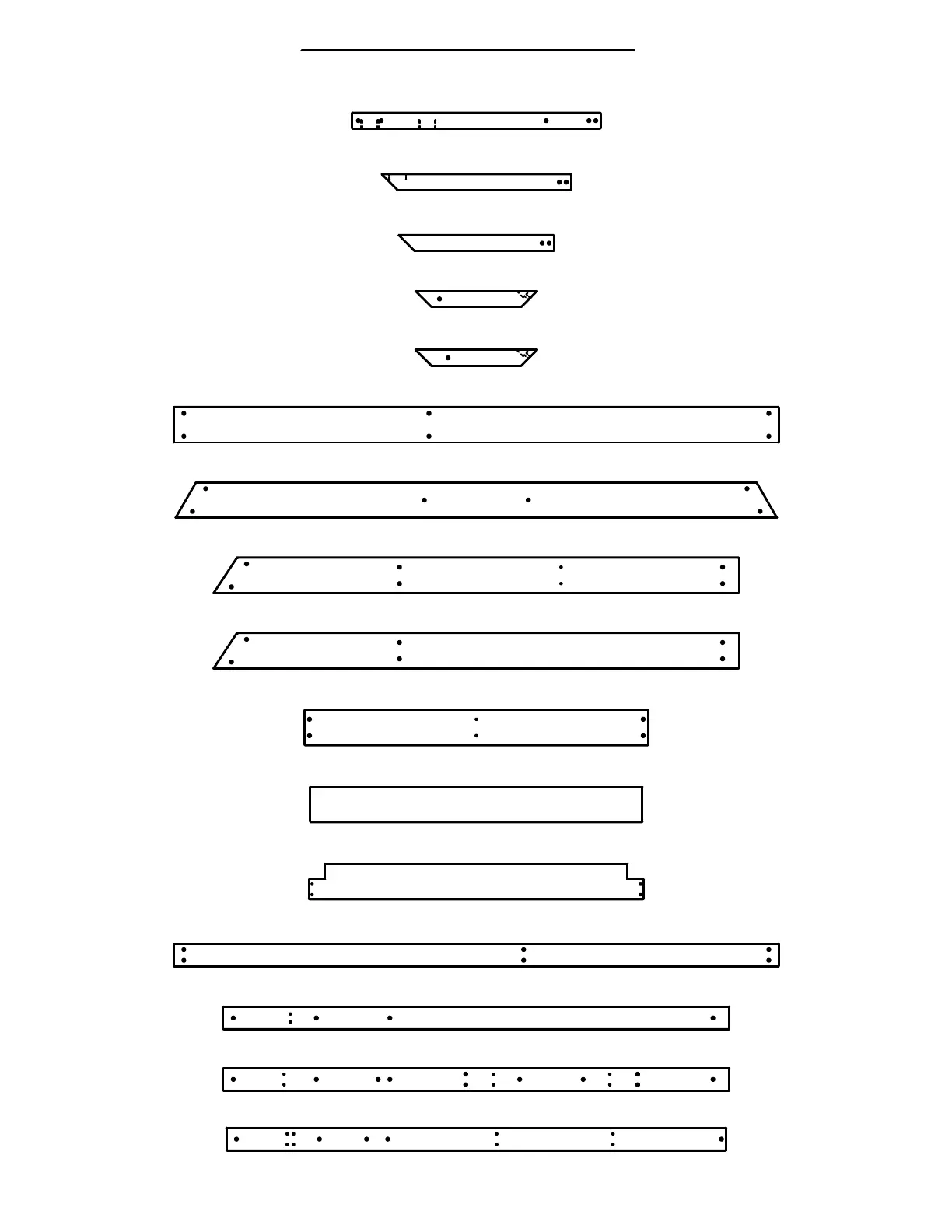

Parts Identification
Wood Components
(NOT TO SCALE)
F5 - BRACE - W4L11187
1 3
/8"x2 3/8"x18 1/8" (36x60x460)
(3)
G6 - FLOOR JOIST - W4L11188
1"x
5 1/4"x49 1/2" (24x134x1256)
(1)
H4 - FLOOR SUPPORT - W4L11190
1"x
3 3/8"x74 3/8" (24x86x1890)
(1)
F4 - UPRIGHT - W4L09063
1 3
/8"x2 3/8"x23 1/8" (36x60x586)
(2)
G1 - GROUND BOARD - W4L09084
1"x5 1/4"x90 1/8" (24x134x2288)
(2)
G2 - GROUND BOARD - W4L09104
1"x5 1/4"x89 1/2" (24x134x2274)
(1)
G3 - GROUND BOARD - W4L09087
1"x5 1/4"x78 1/4" (24x134x1987)
(1)
G4 - GROUND BOARD - W4L09086
1"x
5 1/4"x78 1/4" (24x134x1987)
(1)
G5 - GROUND BOARD - W4L09089
1"x5 1/4"x51 1/8" (24x134x1298)
(1)
G7 - SEAT - W4L11189
1"x5 1/4"x49 7/8" (24x134x1266)
(1)
H1 - FLOOR SUPPORT - W4L09076
1"x3 3/8"x90 1/8" (24x86x2288)
(1)
H2 - FLOOR SUPPORT - W4L09066
1"x
3 3/8"x75 3/8" (24x86x1914)
(1)
H3 - FLOOR SUPPORT - W4L09078
1"x3 3/8"x75 3/8" (24x86x1914)
(1)
F2 - UPRIGHT - W4L11186
1 3
/8"x2 3/8"x37" (36x60x940)
(2)
F3 - UPRIGHT - W4L09093
1 3/8"x2 3/8"x28 1/4" (36x60x716)
(2)
F6 - BRACE - W4L11632
1 3
/8"x2 3/8"x18 1/8" (36x60x460)
(2)
4
