3.1.2 Mounting the NextMove ESB-2
Before touching the unit be sure to discharge static electricity from your body
and clothing by touching a grounded metal surface. Alternatively, wear an earth
strap while handling the unit.
Ensure you have read and understood the location requirements in section 3.1.1. Mount the
NextMove ESB-2 using the supplied M4 screws. For effective cooling, the NextMove ESB-2
must be mounted on a smooth non-flammable vertical surface. Orientation must be as
shown in Figure 1, with the two slots in the metal carrier / heat sink assembly at the bottom.

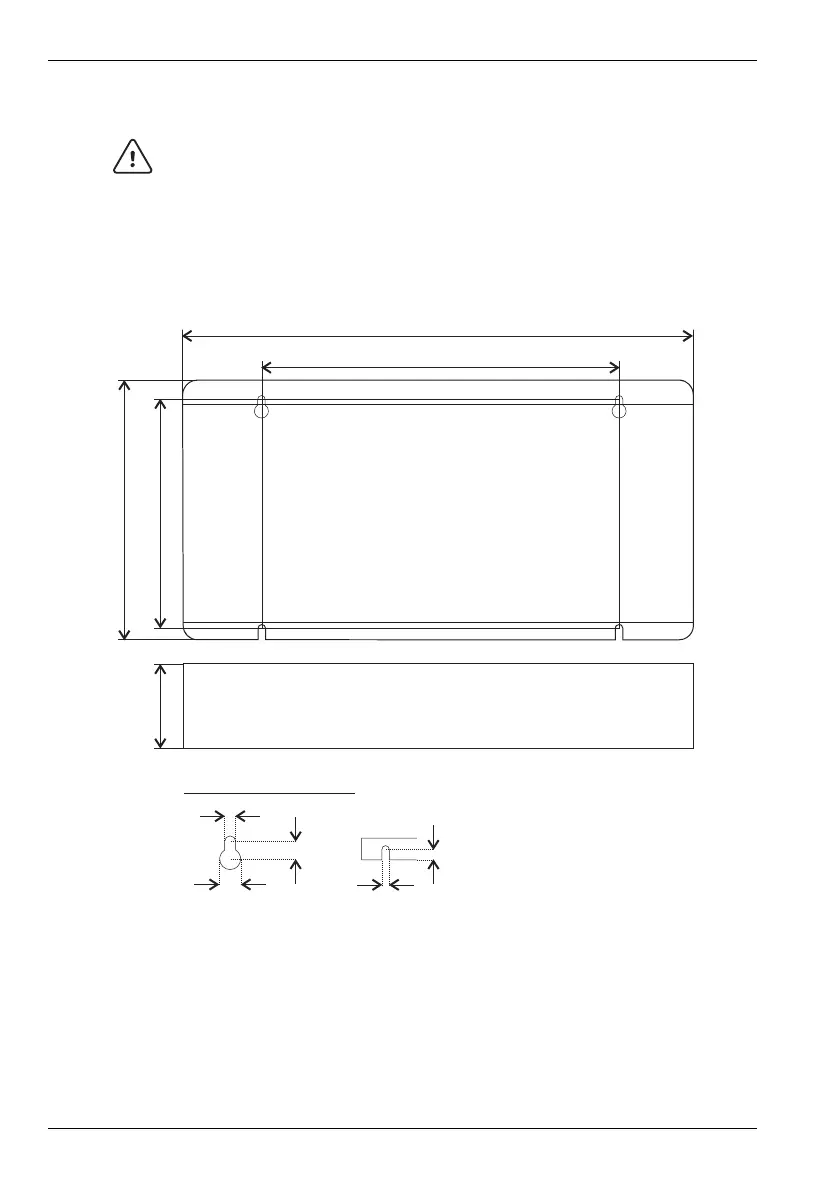

Figure 1: Package dimensions
There must be at least 20 mm (0.8 in) clearance between the NextMove ESB-2 and
neighboring equipment to allow sufficient cooling by natural convection. Remember to allow
additional space around the edges to accommodate the mating connectors and associated
wiring. For example, 70 mm (2.8 in) clearance will be required for connection of the serial
port cable.
All dimensions shows as
mm (inches)
170 (6.7)
245 (9.65)
140 (5.51)
124 (4.9)
45 (1.8)
Mounting keyhole and slot detail
A = 4.5 mm
B=10mm
C=11mm
D = 6.5 mm
Drawings not to scale
A
B
C
A
D
