Baldor NextMove ESB-2 User Manual

MN1957 Input / Output 4-3
www.baldormotion.com
4.2 Analog I/O
The NextMove ESB-2 provides:
 Two 12-bit resolution analog inputs.
 Four 12-bit resolution analog outputs.
4.2.1 Analog inputs
The analog inputs are available on connector X12, pins 1 & 2 (AIN0) and 4 & 5 (AIN1).
 Differential inputs.
 Voltage range: ±10 V.
 Resolution: 12-bit with sign.
 Input impedance: 120 kΩ.
 Sampling frequency: 4 kHz maximum, 2 kHz if both inputs are enabled.
The analog inputs pass through a differential buffer and second order low-pass filter with a
cut-off frequency of approximately 1 kHz.
Both inputs are normally sampled at 2 kHz. However, an input can be disabled by setting
ADCMODE to 4 (_acOFF). With one input disabled, the remaining input will be sampled at
4 kHz. In Mint, analog inputs can be read using the ADC keyword. See the Mint help file for
full details of ADC, ADCMODE and other related ADC... keywords.

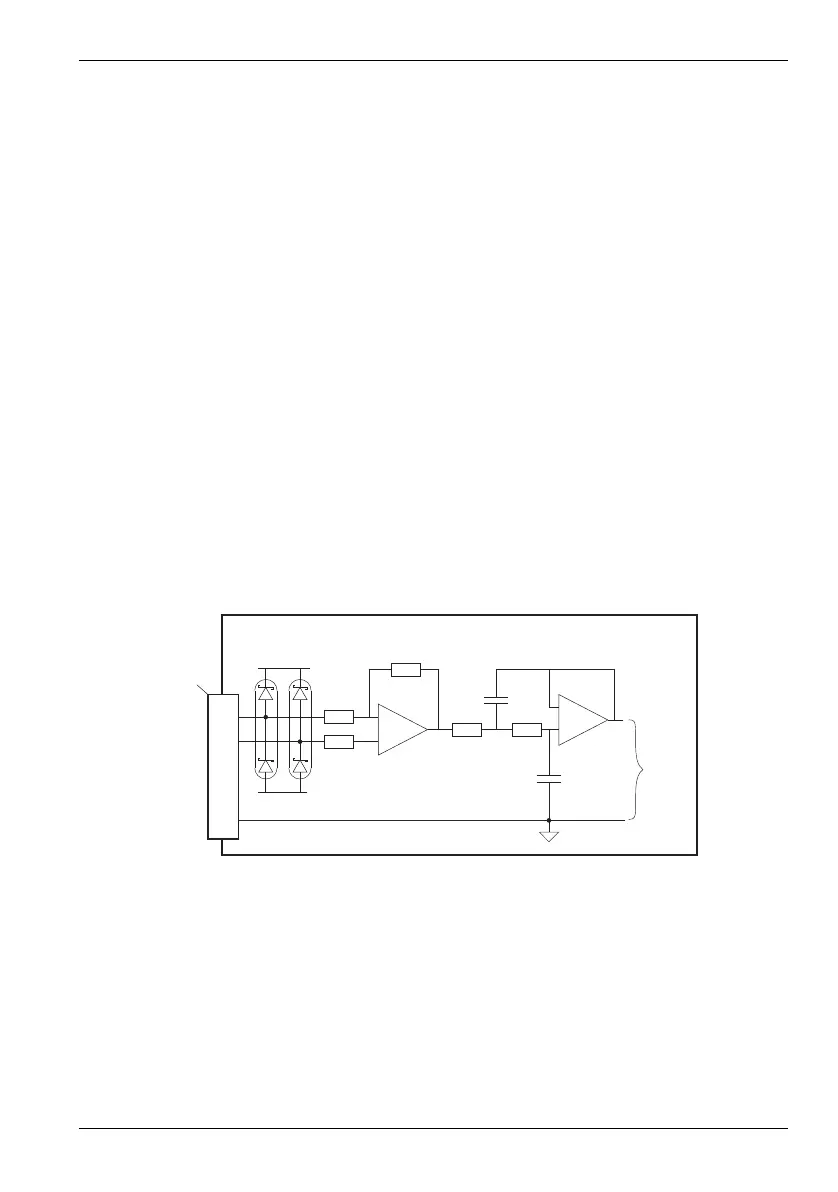

Figure 2: Analog input, AIN0 shown
For differential inputs connect input lines to AIN+ and AIN-. Leave AGND unconnected.
Mint
ADC.0
+15V
NextMove ESB-2
AIN0-
2
X12
1
3
AIN0+
AGND
-15V
-
+
-
+
