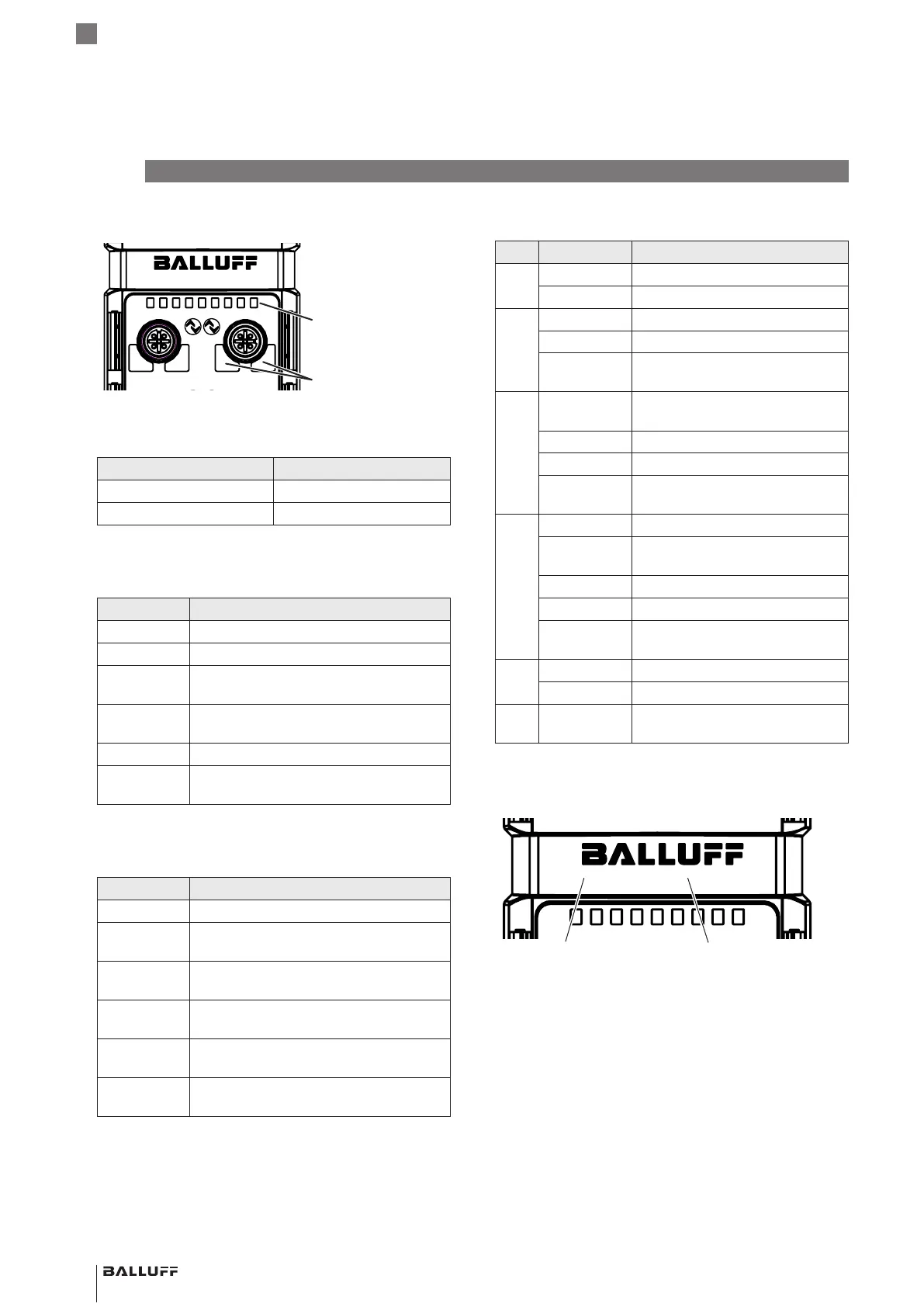

4.3 Display elements
Fig.4-3:
0123
IP
SN
GW
BNI XXX-XXX-XXX-XXX
BNIXXXX
MAC-ID
POWER
OUT
IN
LK2
LK1
00-19-31-XX-XX-XX
4
0
15
14
07
06
13
12
0504
11
1003
02
09
08
01
00
MOD
NET
US LK2 100 LK1 100 UA
1
5
2
6
3
7
S
P
Status LEDs
Port/Pin LEDs:
Status of the IO-Link
and I/O ports
Display elements
Port/Pin LEDs
LED number Assignment
Even Pin4
Odd Pin2
Tab. 4-1: Port/Pin LEDs
Port/Pin LEDs Standard Port
Signal Meaning
Off State of input or output pins is 0
Yellow, static State of input or output pins is 1
Both LEDs
red flashing
Short circuit of sensor supply between
pin1 and pin3
Red, static Short circuit at output on pin2/4 against
pin3
Red, static No high signal at diagnostic input
Red, static 24 V input signal on configured output
(actuator warning)
Tab. 4-2: LEDs Standard Port
Port/Pin LEDs IO-Link Port
Signal Meaning
Green, static IO-Link connection active
Green
flashing
No IO-Link connection or incorrect
IO-Link device
Green, fast
flashing
IO-Link: Preoperate during data storage
Red, fast
flashing
Validation failed / incorrect configuration
of the IO-Link data length
Red, fast
flashing
Data storage failed / incorrect device for
data storage
Red, static IO-Link: Short circuit of pin 4 against pin
3
Tab. 4-3: LEDs IO-Link Port
Status LEDs
LED Signal Meaning
US Green, static Input voltage OK
Red flashing Input voltage low (<18V)
UA Green, static Output voltage OK
Red flashing Output voltage low (<18V)
Red, static No output voltage present
(<11V)
MOD Green
flashing
Incorrect or no module
configuration
Green, static Module in progress.
Red flashing Fixed bus cycle not possible
Red/Green
flashing
Starting sequence
NET Off Module has no IP address.
Green
flashing
Module has an IP address, but no
connection established.
Green, static Connection is established.
Red flashing Connection timeout
Red/Green
flashing
Starting sequence
100 Off Transmission rate: 10Mbit/s
Yellow, static Transmission rate: 100Mbit/s
LK1/2 Green
flashing
Data transfer
Tab. 4-4: Status LEDs
4.4 Labeling
Fig.4-4:
0123
IP
SN
GW
BNI XXX-XXX-XXX-XXX
BNIXXXX
MAC-ID
POWER
OUT
IN
LK2
LK1
00-19-31-XX-XX-XX
4
0
15
14
07
06
13
12
0504
11
1003
02
09
08
01
00
MOD
NET
US LK2 100 LK1 100 UA
1
5
2
6
3
7
S
P
Order code Type
Labeling (example)
4
Product description (continued)
BNI EIP-508- _ 05-Z015- _ _ _
Network interface
