www.balluff.com 25english
6
Start-up and operation on a Rockwell RSLogix controller (continued)
6.5.2 Explicit messages

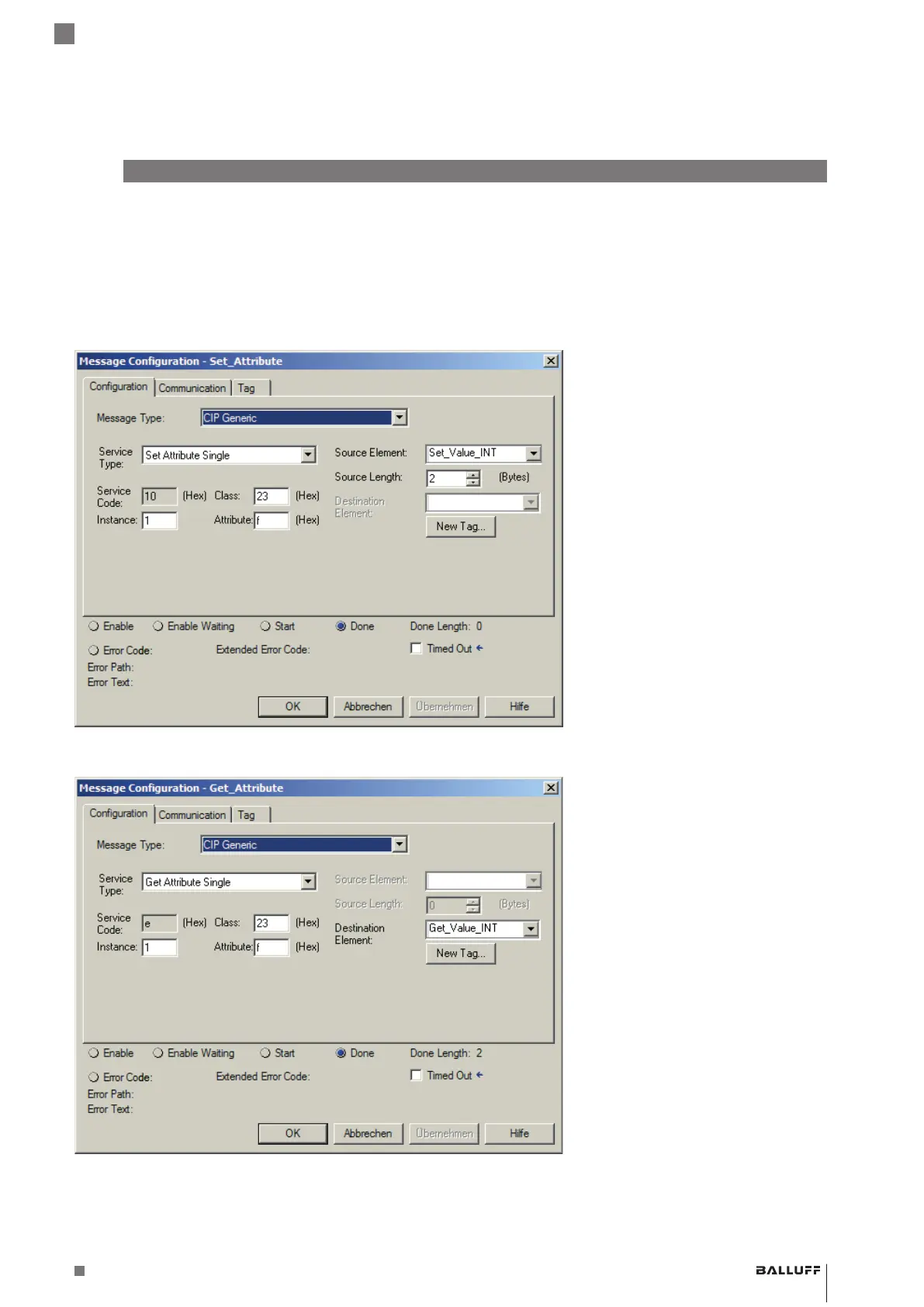

Explicit messages can be declared with the MSG block.
Two call ups of the MSG block in the main program are
implemented as examples. For details, see the
configuration program documentation.
Attributes are read analogously:
Here the previously written value is read back into the
Get_Value_INT variable.
In the example, the Position Sensor Object, instance 1,
attribute 15 (0xf) Position Format is set to the value in
Set_Value_INT. The BTL7-V50D-… must be selected in
the Communication tab.
BTL7-V50D-…
Configuration Manual
