Bally ALPHA 2 Pro Wave - Lock and Cam Specifications

ALPHA 2 Pro™ Wave Operator’s Instruction Manual
8 MKT-AH-1CC40ST [A]

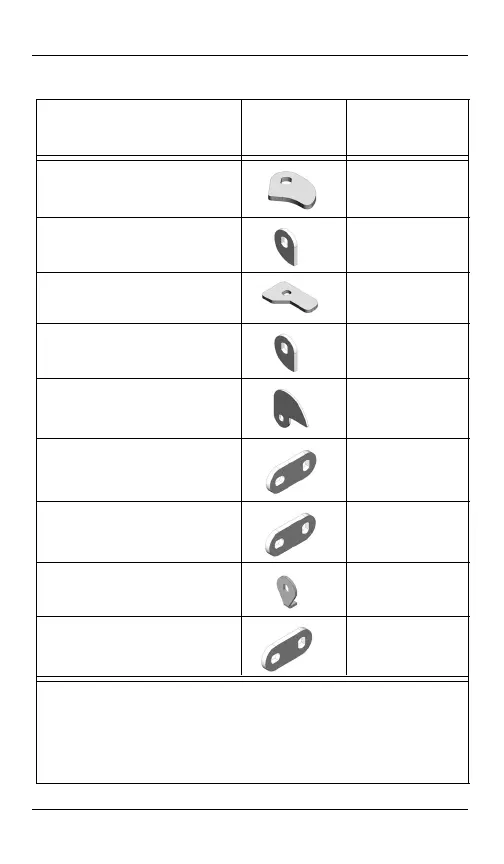

Lock and Cam Specifications
Lock
Location
Cam
Illustration
Cam
Part Number
Upper Door Lock (Right Turn) 237902
Optional Upper Door
Secondary Lock (Right Turn)
237904
Cam Middle Door Lock (Left
Turn)
237627
Optional Middle Door
Secondary Lock (Left Turn)
237904
Lower Door Lock (DROP)
(Right Turn)
237511
Bill Acceptor Cash Box Access
Door Lock (Right Turn)
200454
Optional Second Bill Acceptor
Cash Box Access Door Lock
(Right Turn)
200454
Flash Media Module (Right
Turn)
200125
MPU Housing (Left Turn) 200454
TIP: To avoid delays, purchase your machine locks well before
your planned installation date. Purchase several spare machine
locks from your lock manufacturer and keep them available. If
necessary, use a 1.6 mm lock spacer (200455) or a 28.6 mm lock
and 12.7 mm spacer (202035-00003 and S-00231-984). See your
Parts book for additional lock and cam information.
