ALPHA 2 Pro™ Wave Operator’s Instruction Manual
MKT-AH-1CC40ST [A] 29
Circuit Board Reference
For reference only. See your Parts book for parts specific to your machine.

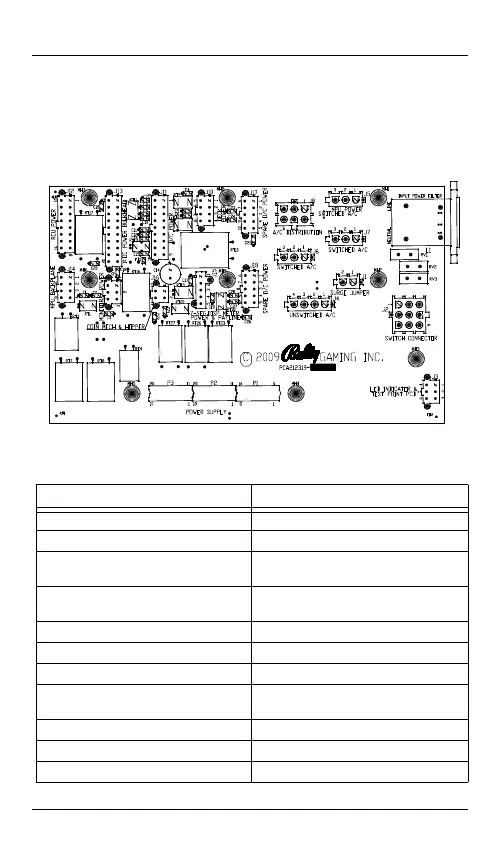

Power Backplane Board (PCA212319-0-0)
Connectors for Power Backplane Board (PCA212319-0-0)
Connector Usage
J1 SURGE JUMPER Surge Jumper Connector
J2 SWITCH CONNECTOR —
J3 LED INDICATOR AND TEST
POINT PCB
LED Indicator Light and Test
Point PCB Connector
J4 UNSWITCHED CONNECTOR
A/C
Power Connector
J5 MPU POWER SWITCHED A/C MPU Power Connector
J6 SWITCHED A/C Switched AC Power
J7 SWITCHED A/C Switched AC Power
J8 A/C DISTRIBUTION
AC Power Distribution
Connector
J9 MONITOR POWER Monitor Power Connector
J10 DECK POWER Deck Power Connector
J11 DC POWER DC Power Connector
