ALPHA 2 Pro™ Wave Operator’s Instruction Manual
MKT-AH-1CC40ST [A] 37
Cable Connector and Flash Media
Socket Reference
For reference only. See your Cables and Boards book for cables
specific to your machine.

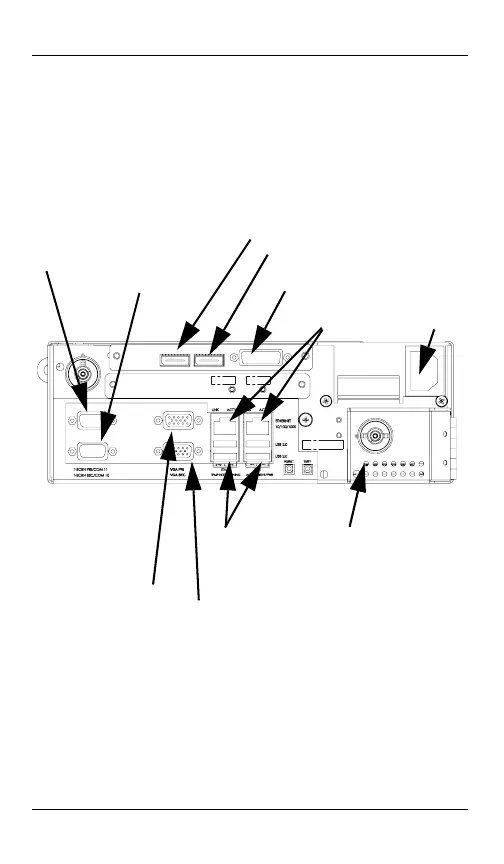

ALPHA 2.1 MPU Assembly (226458)
Power
Flash Media Sockets
(Behind the Logic Door)
Top Socket-Installation
Bottom Socket-OS and
Game Theme
Display Port Video Interface,
Secondary (top monitor)
USB (4 ports)
Touchscreen, Secondary
Touchscreen, Primary
Monitor, Secondary
Monitor, Primary
DVI-I Video Interface
(not used)
Display Port Video Interface,
Primary (bottom monitor)
Ethernet (2 ports)
