Removing the Upper Door
STEP 1. Disconnect all cabling connecting the cabinet to
power sources.
STEP 2. Open the upper door.
STEP 3. Disconnect all cabling connecting the upper door to
the rest of the cabinet.

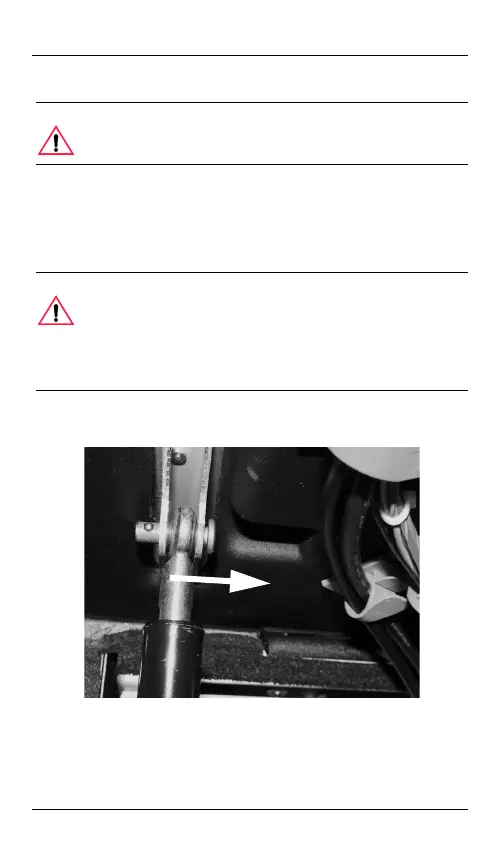

STEP 4. Unfasten the door struts by pushing the clevis pin
towards the center of the cabinet to remove. Save the
pin for future use.
STEP 5. Repeat step 3 for the strut on the opposite end of the
cabinet.
CAUTION
The upper door is large and heavy. To prevent
injury or damage, enlist the aid of another
technician during removal.
CAUTION
The gas springs are not attached to the cabinet. To
prevent injury or damage, hold and lower the
struts.
The upper door is not attached to the cabinet. To
prevent injury or damage, have a technician hold
each side of the upper door firmly.
