Banner A-GAGE MINI-ARRAY MAC Series - Emitter and Receiver Dimensions

10 P/N 43298 rev. E
Banner Engineering Corp. •Minneapolis,MNU.S.A.
www.bannerengineering.com•Tel:763.544.3164
MINI-ARRAY
®
InstructionManual
2.2 Emitter and Receiver Dimensions
Specifications
With mounting bracket flanges “out”

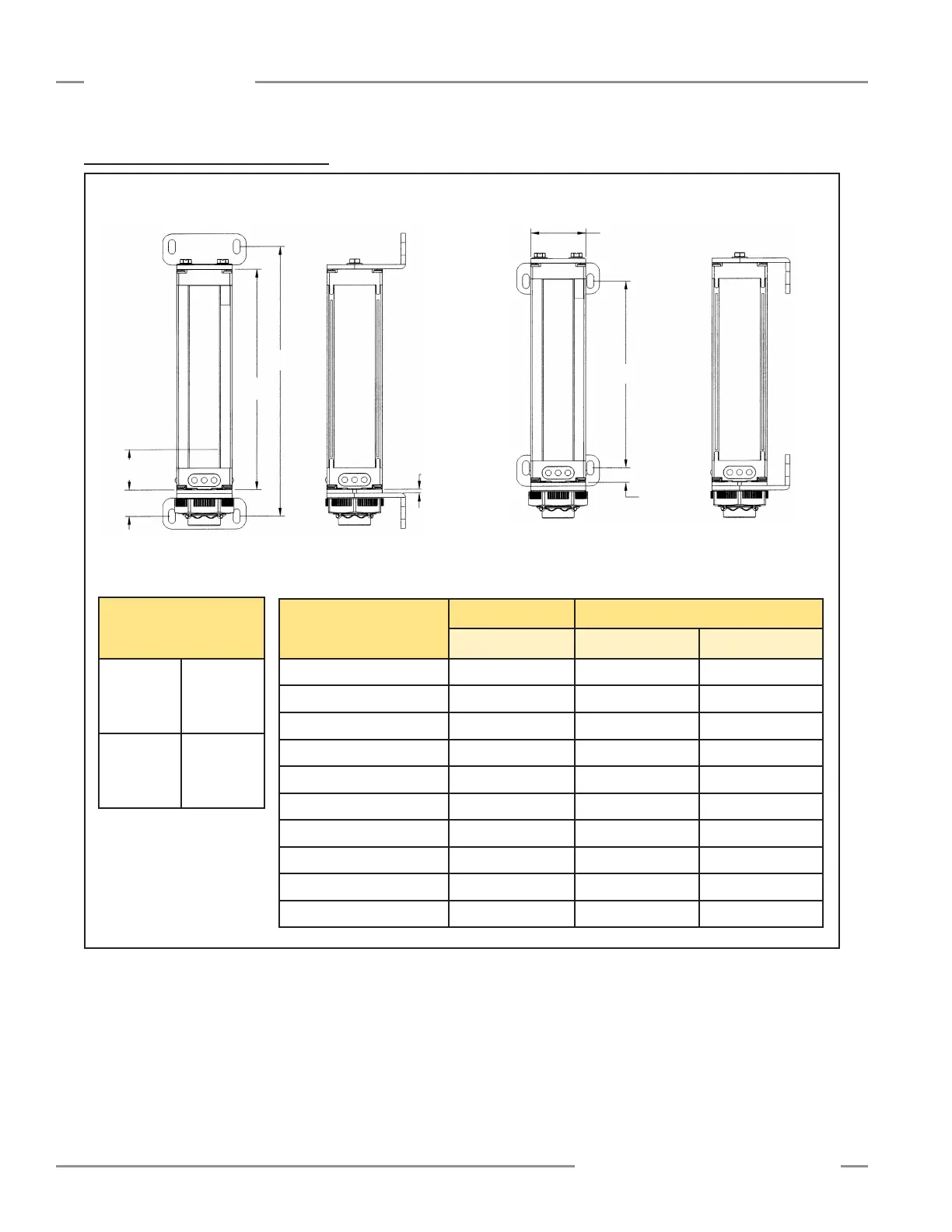

Figure 2-1. Emitter and receiver mounting dimensions and defined area location
With mounting bracket flanges “in”
L2
L1
X
18.3 mm
(0.72")
2.5 mm
(0.10")
38.1 mm Square
(1.50")
10.2 mm
(0.40")
L3
X
(Distance to First
Optical Channel)
9.5 mm
(3/8")
Beam
Spacing
38.1mm
(1.50")
19.1 mm
(3/4")
Beam
Spacing
42.9mm
(1.69")
Emitter/Receiver Models
Housing Length Distance Between Bracket Holes
L1 L2 L3
BMEL6..A / BMRL6..A
201.0mm(7.9") 233.9mm(9.21") 177.0mm(6.97")
BMEL12..A / BMRL12..A
356.0mm(14.0") 389.7mm(15.35") 332.8mm(13.1")
BMEL18..A / BMRL18..A
505.0mm(19.9") 538.7mm(21.22") 481.8mm(18.97")
BMEL24..A / BMRL24..A
659.0mm(26.0") 693.2mm(27.31") 636.3mm(25.05")
BMEL30..A / BMRL30.A
810.0mm(31.9") 843.5mm(33.23") 786.6mm(30.97")
BMEL36..A / BMRL36.A
963.0mm(37.9") 997.4mm(39.29") 940.5mm(37.0")
BMEL42..A / BMRL42.A
1115.0mm(43.9") 1148.0mm(45.2") 1091.0mm(43.0")
BMEL48..A / BMRL48.A
1267.0mm(49.9") 1301.0mm(51.2") 1244.0mm(49.0")
BMEL60..A / BMRL60..A
1572.0mm(61a.9") 1606.0mm(63.2") 1549.0mm(61.0")
BMEL72..A / BMRL72..A
1877.0mm(73.9") 1910.0mm(75.2") 1853.0mm(73.0")
