MINI-ARRAY
®
InstructionManual

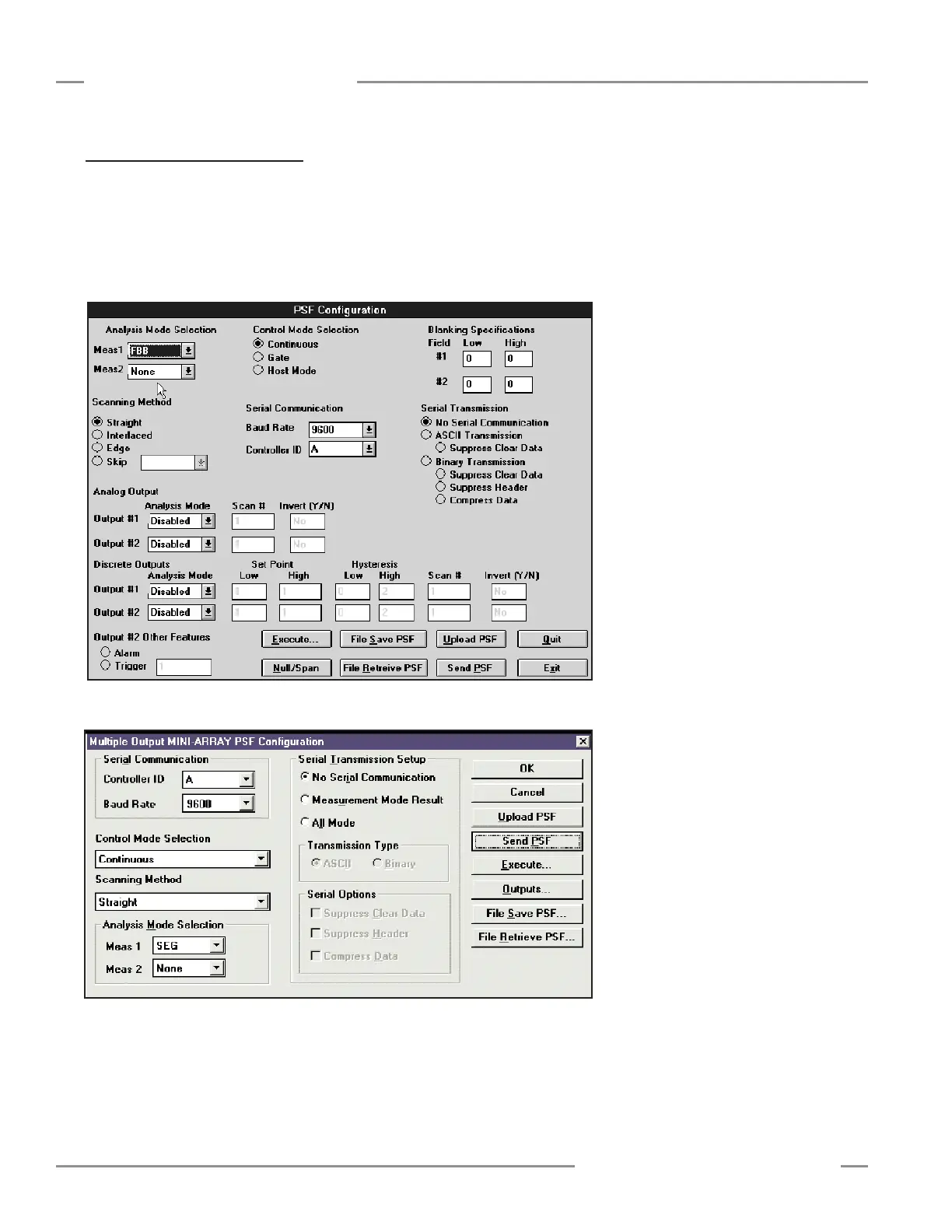

Figure 5-6. MINI-ARRAY software PSF Configuration (models MAC16N-1 and MAC16P-1)
Figure 5-5. MINI-ARRAY software PSF Configuration (models MAC-1, MACP-1, MACN-1,
MACV-1, and MACI-1)
5.4 Parameter Setup Files (PSFs)
TheinputandoutputresponseoftheMACcontrollerisprogrammedusingthePSF
Configuration screenshowninFigure5-5(modelsMAC-1,MACN-1,MACP-1,
MACV-1,andMACI-1)andFigure5-6(modelsMAC16N-1andMAC16P-1).
ToaccessthePSFConfigurationscreen,selectEditPSFundertheMINI-ARRAYMain
menu(Figure5-2),orpresstheF4key.Thechartonpage24liststheprogrammable
functions.Section5.5describesthemindetail.
Controller Configuration
