MINI-ARRAY
®
InstructionManual

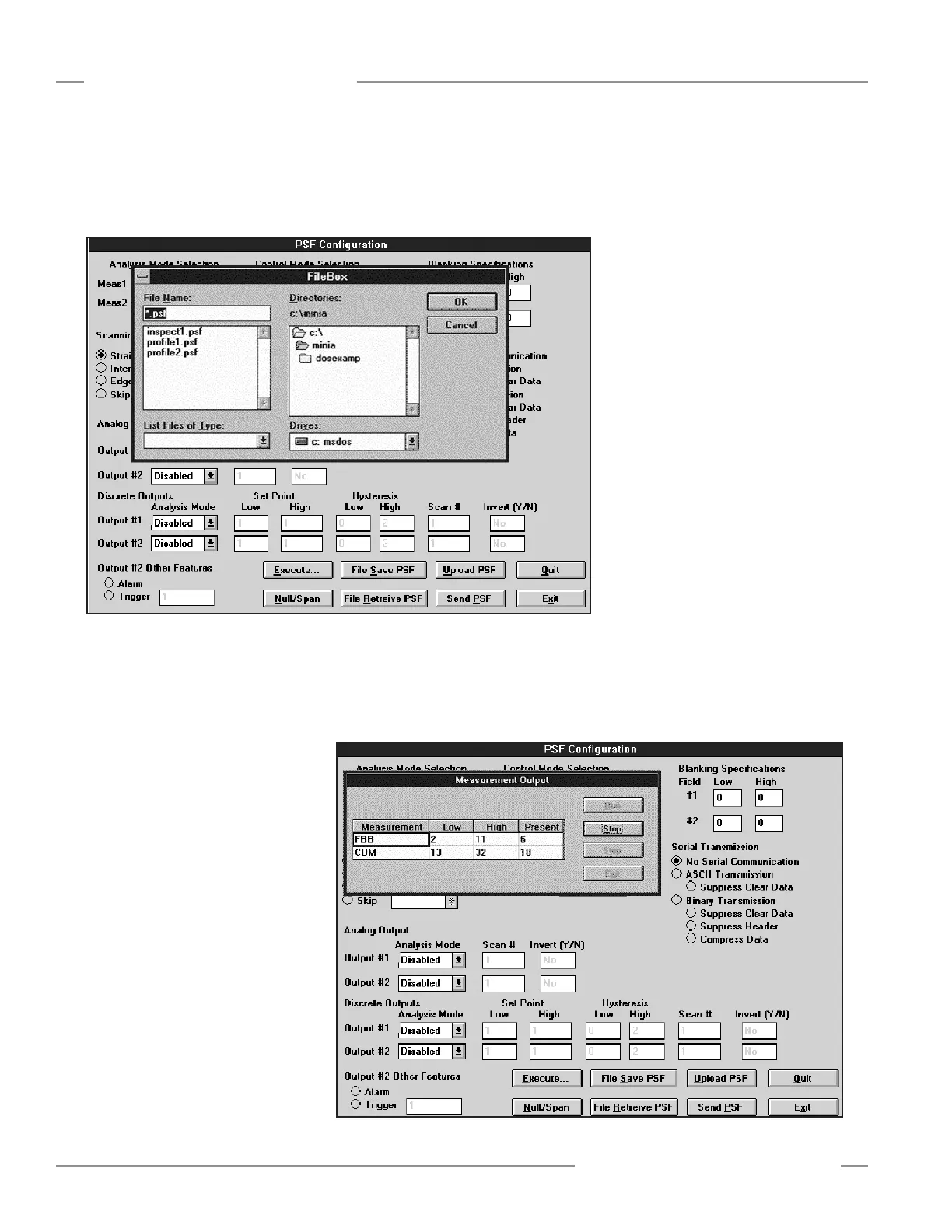

Figure 5-22. MINI-ARRAY software: Retrieve PSF screen
Retrieving a PSF from Disk
ToretrieveafiledPSF,selectFile Retrieve PSF.TheFileBoxsubscreenwillappear
(Figure5-22).SelectthedesiredPSFfromtheFile NamelistandthenselectOKor
presstheEnterkey.TheselectedPSFwillloadtothePSFConfigurationscreenand
canbeloadedintothecontrollerusingtheSend PSFcommand.
PSF Output Analysis
ToviewactivityinthearrayinresponsetothecurrentlyloadedPSF,selectExecute.
TheMeasurementOutputscreenwillappear(Figure5-23).SelectRun. Thetablewill
displaythestatusfortheselectedmeasurementmode(s),includingthePresentvalue,
andtheHighandLowvaluesfortheRun
period.
SelectStoptofreezethedata.SelectStep
toinitiateasinglescanofthearray.This
simulatesa“snapshot”ofwhatisviewed
bythearraywhenStepisselected.
UseoftheExecutecommandis
especiallybeneficialfortestingthe
responseofagatedsystem.Run
simulatestheContinuousscanning
mode,andStepsimulatesagateinput
command.
ToclosethePSFConfigurationscreen,
selecteitherQuitorExit.
Figure 5-23. MINI-ARRAY software: PSF Output Analysis
Controller Configuration
