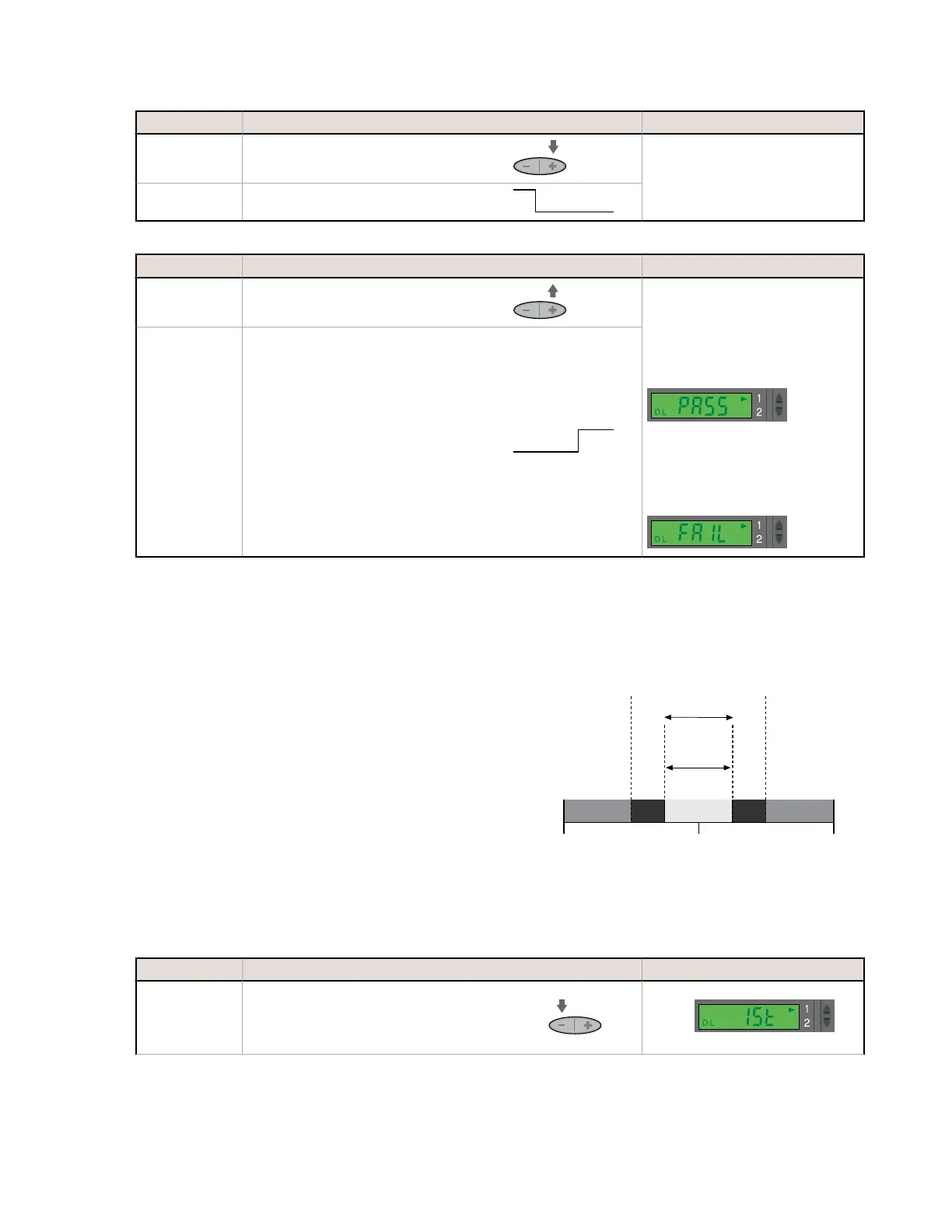

2. TEACH the Sensing Conditions.
Method Action Result
Push Button
Present the Output ON/OFF conditions while
continuing to hold the Dynamic button.
Remote Input
Present the Output ON/OFF conditions while
continuing to hold the remote line low (to ground).
3. Return to RUN Mode.
Method Action Result
Push Button Release the Dynamic button.
TEACH conditions accepted
Display flashes “PASS,”
followed by a number (denoting
contrast); see Figure 5 on page
5
Sensor returns to RUN mode
with new settings
Arrow icon turns green
TEACH conditions not accepted
Display flashes “FAIL
Arrow icon remains red
Sensor returns to RUN mode
(Arrow icon turns green)
without changing settings
Remote Input Release the remote line/switch.
Single-Point Window Set
Sets a single ON condition that extends 200 counts above and below the taught condition (including ±100 counts
hysteresis)
All other conditions (lighter or darker) result in OFF output
Sensing window size (sensitivity) is adjustable using “+” and “-” buttons (see Manual Adjust on page 10)
Window Set is most useful when a product may not always appear in
the same place, or when other signals may appear. Window Set
designates a sensing window, with the Output ON condition inside
the window, and the Output OFF conditions outside the window. The
sensor accepts a single sensing condition, and adds switching
thresholds and hysteresis above and below that condition to create a
sensing window. Output ON and OFF conditions can be reversed by
changing Light/Dark Operate status in Setup mode.
Window Set and Manual Adjust
Using Manual Adjust with Window Set expands or contracts the size
of the window.
Sensor positions
window thresholds
± 100 counts from the
presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Taught
Condition
200 counts
Hysteresis
100 counts
Hysteresis
100 counts
Output OFF Output OFFOutput ON
Sensing window size adjusted by
Manual Adjust
Figure 6. Single-Point Window SET and Hysteresis (Light
Operate shown)
1. Access the SET Mode.
Method
Action Result
Push Button Press and hold the Static (-) button > 2 seconds.
Display flashes “1St
Arrow icon turns red
D10 Expert
– Dual Discrete Outputs
6 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 64154 Rev. G
