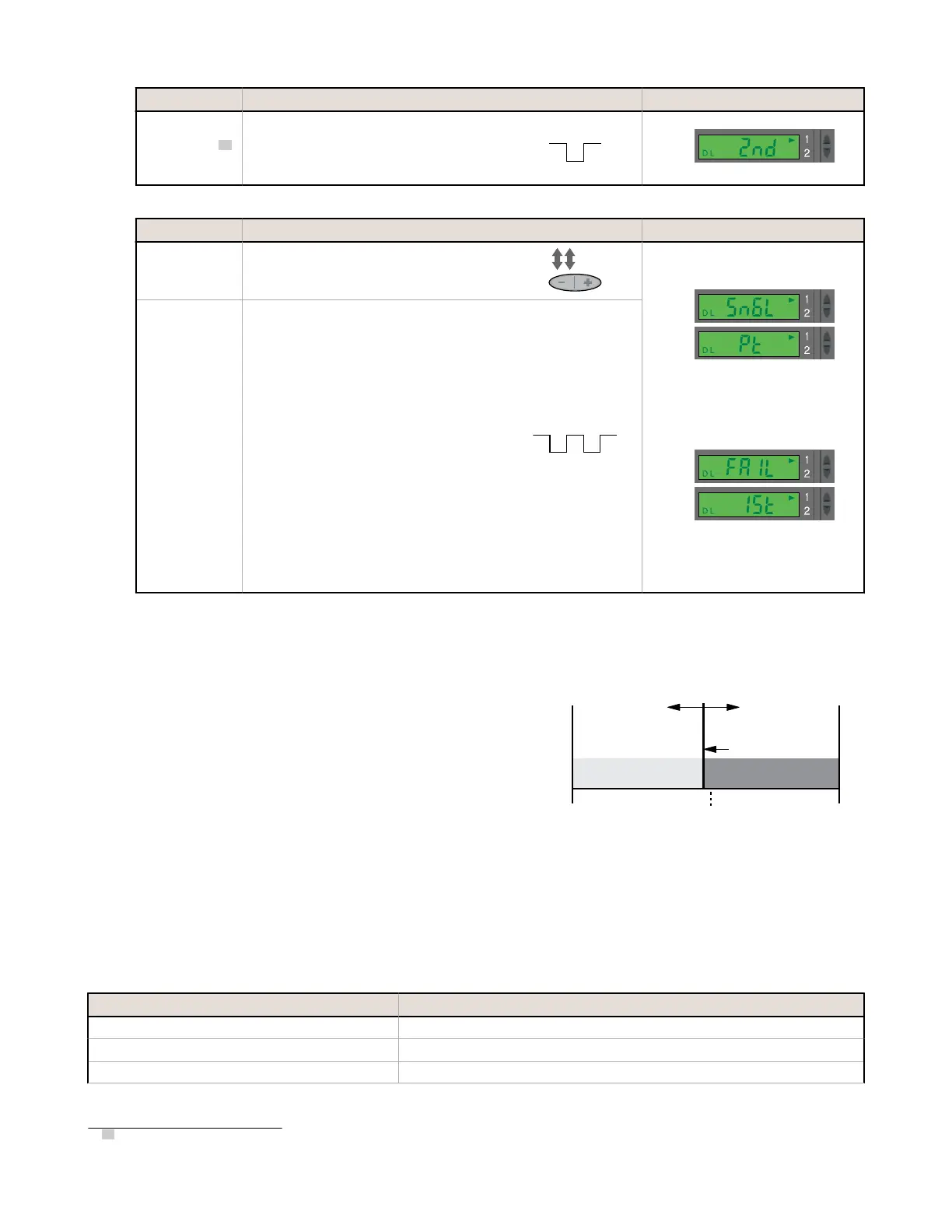

Method Action Result
Remote Input
12
a. Present the sensing condition.
b. Single-pulse the remote line.
T
• Display flashes “2nd”
• Arrow icon turns red
2. SET the sensing condition.
Method Action Result
Push Button
a. Present the sensing condition.
b. Double-click the Static button.
TEACH conditions accepted
• Display flashes “Sn6l,” then
"Pt" twice
• Sensor returns to RUN mode
with new settings
• Arrow icon turns green
TEACH conditions not accepted
• Display flashes “FAIL” and
returns to “1St”
• Arrow icon remains red
• After 60 seconds, the sensor
returns to RUN mode (the arrow
icon turns green) without
changing settings
Remote Input Double-pulse the remote line.
T T
T
Single-Point Light Set
• Sets a threshold slightly below the taught condition.
• Any condition darker than the threshold condition causes the
output to change state
• Threshold position is adjustable using the “+” and “-” buttons
(see Manual Adjust on page 10)
• Recommended for applications where only one condition is
known, for example a stable light background with varying
darker targets
A single sensing condition is presented, and the sensor positions a
threshold slightly below the presented condition. When a condition
darker than the threshold is sensed, the output either turns ON or OFF,
depending on the Light/Dark Operate setting (see Sensor Setup on
page 10).
Light SET and Light/Dark Operate Selection
Light Set teaches the Output OFF condition and forces the sensor into
Dark Operate (DO) mode. The sensor can be reconfigured to Light
Operate (LO) mode after the condition has been taught (see Sensor
Setup on page 10).
Threshold position
adjusted by
Manual Adjust
Sensor positions
threshold slightly below
the presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF
Output ON
Condition
Presented
Figure 7. Single-Point Light Set (Light Operate shown)
Mode
Threshold Offset (counts below taught signal value)
Super High-Speed 30
High-Speed 22
High-Power 9
12
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
– Dual Discrete Outputs
