Banner D10 Series User Manual

Mode Threshold Offset (counts below taught signal value)
Super High-Power 6

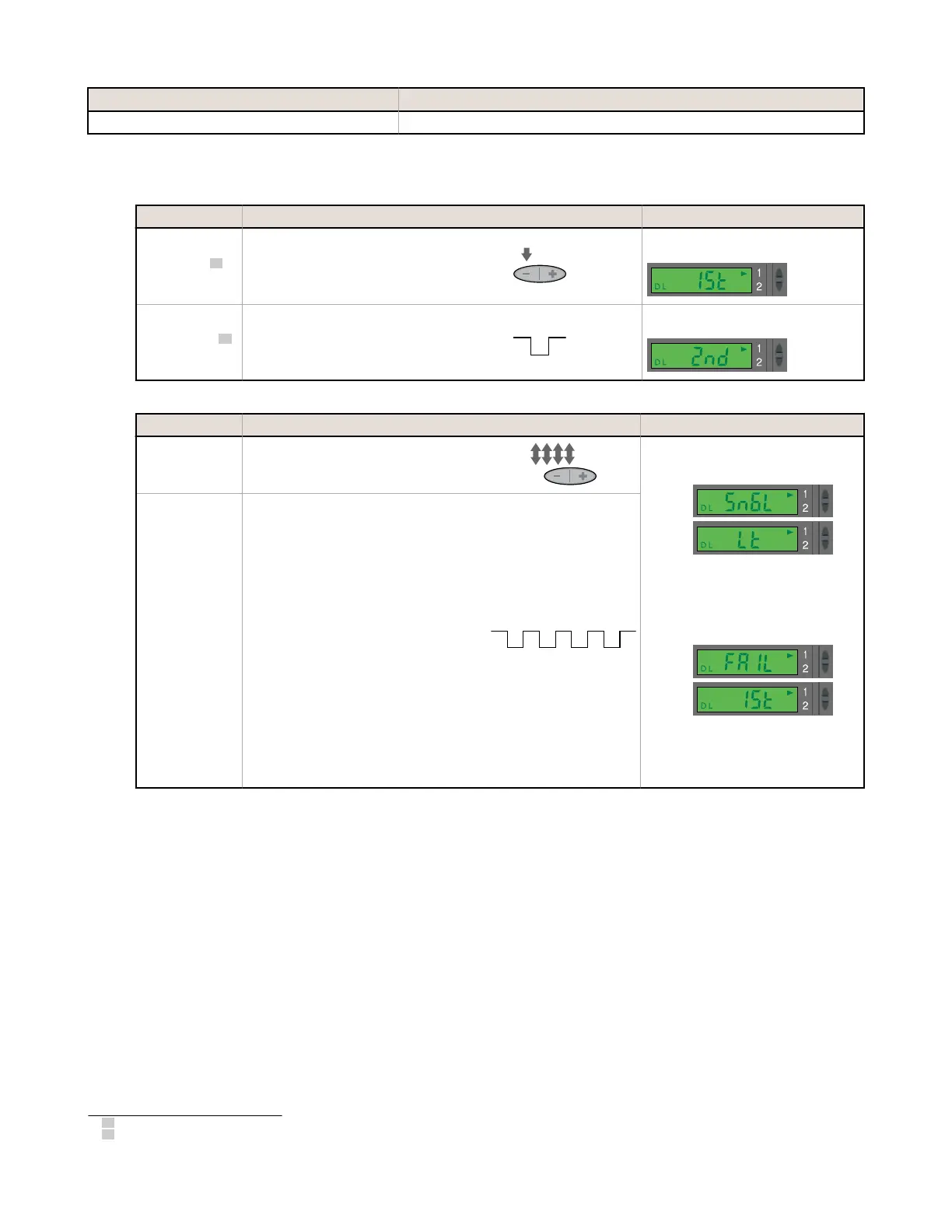

Figure 8. Light Set Threshold Offset
1. Access the SET Mode.
Method Action Result
Push Button
13
Press and hold the Static (-) button > 2 seconds.
• Display flashes “1St”
• Arrow icon turns red
Remote Input
14
Single-pulse the remote line.
T
• Display flashes “2nd”
• Arrow icon turns red
2. SET the Output OFF condition.
Method
Action Result
Push Button
a. Present the Output OFF condition.
b. Four-click the Static button.
Threshold condition accepted
• Display flashes “Sn6l,” then "Lt"
twice
• Sensor returns to RUN mode
with new settings
• Arrow icon turns green
Threshold conditions not accepted
• Display flashes “FAIL” and
returns to “1St”
• Arrow icon remains red
• After 60 seconds, the sensor
returns to RUN mode (the Arrow
icon turns green) without
changing settings
Remote Input
a. Present the Output OFF condition.
b. Four-pulse the remote line.
T T
T T T
T T
13
0.04 seconds ≤ "Click" ≤ 0.8 seconds
14
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
– Dual Discrete Outputs
8 www.bannerengineering.com - Tel: +1-763-544-3164 P/N 64154 Rev. G
