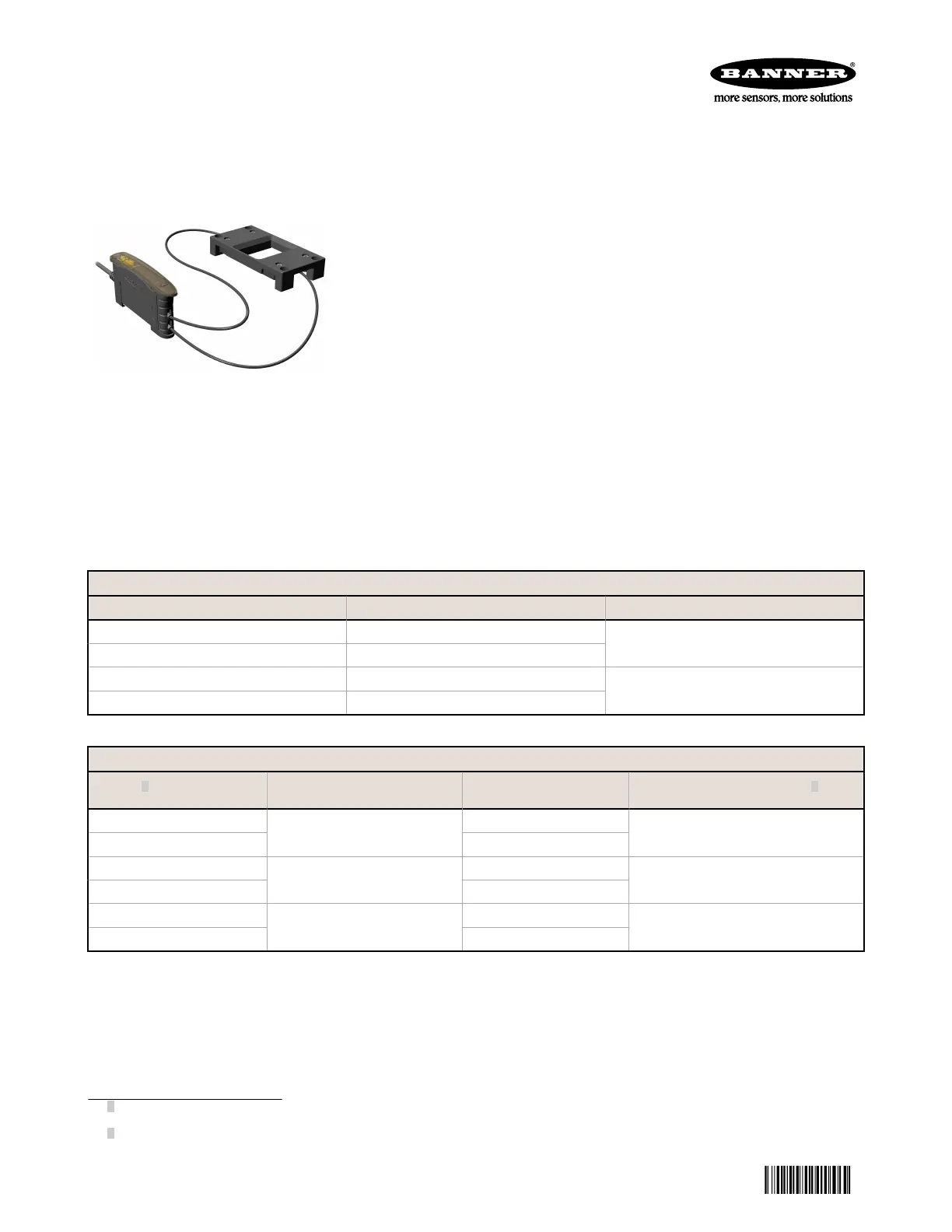

Datasheet
Advanced sensor for small object counting
• Easy-to-set selectable threshold with automatic compensation
algorithm
• Automatic compensation algorithm compensates for dust or
contamination on the fiber optic array and for ambient temperature
changes
• 16-bit microcontroller and 12-bit Analog-to-Digital converter (ADC) for
high-performance, low-contrast sensing
• Easy-to-read 4-digit display for Health Mode, Percentage Blocked,
Signal Level, or Counter Mode readout, plus indicators for a continuous
readout of operating status (user configurable)
• Sleek, ultra-slim 10 mm housing, mounts to a standard 35 mm DIN rail
• Single discrete output plus Health Mode output to indicate preventative
maintenance is required
• Three-mode power and speed selection to optimize detection reliability
• Dynamic event stretcher to ensure one output per event — especially
for gel-cap style pills
• Visible red (680 nm) sensing beam
• Models available with 2 m or 9 m (6.5 ft or 30 ft) cable or integral Pico-
style quick-disconnect
Sensors
Models Cables Discrete Outputs
D10DNCFP 2 m (6.5 ft) Cable NPN
D10DNCFPQ 6-pin Pico-style QD
D10DPCFP 2 m (6.5 ft) Cable PNP
D10DPCFPQ 6-pin Pico-style QD
Fiber Optic Arrays
Models
1
Detection Window
Dimensions
Fiber Exit Minimum Object Size
2
PFCVA-10X25-S
10 mm x 25 mm
Side exit
1.5 mm
PFCVA-10X25-E End exit
PFCVA-25X25-S
25 mm x 25 mm
Side exit
3 mm
PFCVA-25X25-E End exit
PFCVA-34X25-S
34 mm x 25 mm
Side exit
4 mm
PFCVA-34X25-E End exit
To order the 9 m (30 ft) cable model, add suffix "W/30" to the cabled model number. For example: D10DNCFP W/30.
Models with a QD connector require a mating cable.
1
Custom fiber arrays and mounting configurations are possible. Consult factory for assistance with your small object counting
application.
2
With 2% threshold offset percentage
D10 Expert Series - Small Object Counter
Original Document
146132 Rev. D
29 August 2014
