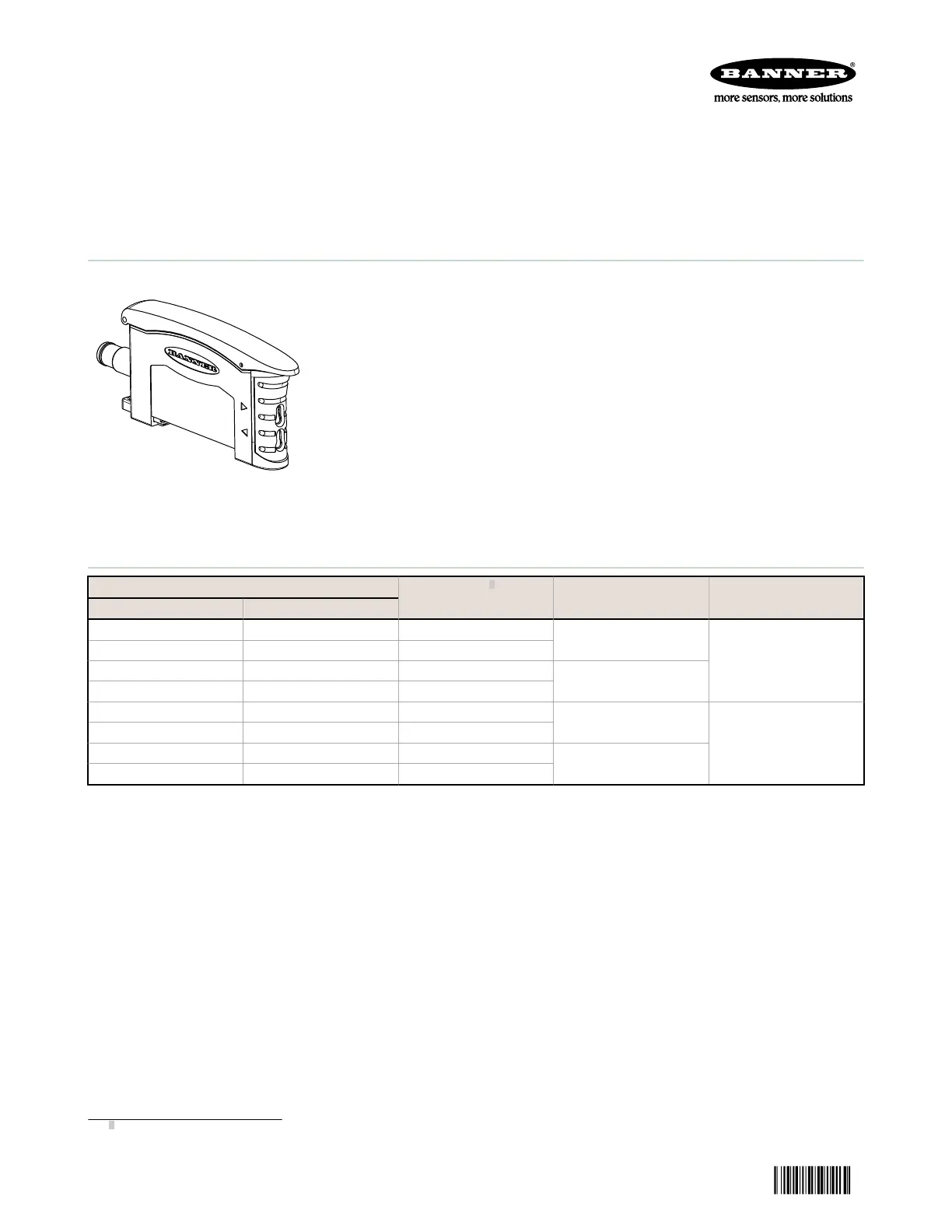

Datasheet
Advanced Sensor for use with Plastic Fiber Optics
To view or download the latest technical information about this product, including specifications, dimensions, accessories, and wiring, see
http://www.bannerengineering.com.
Features
• Easy-to-set automatic Expert-style TEACH options* including static, dynamic, and single-
point programming plus manual adjustment for fine-tuning
• 16-bit microcontroller and 12-bit Analog-to-Digital converter for high-performance, low-
contrast sensing
• Easy-to-read 4-digit display for TEACH and signal strength readout, plus indicators for a
continuous readout of operating status (user configurable)
• Models available with one scalable Analog output (4 to 20 mA or 0 to 10V) and one
Discrete output (PNP or NPN)
• Four-mode power and speed selection with automatic cross-talk avoidance circuitry
• Selectable OFF-delay options
• Gate input wire can be used to selectively inhibit sensor outputs from switching
• Models available with visible red (680 nm) or visible green (525 nm) sensing beam
• Models available with 2 m or 9 m (6.5 ft or 30 ft) cable or integral Pico-style quick-
disconnect
• Sleek, ultra-slim 10 mm housing, mounts to a standard 35 mm DIN rail
* U.S. Patent #5,808,296
Models
Models Cables
1
Discrete Outputs Analog Output
Red Beam Green Beam
D10INFP D10INFPG 2 m (6.5 ft) Cable
NPN
4 to 20 mA
D10INFPQ D10INFPGQ 6-pin Pico-style QD
D10IPFP D10IPFPG 2 m (6.5 ft) Cable
PNP
D10IPFPQ D10IPFPGQ 6-pin Pico-style QD
D10UNFP D10UNFPG 2 m (6.5 ft) Cable
NPN
0 to 10V
D10UNFPQ D10UNFPGQ 6-pin Pico-style QD
D10UPFP D10UPFPG 2 m (6.5 ft) Cable
PNP
D10UPFPQ D10UPFPGQ 6-pin Pico-style QD
1
To order the 9 m (30 ft) cable model, add the suffix "W/30" to the cabled model number. For example, D10xFP W/30. Models with a quick disconnect require a mating
cordset. See Accessories.
D10 Expert
™
- Analog and Discrete Outputs
Original Document
65448 Rev. G
26 August 2016
