Single-Point Light Set
• Sets a threshold 6.25% below the taught condition.
• Any condition darker than the threshold condition causes the
output to change state
• Threshold position is adjustable using the “+” and “-” buttons
(see Manual Adjust on page 8)
• Recommended for applications where only one condition is
known, for example a stable light background with varying
darker targets
A single sensing condition is presented, and the sensor positions a
threshold 6.25% below the presented condition. When a condition
darker than the threshold is sensed, the output either turns ON or OFF,
depending on the Light/Dark Operate setting (see Setup Mode on page
8).
Light SET and Light/Dark Operate Selection
In Light Operate mode, Light Set teaches the Output ON condition. In
Dark Operate mode, Light Set teaches the Output OFF condition.
Output OFF
Darkest
(no signal)
Most Light
(saturated
signal)
Output ON
Condition
Presented
Threshold position
adjusted by
Manual Adjust
Sensor positions the
threshold slightly below
the presented condition

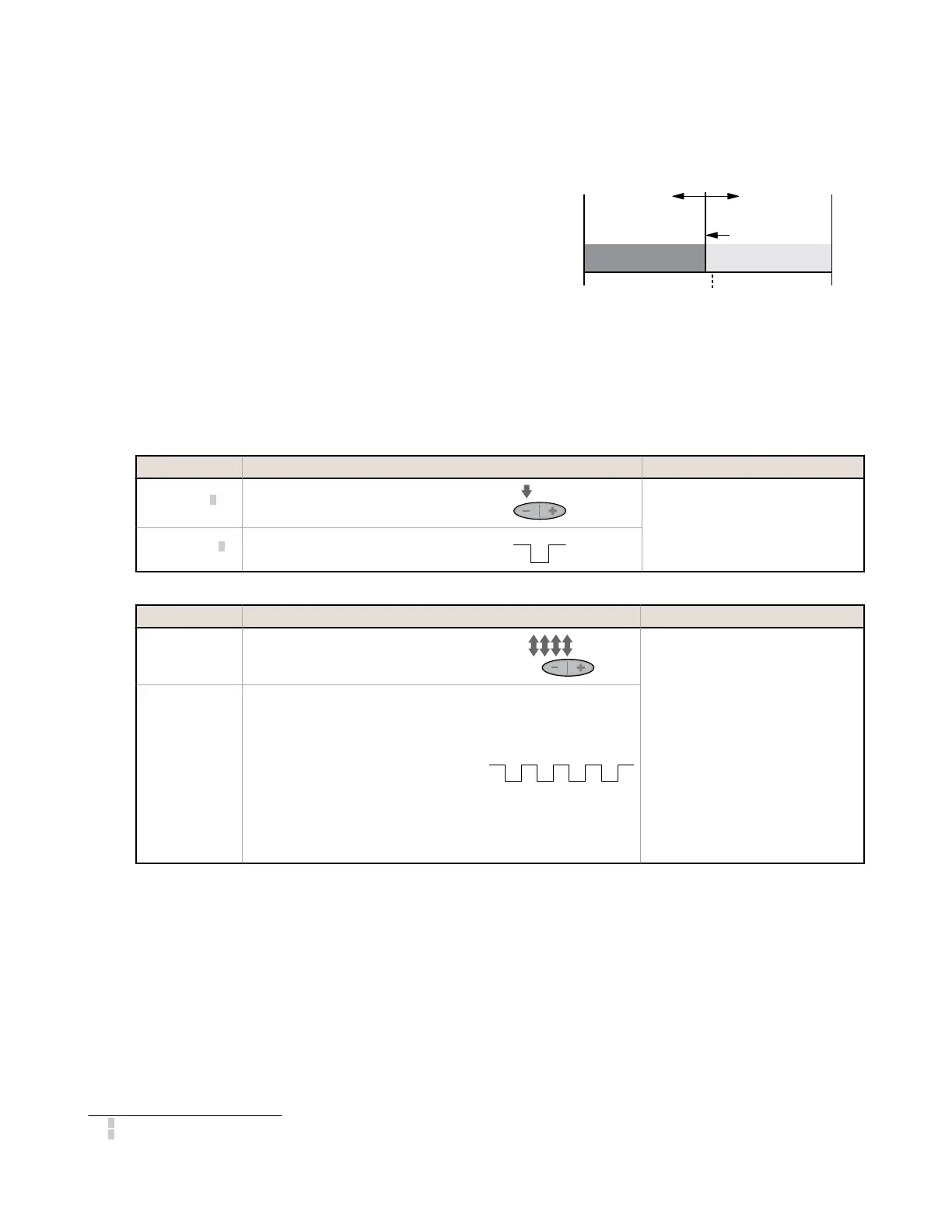

Figure 5. Single-Point Light Set (Light Operate shown)
1. Access the SET Mode.
Method
Action Result
Push Button
8
Press and hold the Static button > 2 seconds.
• Power LED: OFF
• Output LED: ON (push button)
• OFF (remote line)
• Static LEDs: LO & DO
alternately flash
Remote Input
9
Single-pulse the remote line.
T
2. SET the sensing condition.
Method
Action Result
Push Button
a. Present the sensing condition.
b. Four-click the Static push button.
Threshold condition accepted
• Power LED: ON
• Output LED: ON (push button)
• OFF (remote line)
• Bar graph: 4 indicators flash
together
Sensor returns to Run mode with the new
settings.
Threshold condition not accepted
• Power LED: ON
• Output LED: ON (push button)
• OFF (remote line)
• Bar graph: #1, 3, 5, 7
alternately flash to show failure
Sensor returns to the "SET Sensing
Condition".
Remote Input
a. Present the sensing condition.
b. Four-pulse the remote line.
T T
T T T
T T
8
0.04 seconds ≤ "Click" ≤ 0.8 seconds
9
0.04 seconds ≤ T ≤ 0.8 seconds
