Banner D10 Series User Manual

Single-Point Window Set
• Sets a single ON condition that extends 12.5% above and below the taught condition
• All other conditions (lighter or darker) result in OFF output
• Sensing window size (sensitivity) is adjustable using “+” and “-” buttons (see Manual Adjust on page 8)
Window Set is most useful when a product may not always appear in
the same place, or when other signals may appear. Window Set
designates a sensing window, with the Output ON condition inside
the window, and the Output OFF conditions outside the window. The
sensor accepts a single sensing condition, and adds switching
thresholds above and below that condition to create a sensing
window. Output ON and OFF conditions can be reversed by changing
Light/Dark Operate status in Setup mode.
Window Set and Manual Adjust
Using Manual Adjust with Window Set expands or contracts the size
of the window. The lighted LEDs on the light bar separate to a
greater or lesser extent to exhibit the relative sensing window size.
Sensor positions
window thresholds
12.5% from the
presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Condition
Presented
Sensing window size
adjusted by
Manual Adjust
Output OFF Output OFFOutput ON

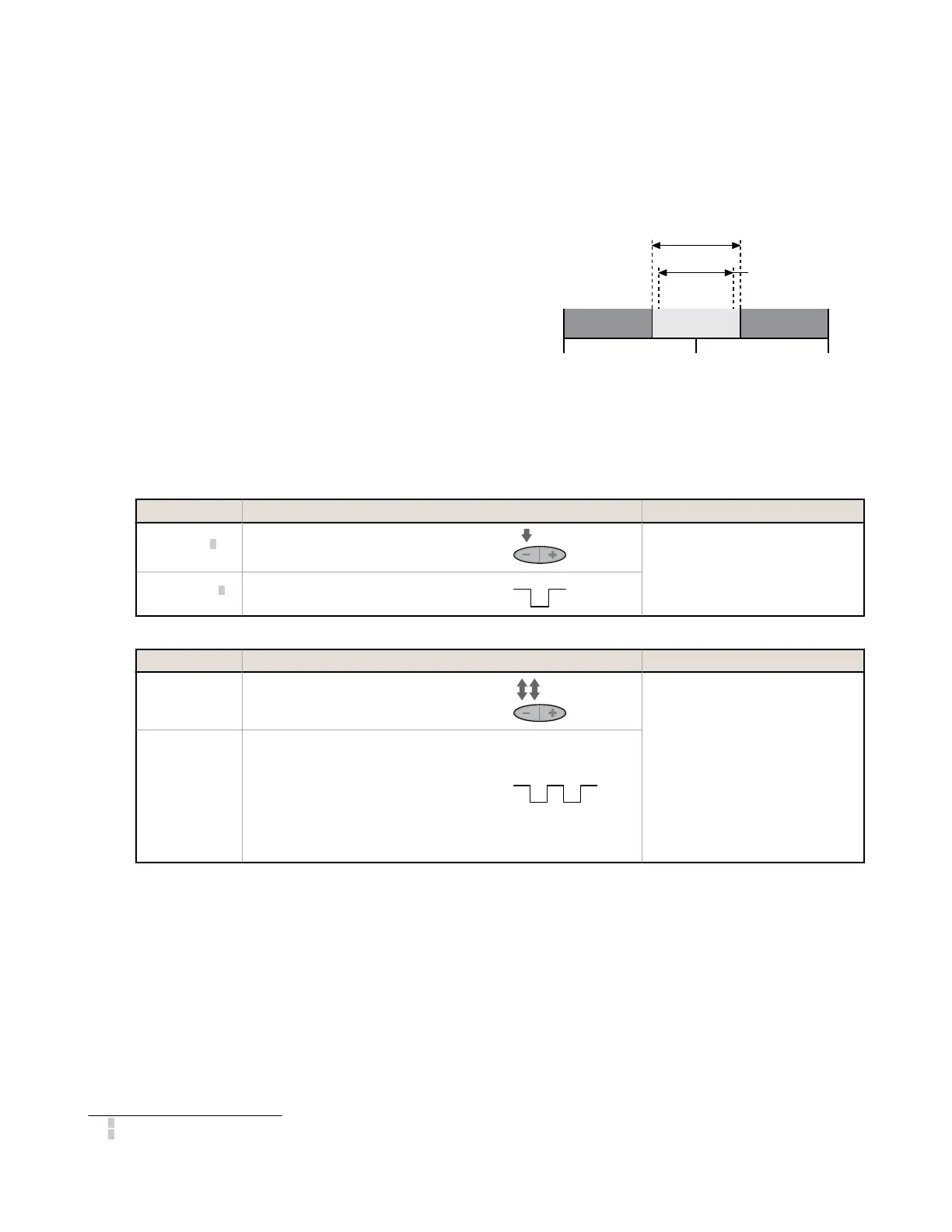

Figure 4. Single-Point Window SET (Light Operate
shown)
1. Access the SET Mode.
Method
Action Result
Push Button
6
Press and hold the Static button > 2 seconds.
• Power LED: OFF
• Output LED: ON (Push Button)
• Output LED: OFF (Remote)
• Status LEDs: LO & DO flash
alternately
Remote Input
7
Single-pulse the remote line.
T
2. SET the sensing condition.
Method
Action Result
Push Button
a. Present the sensing condition.
b. Double-click the Static button.
Window Accepted
• Power LED: ON
• Bar graph: 2 indicators flash
together to show Window
accepted
Sensor returns to Run mode with the new
settings.
Window Not Accepted
• Power LED: OFF
• Bar graph: #1, 3, 5, 7 flash to
show failure
Sensor returns to the "SET Sensing
condition".
Remote Input
a. Present sensing the condition.
b. Double-pulse the remote line.
T T
T
6
0.04 seconds ≤ "Click" ≤ 0.8 seconds
7
0.04 seconds ≤ T ≤ 0.8 seconds
D10 Expert
™
Series with Bar Graph Display and Discrete Output
P/N 117830 Rev. G www.bannerengineering.com - Tel: +1-763-544-3164 5
