Page 14

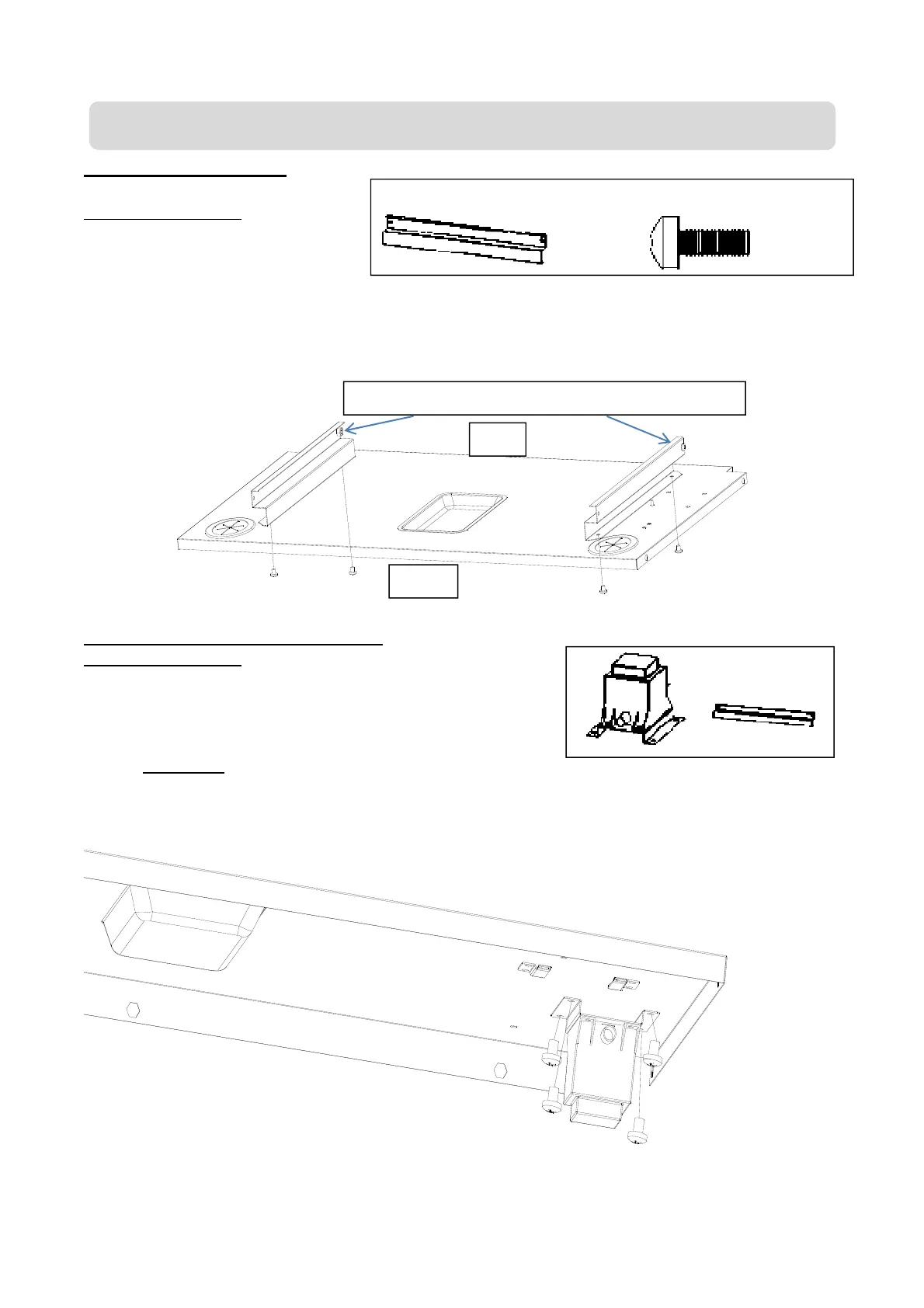

STEP 1 (ALL MODELS): Position the Grease Channeling Tray Support Brackets.
WHAT YOU NEED
Two Grease Channeling Tray
Support Brackets
Four M4*8mm Screws
Screw the left and rights Grease Channeling Tray Support Brackets to the Separator
Panel. Make sure the pre-fitted stopper nuts are at the top back inner positions as shown
below. Tighten the screws firmly.
STEP 2 (DELUXE MODELS ONLY): Fit the transformer
WHAT YOU NEED
One Transformer with Integral Bracket.
Four M4*8mm Screws
Locate the Transformer into place on
the underside of the top panel as shown below
and lock into place with four M4*8mm screws.
Note the stopper nuts inwards upper positions
Grease Channeling Tray Bracket Four M4*8mm Screws
Back
Front
Assembly instructions (continued)
