Page 17

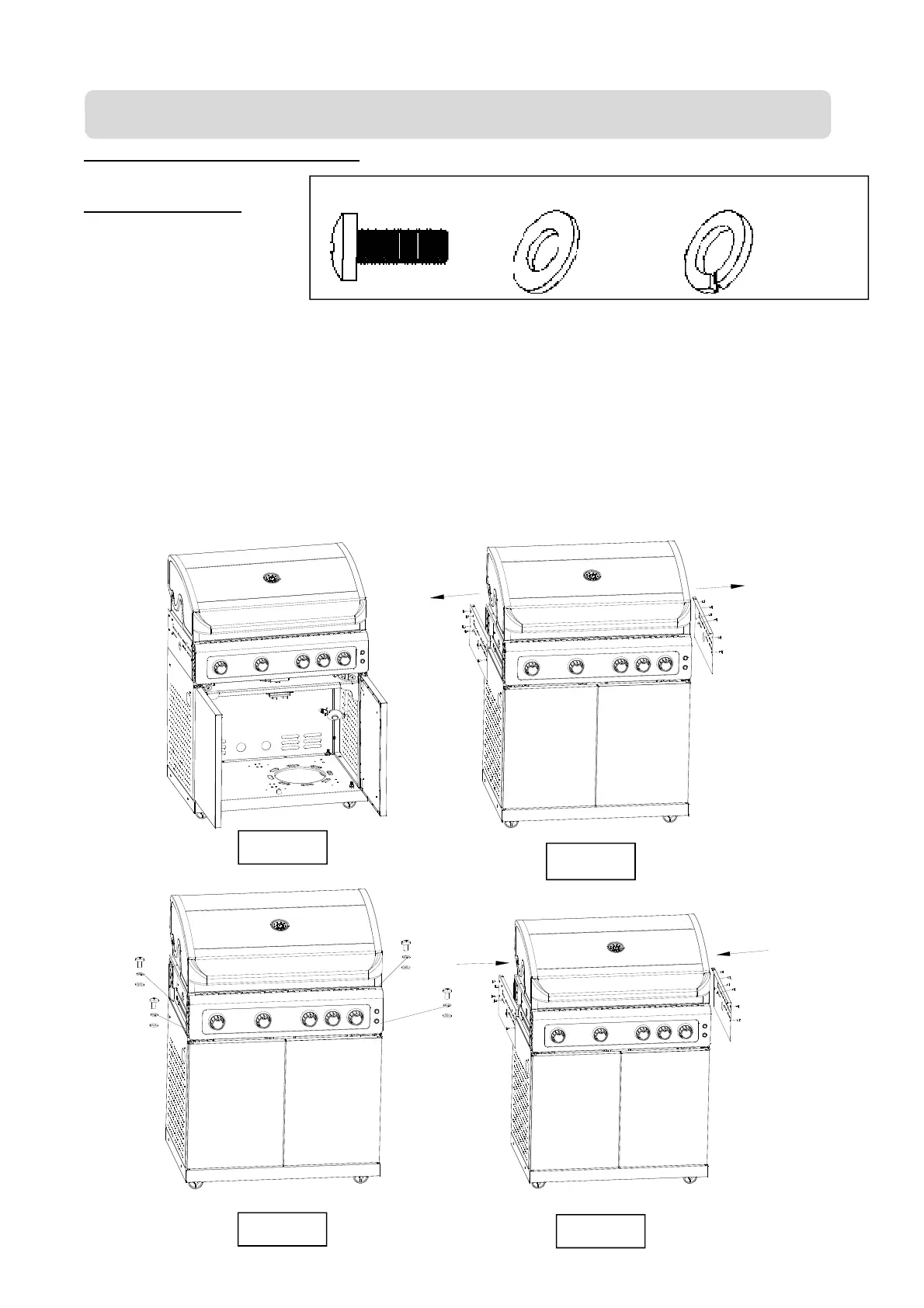

STEP 5 (CART MODELS ONLY): Fix the firebox and hood assembly onto the cart.
WHAT YOU NEED
Four M6*16mm Screws
Four Spring Washers
Four M6 Washers
(a) With help, carefully position the firebox and hood assembly onto the cart. As it is
lowered into place, the gas hose and regulator (and the electrical leads for deluxe
models) will need to be carefully threaded through the rubber grommet access hole in
the cart top panel.
(b) Remove the firebox side panels as shown, and keep aside the twelve removed
screws and the side panels for use in part (d).
(c) Fit and firmly tighten the four M6*16mm Screws, Spring Washers and Washers as
shown below, so that the head is fixed to the cart. The spring washer fits against the
screw head. The M6 washer fits against the firebox.
(d) Replace the firebox side panels, fit and firmly tighten the twelve screws from part (a).
STEP 3a
STEP 3b
STEP 3c
STEP 3d
Four M6*16mm Screws Four M6 Washers Four Spring Washers
Assembly instructions (continued)
