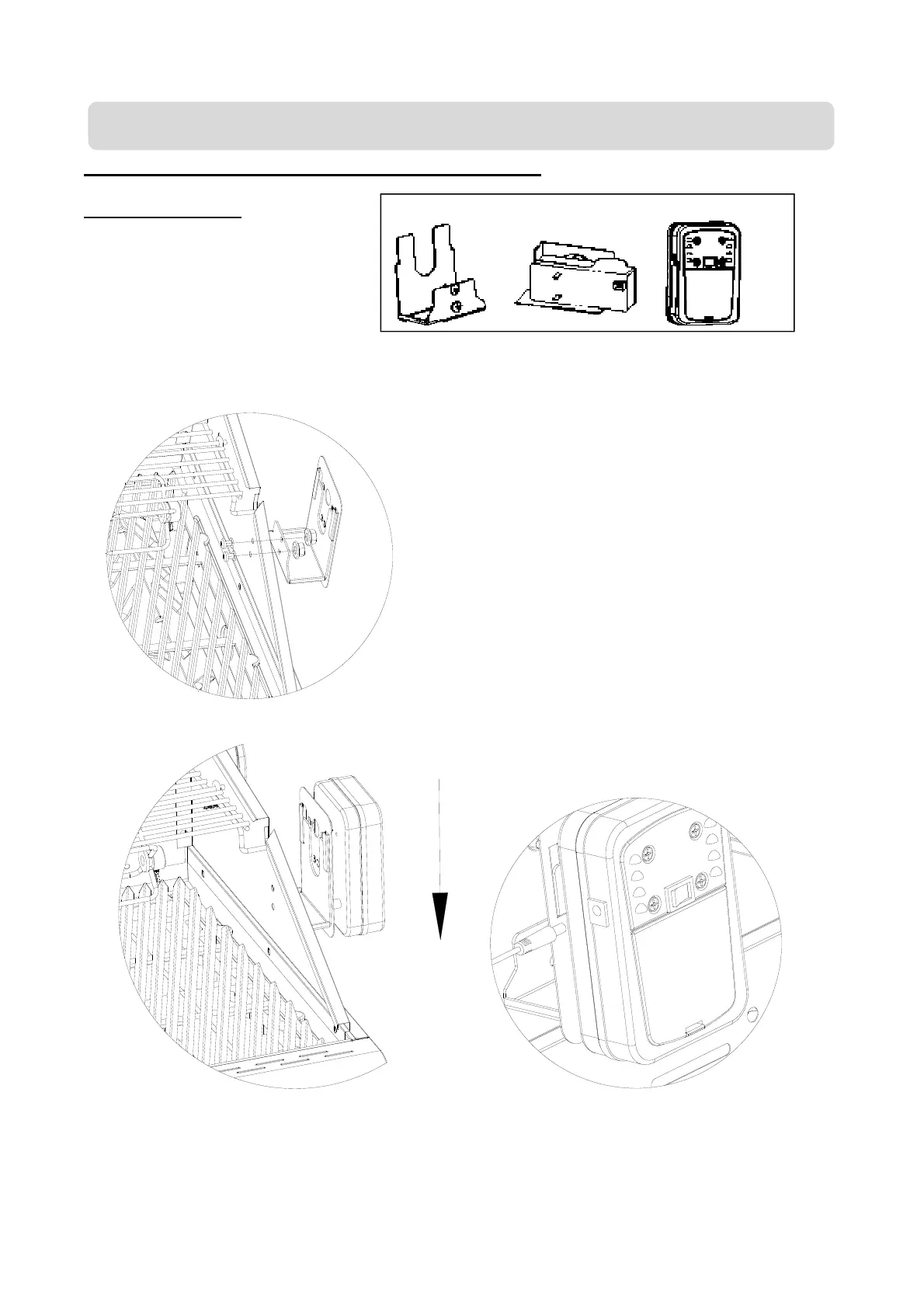

STEP 14 (FOR DELUXE MODELS 4B AND 6B ONLY): Attach the rotisserie
WHAT YOU NEED
One Motor Bracket
One Motor 240V Adaptor
One DC Motor
(a) Fit the motor bracket
Remove the two M6*15mm screws, washers and hex nuts that come pre-assembled
with the motor bracket.Use them to assemble the
Motor Bracket
to the right wind
shield by using as shown.
(b) Attach the motor
(c) The DC Motor can be powered with two D-Cell batteries (not included), otherwise,
remove the batteries and connect the Motor 240V Adaptor to the motor. Follow all
safety precautions with the adaptor to keep it safe and dry and away from hot
surfaces. Use only outdoor power extension cords and safe circuits.
Assembly instructions (continued)
