Page 27
STEP 16: SHARING GAS SUPPLY BETWEEN ADJACENT MODULES:
ALL Beefmaster V-Series gas modules have independent gas supply, but it is
possible if required for only these combinations of maximum two adjacent joined
modules from the same gas supply:
2B and adjacent 2B can run from the same gas supply.
2B and adjacent 4B can run from the same gas supply.
2B and adjacent Range can run from the same gas supply.
One side burner attached to any of these combinations is allowable.
WARNING: ANY OTHER COMBINATIONS OR EXTENDED COMBINATIONS MAY
NOT BE SAFE. CHECK WITH YOUR GASFITTER FOR DETAILS. ONE GAS SUPPLY,
HOSE AND REGULATOR ASSEMBLY MUST STILL BE USED FOR INDIVIDUAL
MODULES.

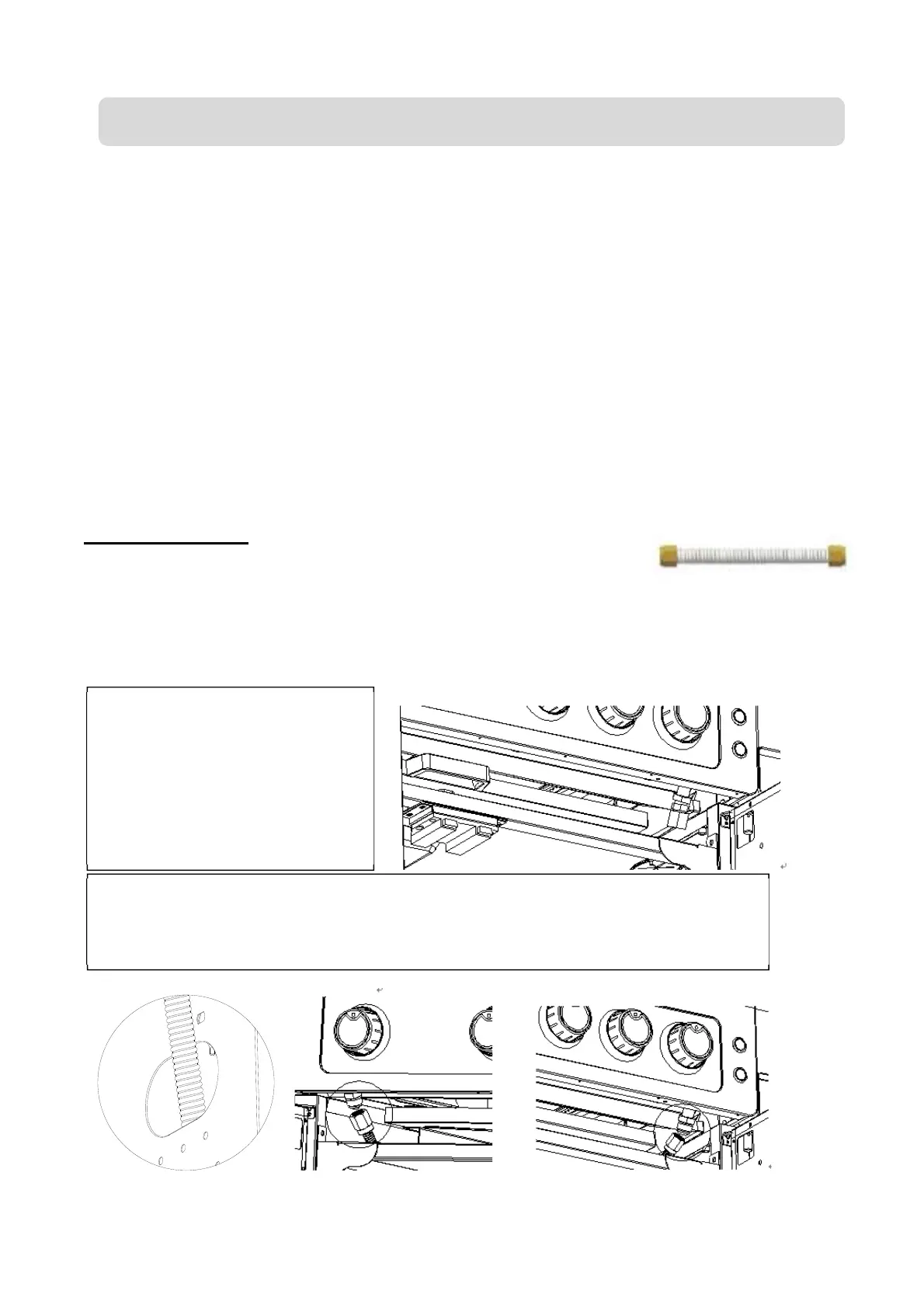

Adjacent (e.g. 2B + 4B) shared gas supply assembly:
WHAT YOU NEED:
One separately supplied corrugated gas pipe (code CBGASEXT).
Take out the grease channeling trays. Using two spanners (one to hold the
manifold, one to turn the cap), disconnect the gas tube cap from the left manifold side of the
right side bbq. Using two spanners, (one to hold the manifold, one to turn the nut), disconnect
the hose and regulator from the right manifold side of the left side bbq.
(a) Remove the grease channeling
tray and use two spanners to
disconnect the cap from the
manifold outlet (use one spanner
to hold the manifold the other to
loosen the cap).
(b) Thread the corrugated gas pipe between the two bbqs as shown. Tighten the pipe
connections to each barbeque using two spanners. Perform a leak test as outlined in
following section under “Safety leak testing”. You will need to bend the pipe a little to help
guide it into place.
Assembly instructions (continued)
